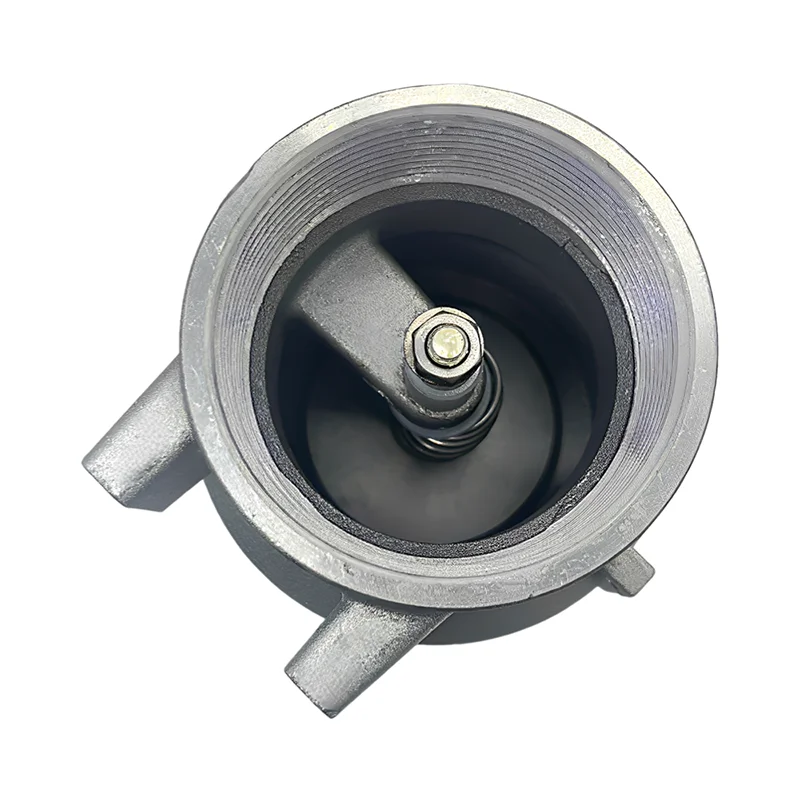

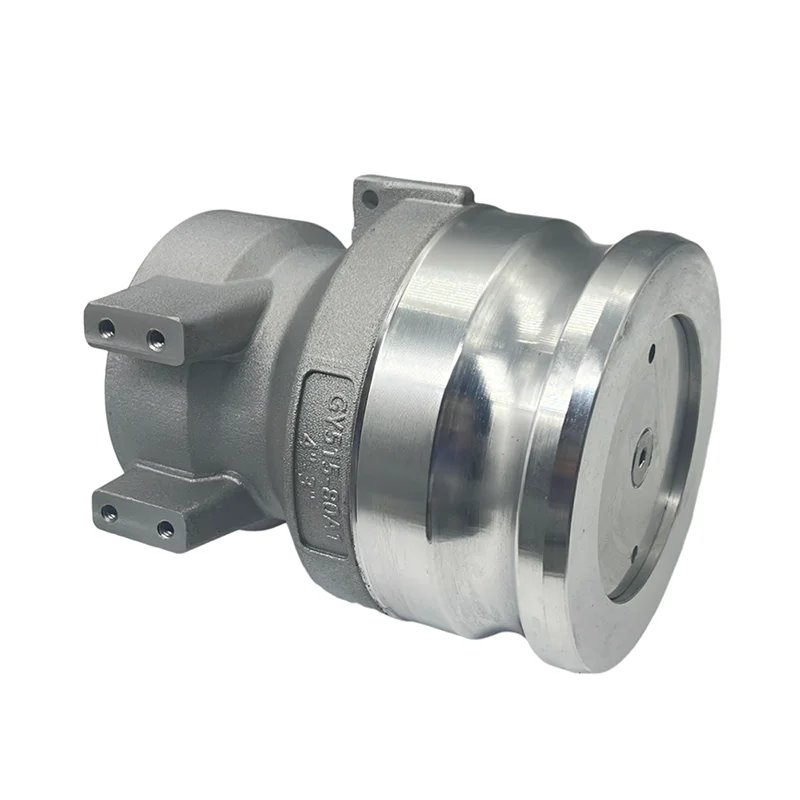

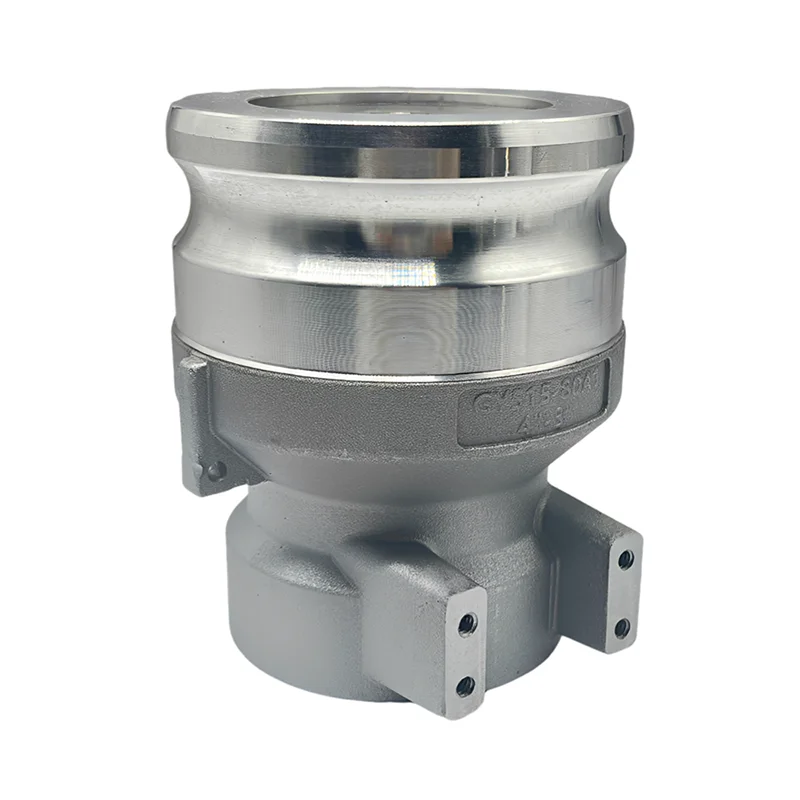

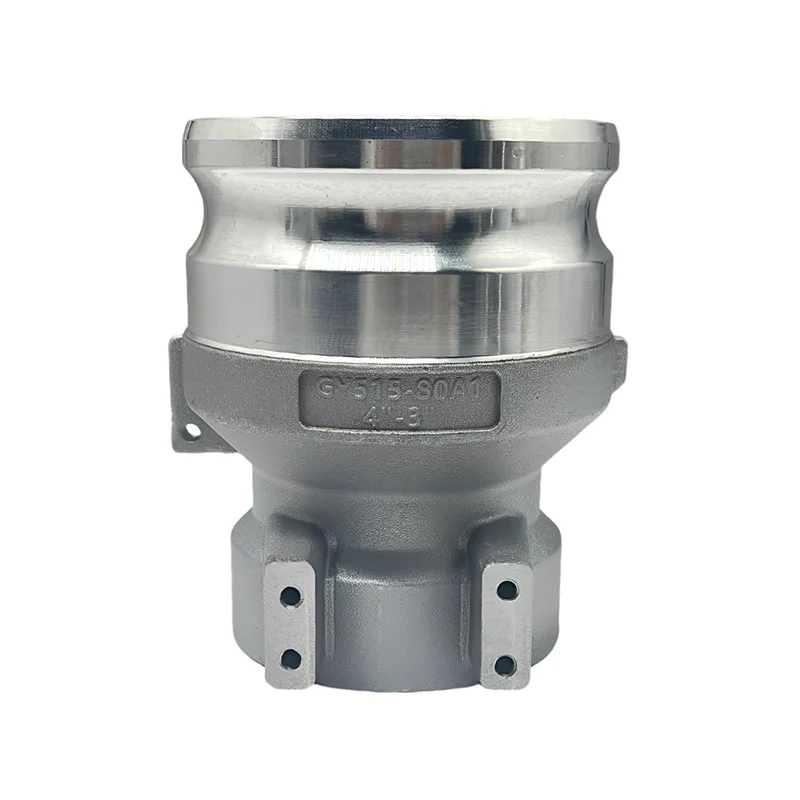

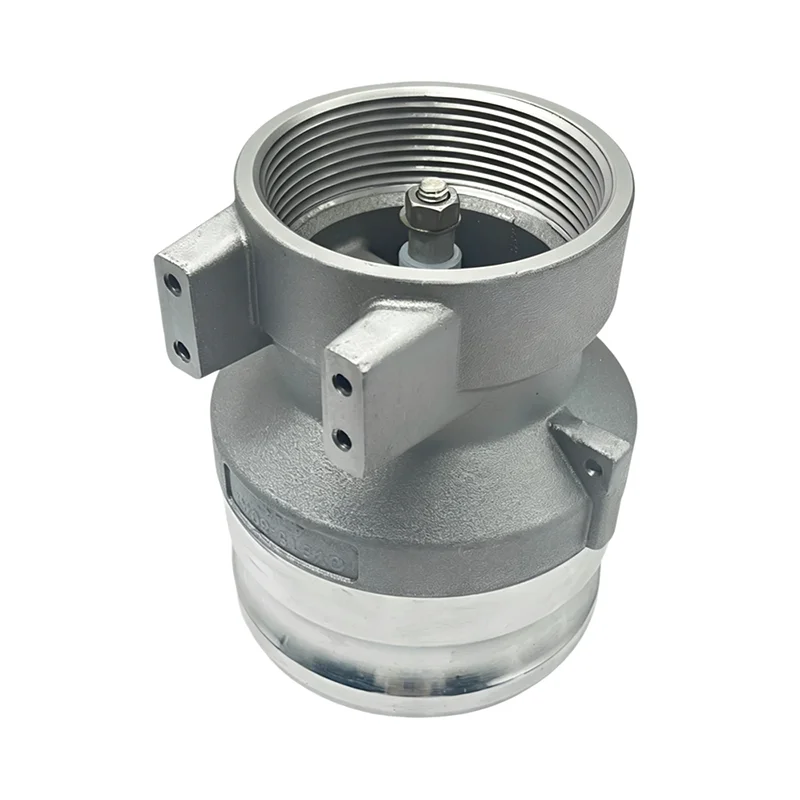

DESEINOR valved vapor recovery adapter traps gas vapor & condensed liquid to cut atmospheric emissions. Built-in pneumatic valve works at 0.4-0.8MPa air pressure, available in flange and thread connection styles for fuel pipeline systems.
DESEINOR vapor recovery series valved vapor recovery adapter can contain gas vapor and condensed liquid within the pipeline, minimizing exposure and vapor emission to the atmosphere. Equipped with a pneumatic control valve assembly, it operates at an air supply pressure of 0.4~0.8MPa and supports two connection types: flange and thread.
Product Name | Vapor recovery Joint | Application | Fuel Tanker Vapor Recovery Device |
Model Number | GY515-80A1 | Nominal Pressure | 0.4~0.8Mpa |
Material | Aluminum | Sealing Material | FKM |
Nominal Diameter | 4inch-3inch | Working Temperature | -40℃~+70℃ |
Brand Name | DESEINOR | Installation Method | Thread Connection |
Place of Origin | China | MOQ | 10PCS |
Packing Size | |||
L*W*H(CM) | 31.5*38*22 | ||
QTY/CTN | 10PCS/CTN | ||
N.W(KGS) | 15KGS | ||
