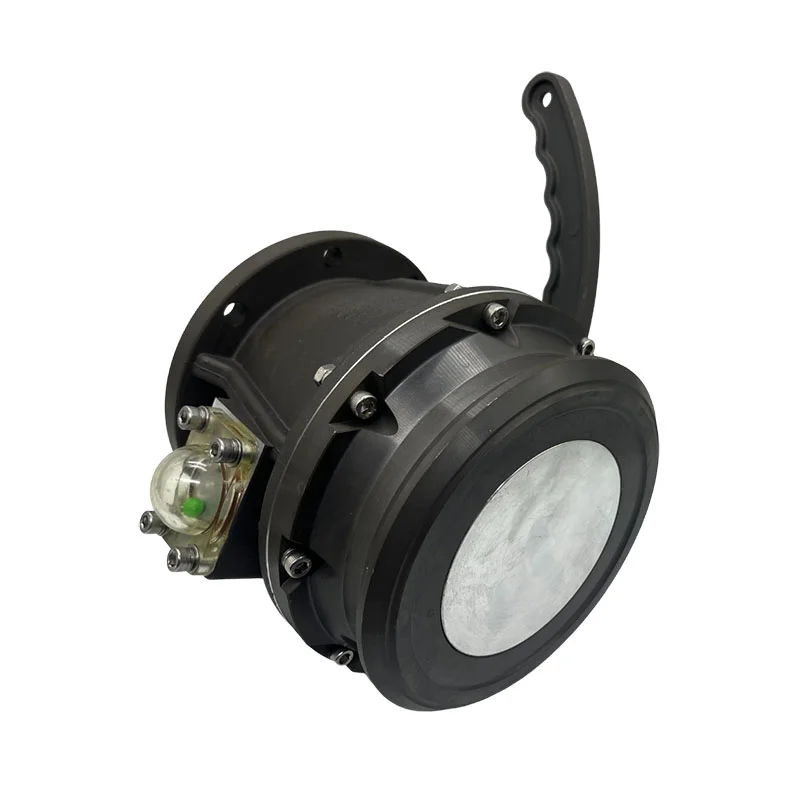

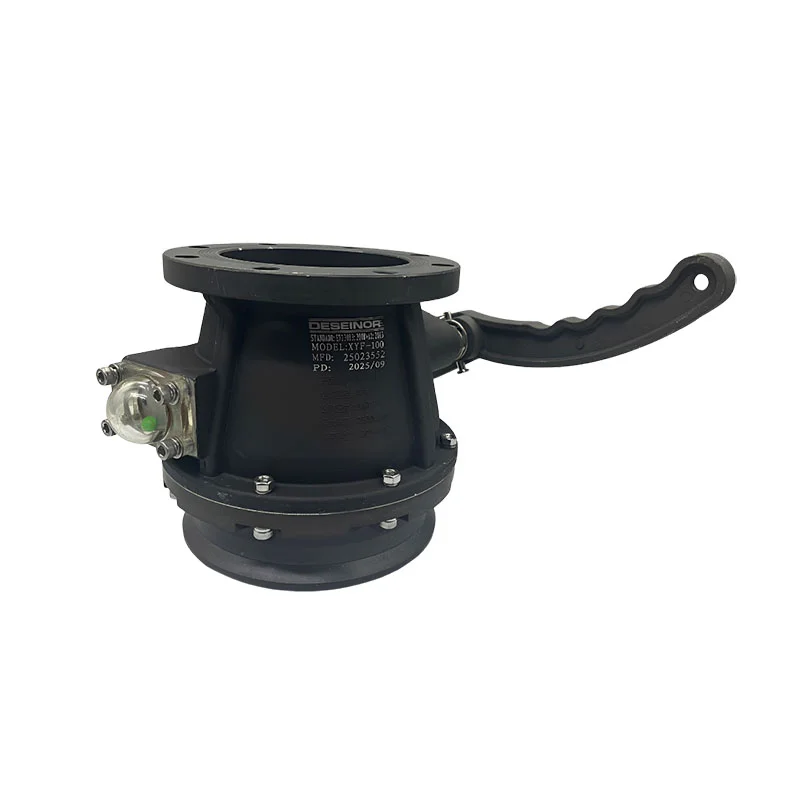

XYF-100 API Adaptor Valve

XYF-100 API Adaptor Valve

DESEINOR-manufactured API adapters are installed on road tank trucks, supporting fueling at loading

ISO 9001
CE
UL
SGS
PCEC
IECEX ATEX
PDF

Product Overview

DESEINOR-manufactured API adapters are installed on road tank trucks, supporting fueling at loading racks and unloading via hoses at service stations. Critical for any API bottom-loading system, these API adapters are meticulously designed and produced to match standard API couplers. Their durability makes them an ideal choice for oil giants and petroleum product transportation worldwide to meet specific requirements and conditions. DESEINOR's API adapters are designed to make transfer simple, safe, and efficient. The design features a lightweight one-piece aluminum body and a hard anodized nose ring, having become the standard adapter for many large global oil companies. The simple structure and high-quality components allow operators to use the product for many years with minimal maintenance to maintain optimal working condition. The entire series also has a flat-bottom design to ensure complete product discharge without contamination.

Technical Parameters

Product Name

 API Adaptor Valve

Application

Tank Truck Accessaries Device

Model Number

XYF-100(1)

Nominal Pressure

0.6MPa

Material

Aluminum alloy

Sealing Material

FKM/PTFE

Nominal Diameter

 4 Inch

Working Temperature

-40℃~+70℃

Brand Name

DESEINOR

Installation Method

Flange Connection

Place of Origin

China

Approval Standards

EU ADR

Packing

Carton

Relative Standard



API-1004

Packing Size

L*W*H(CM)

55*55*24

QTY/CTN

4PCS/CTN

N.W(KGS)

23KGS
