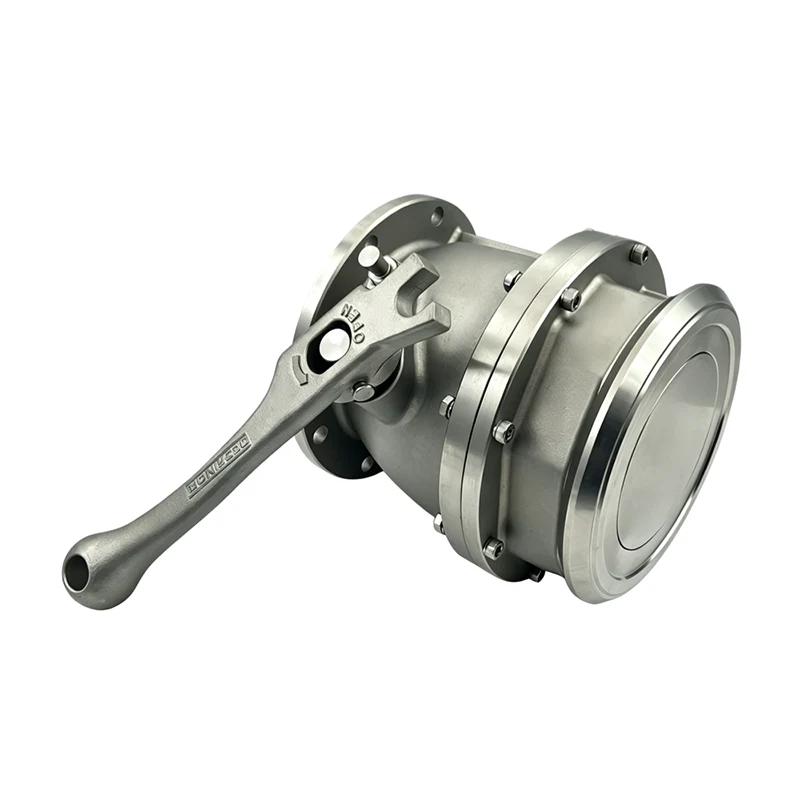

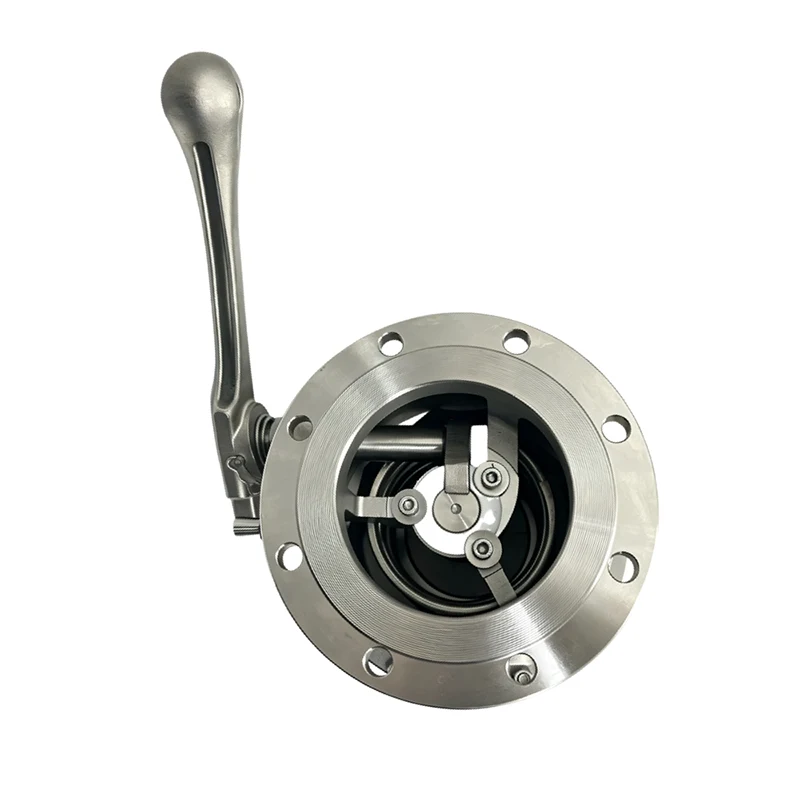

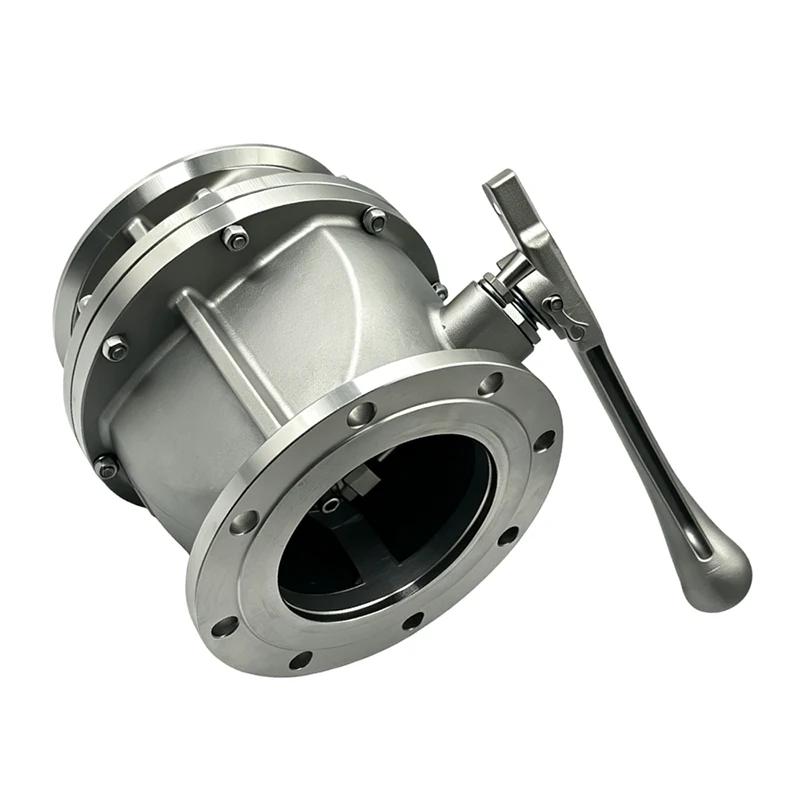

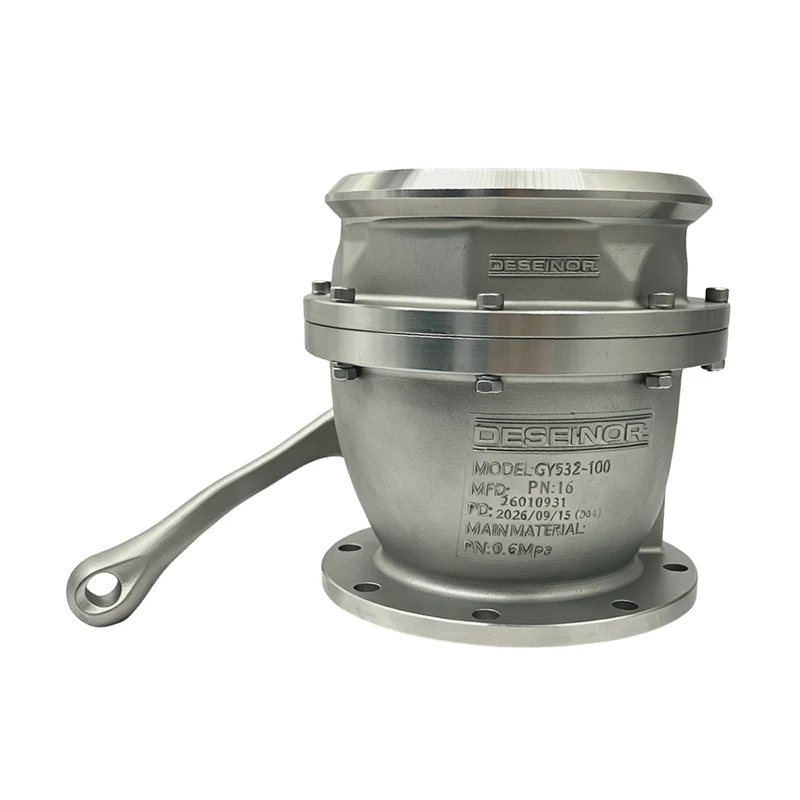

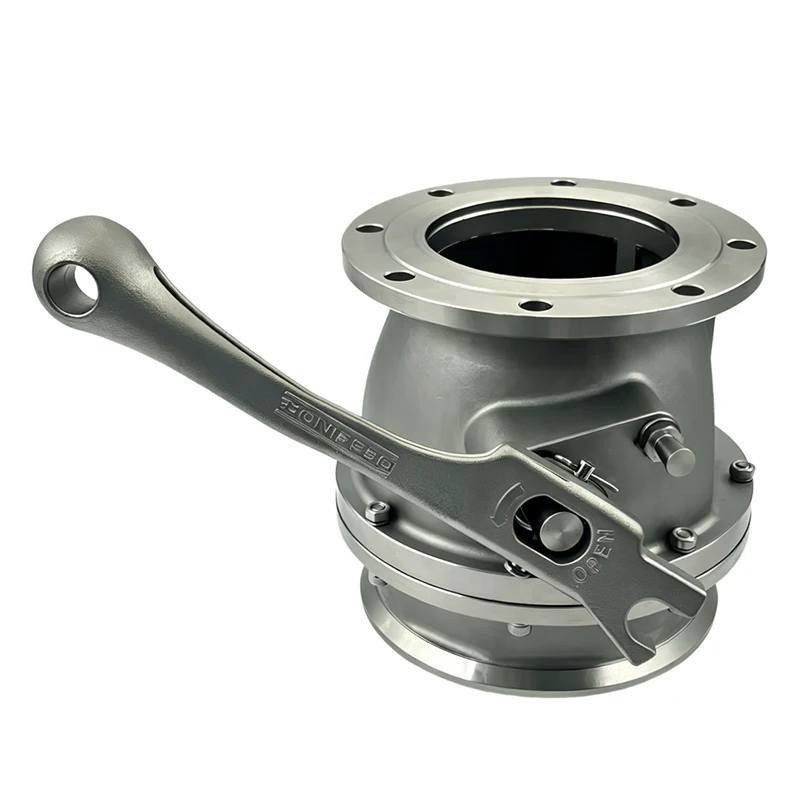

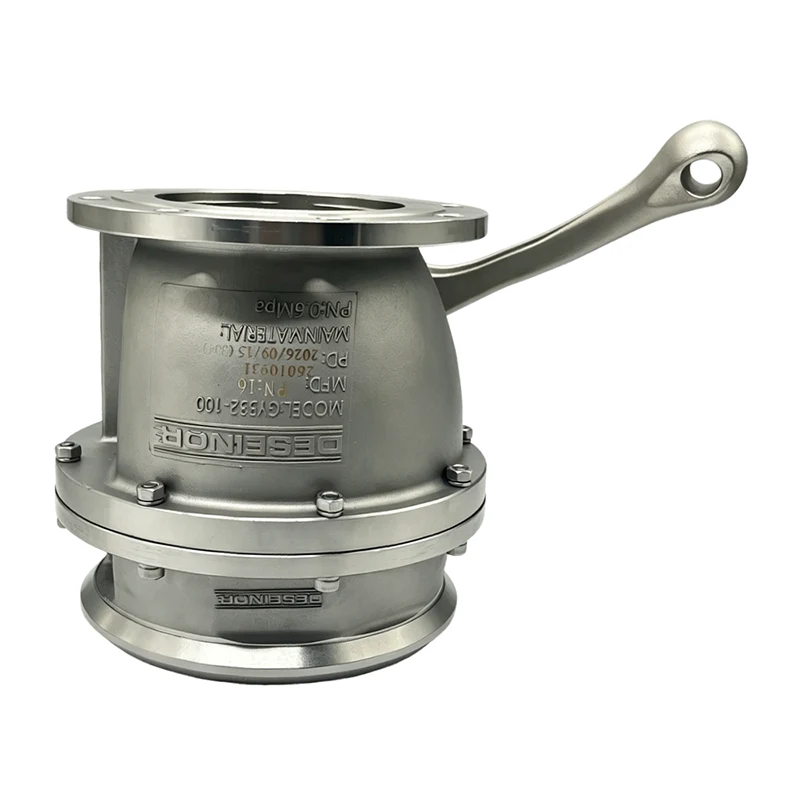

DESEINOR stainless steel API adapters for road tank trucks, used for fuel bottom loading and unloading. With 304L/316L stainless steel body, double seal and flat bottom design, it delivers safe, efficient fluid transfer, low maintenance and no residual contamination.
ESEINOR-manufactured API adapters are fitted on road tank trucks. They support fuel filling at loading racks and hose unloading at service stations. As the core component of the complete API bottom-loading system, this series of API adapters is elaborately designed and fabricated to mate with standard API quick couplers. Boasting outstanding durability, they serve as the ideal choice for global oil giants and petroleum transporters to satisfy diverse working conditions and customized requirements.
DESEINOR API adapters enable simpler, safer and more efficient fluid transfer. Constructed with 304L/316L stainless steel bodies, they adopt a double-seal structure made of perfluoroelastomer and PEFT for sealing. They have become standard adapters adopted by many large international petroleum enterprises. Featuring a compact structure and high-quality components, the adapters can operate in optimal condition for years with minimal maintenance. The full product line applies a flat-bottom design to guarantee complete discharge of media and eliminate residual contamination.
Product Name | Fuel tanker Stainless Steel API Adaptor Valve | Application | Tank Truck Accessaries Device |
Model Number | GY532-100 | Nominal Pressure | 1.6MPa |
Material | SS304 | Sealing Material | PTFE |
Nominal Diameter | 4 Inch | Working Temperature | -20℃~+200℃ |
Brand Name | DESEINOR | Installation Method | Flange Connection |
Relevant compliance and approval | EU ADR Standard | Relative Standard | API-1004 |
Packing Size | |||
L*W*H(CM) | 55*28*24 | ||
QTY/CTN | 2PCS/Box | ||
N.W(KGS) | 21.4KGS | ||
