High Pressure Oil Pipe

Product Overview

This is a composite hose for tank trucks, matched with German‑style MK tank wagon couplings (EN14420‑3). It is specially designed for refined‑oil transfer for loading and unloading gasoline, diesel and kerosene, capable of bi‑directional operation under both vacuum suction and positive‑pressure discharge conditions.

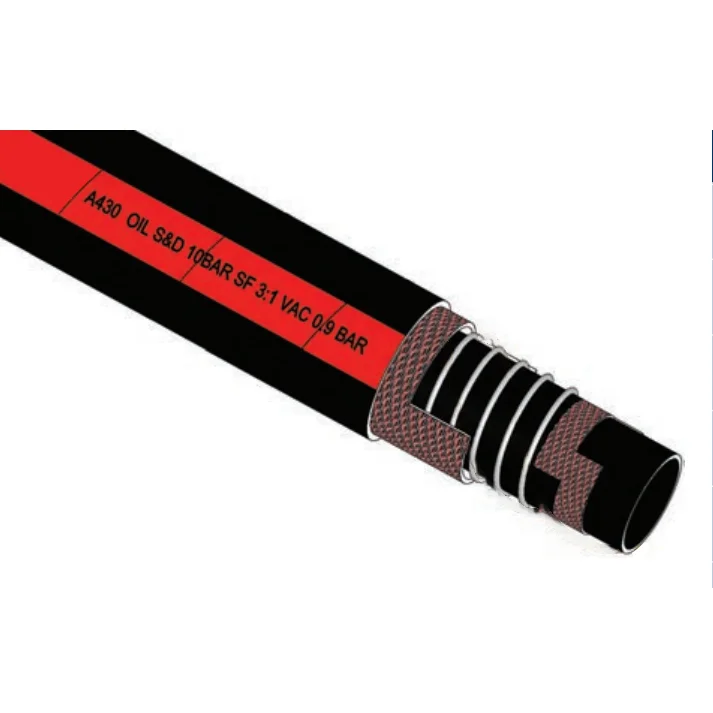

• Its inner and outer rubber layers resist fuel corrosion. The internal steel‑wire spiral reinforcement prevents hose collapse under vacuum suction while withstanding high‑pressure delivery, enabling both oil suction and discharge applications.

• Marked with “OIL SUCTION” on the hose surface, it has a working pressure WPS 250 PSI. It features explosion‑proof performance, anti‑aging property and resistance to oil swelling.

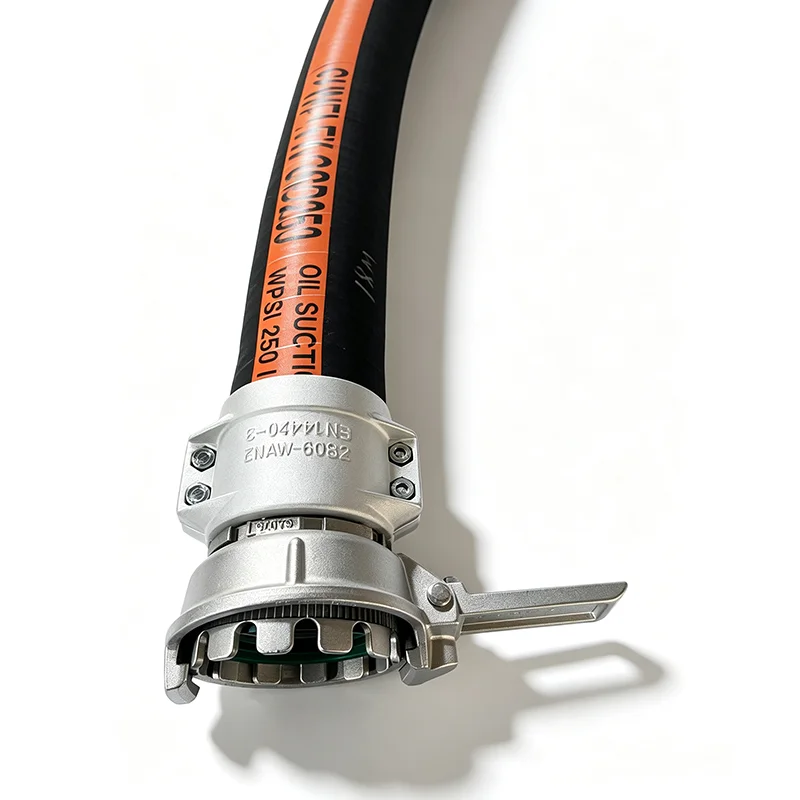

• Both ends are pre‑fitted with German‑style MK quick couplings complying with EN14420 standard. The couplings are made of aluminum alloy with green FFKM sealing rings. No extra fittings are required. It can directly connect to tank‑wagon ports on‑site for tool‑free manual quick assembly and disassembly.

• The abrasion‑resistant outer rubber cover is UV‑resistant and crush‑proof, suitable for outdoor oil depots and mobile refueling operations on construction sites. It delivers excellent flexibility and is not easy to get damaged during bending operations.

• Anti‑static construction dissipates static electricity generated during fluid transfer to meet safety requirements for
