A Fuel Dispenser That Combines Controlled Fuel Metering With Ic Card Payment, Receipt Printing, Preset Fueling, Data Upload, And Fuel Station Management System Connectivity.
Flow rate: 5-60L/min
Operating voltage: 220V/380V
Temperature range: -40℃ to +70℃

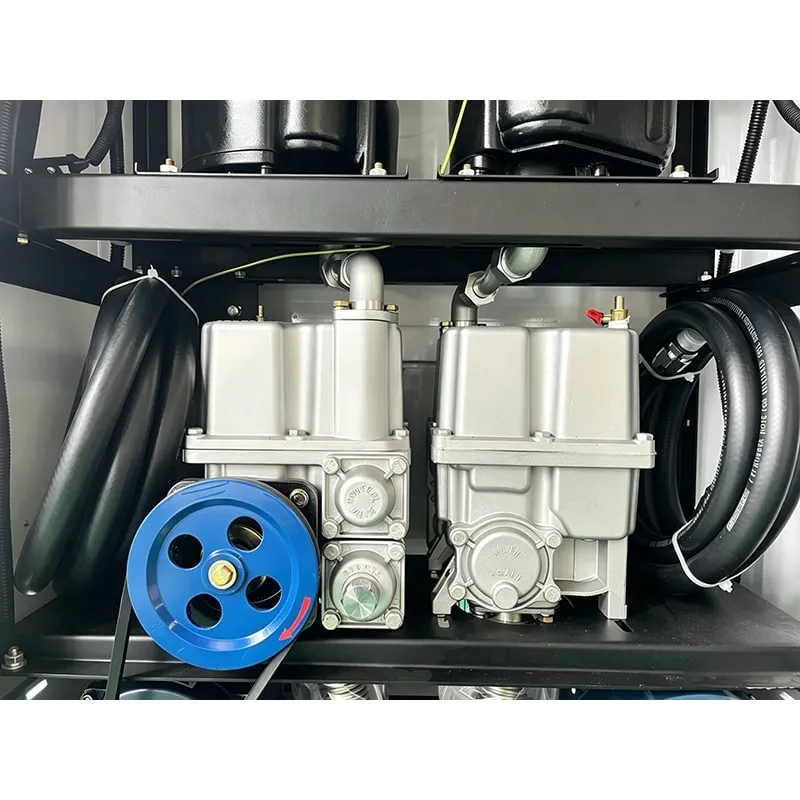

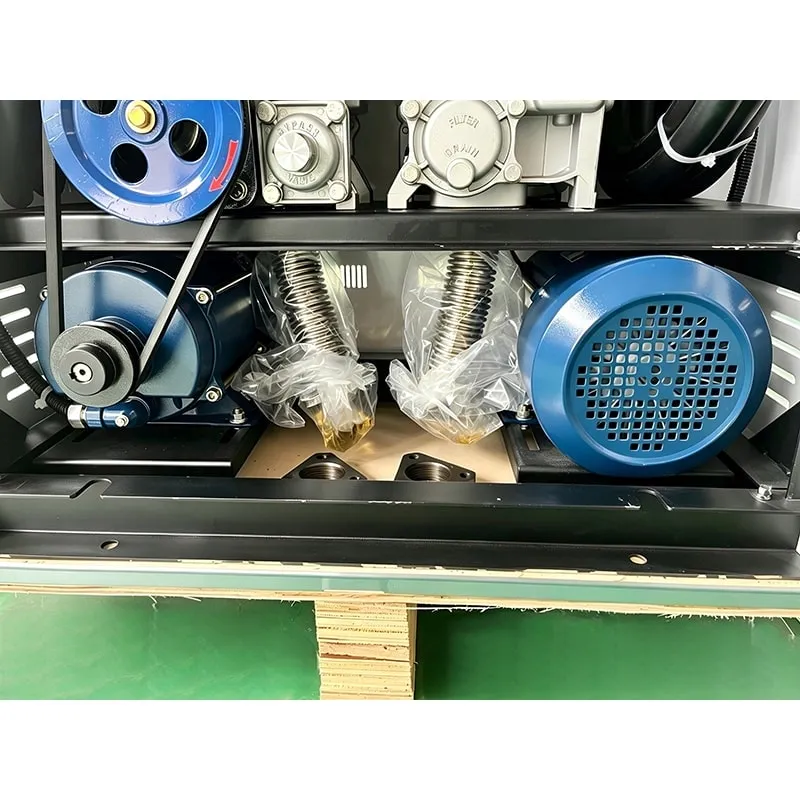

Refueling method: Gear pump/submersible pump
Compatible fluids: Diesel/gasoline/ethanol
Explosion-proof classification: Ex d IIB T4 Gb
Product dimensions: 106×46×170cm
Package dimensions: 110×50×180cm
Net weight: 280kg

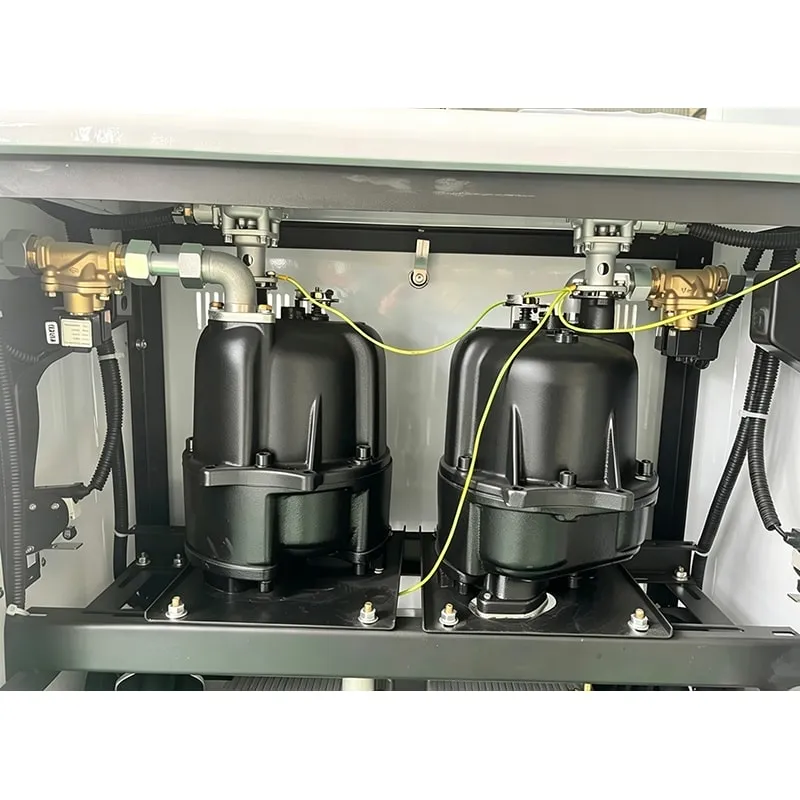

Accurate metering: Fitted with a DESEINOR high-accuracy positive-displacement meter with a flexible-piston design, together with built-in fiscal-control and anti-tampering functions. The metering system is designed to meet error levels below the applicable national standard limit, helping prevent measurement discrepancies and supporting compliant transactions.
Connected transaction management: Supports IC card payments, receipt printing, and networked data upload. The fuel dispenser can connect to a fuel station management system for real-time transaction synchronization and remote management. Preset fueling reduces manual input and supports faster service during busy periods.
