Lightweight aluminum quick connect clamps for powder tanker piping. The hinged design follows the gasket profile for secure sealing and supports grooved, flat, and mixed pipe connections.

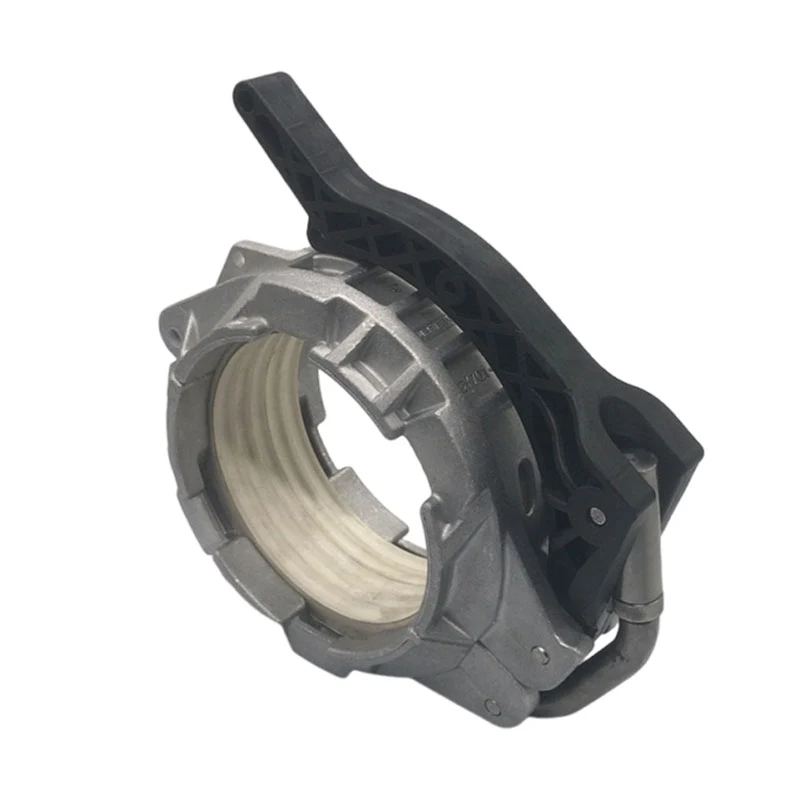

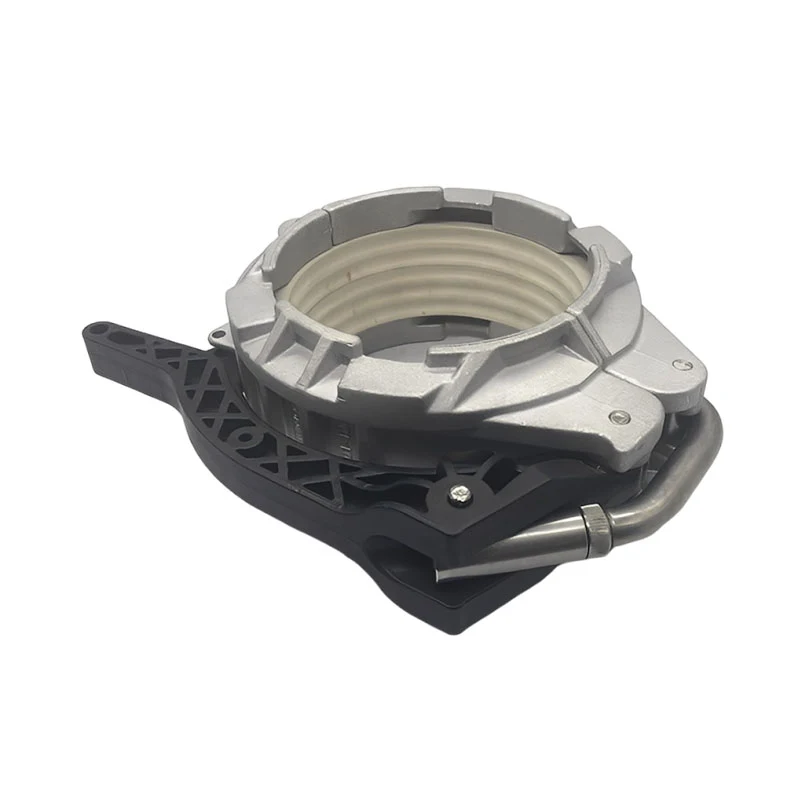

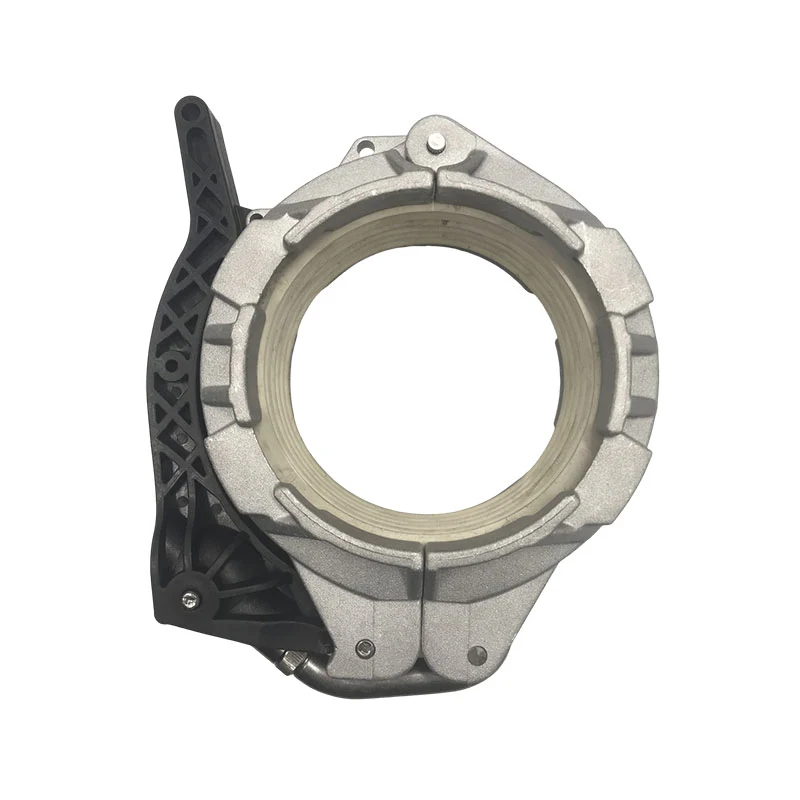

DESEINOR’s one-piece quick-connect clamp is a lightweight cast-aluminum coupling for dry bulk tanker piping. This 4-inch clamp can replace conventional plastic and aluminum connectors and supports groove-to-groove, groove-to-plain-end, plain-end-to-plain-end connections, and other type of connections.
Product Name | Powder Tank Pipe Clip | Application | Bulk powder tanker/cement tanker Accessaries |
Model Number | GY701-100 | Kind | Auto Accessaries |
Material | Aluminum alloy | Sealing Material | FDA |
Nominal Diameter | 4 Inches | Working Temperature | -40℃~+70℃ |
Brand Name | DESEINOR | Installation Method | Quick Clamp type |
Place of Origin | China | Support | Customized service |
Packing | Carton Box | MOQ |
10PCS |
Packing Size | |||
L*W*H(CM) | 18.5*8.5*21 | ||
QTY/CTN | 1PCS/Box | ||
N.W(KGS) | 1.4KGS | ||
The one-piece clamp connects both plain-end and grooved pipe directly. Pipes and tees require no additional grooving, helping reduce fitting costs.
Available with split or one-piece gaskets and either combination cam handles or T-bolt handles, in 3-inch and 4-inch sizes.
The clamp aligns directly with the pipe ends for fast connection. Its integrated construction also simplifies cleaning and helps reduce operating costs.
