M-DS608 Loading un-loading Elbow

DESEINOR Loading un-loading Elbow with 3/4 inch Type C/E connectors features aluminum alloy construction and visual fuel flow design, ideal for fuel tank truck loading and unloading pipeline systems.

+8615152188858

admin@shiyoujx.com

Product Overview

Product Introduction

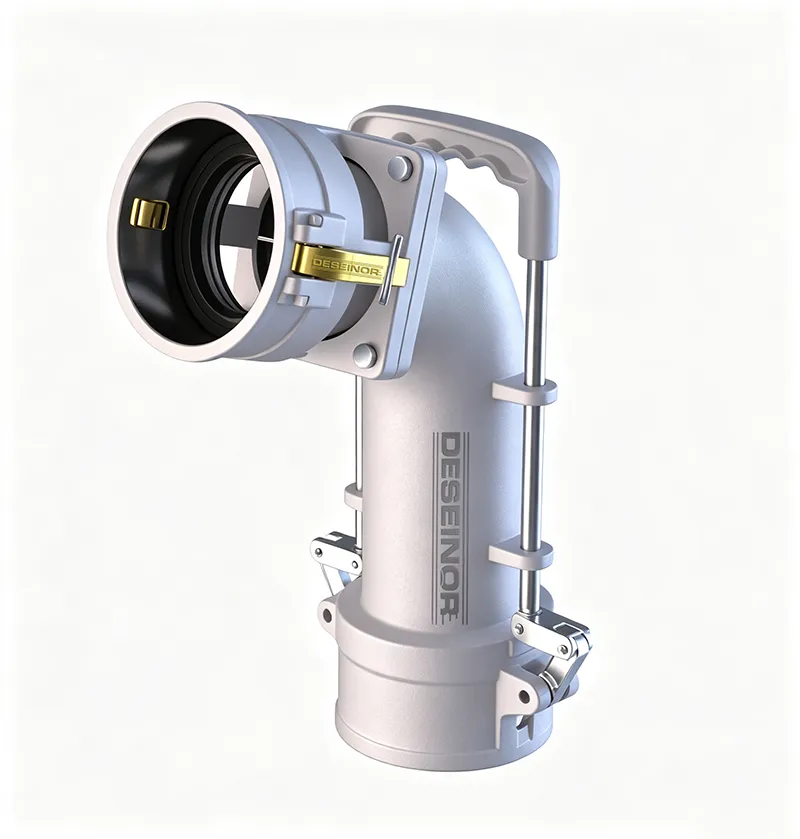

DESEINOR Loading un-loading Elbow is offered in 3-inch and 4-inch specifications with Type C and Type E connectors. As a key connecting component for tank truck bottom unloading systems, it connects gas station underground storage tanks and road tank truck discharge hoses stably.

This unloading elbow adopts aluminum alloy body and stainless steel accessories, fitted with a sight window and built-in propeller to realize real-time visual observation of fuel flow. It is compatible with both top loading and bottom loading tank truck systems, widely used for refined oil storage, transportation and unloading.

Technical Parameters

Product Name	Loading un-loading Elbow	Application	Fuel Servicing equipments
Model Number	M-DS608	temperature range	-40℃~70℃
Material	Aluminum Alloy	Size	4”-3”, 4”-4”
Working Pressure	10 kpa -200 kPa	Sealing Material	FKM
Rated Flow	120 m³/h	Place of Origin	China
Brand Name	DESEINOR
Packing Size
*LWH(CM)*	594522
QTY/CTN	1 PCS/CTN
N.W(KGS)	8.2KGS
