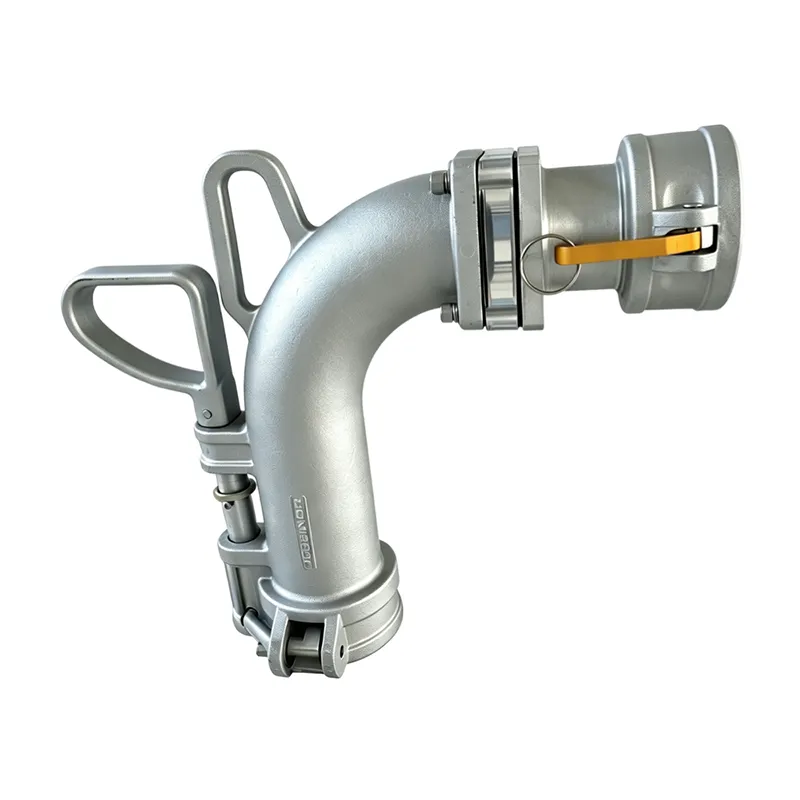

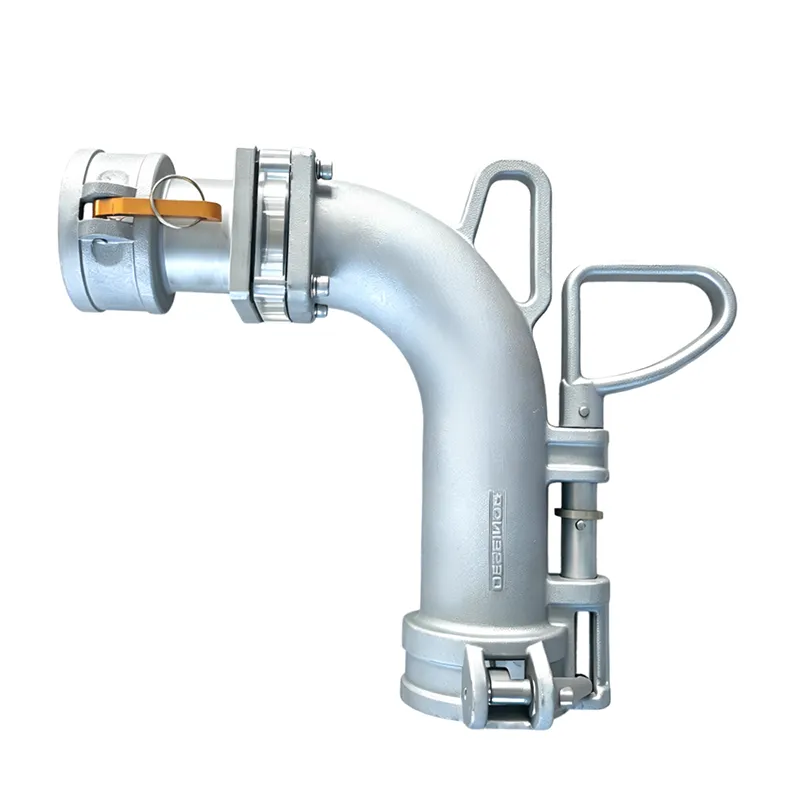

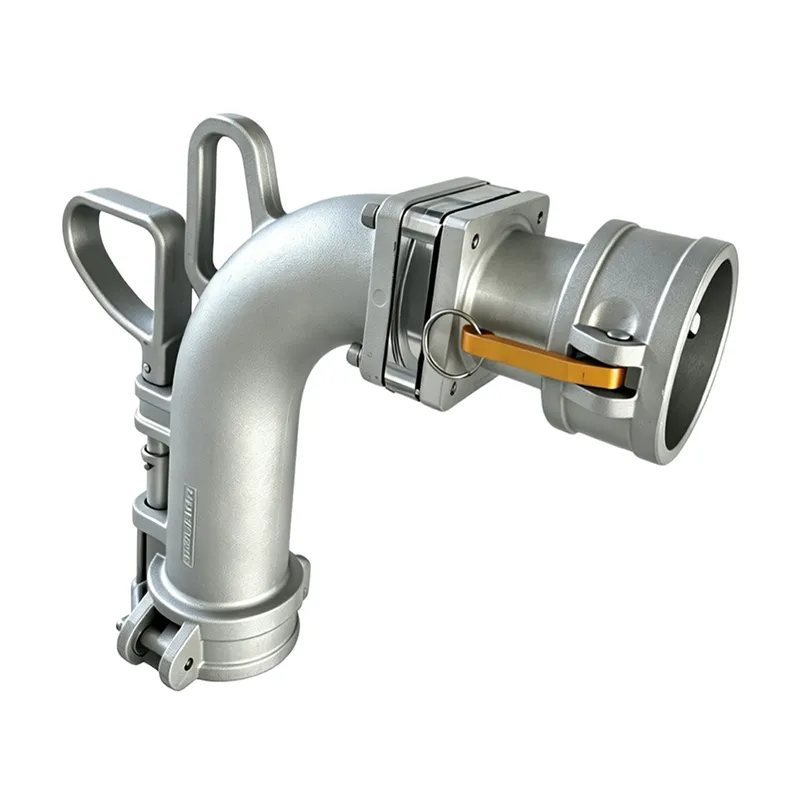

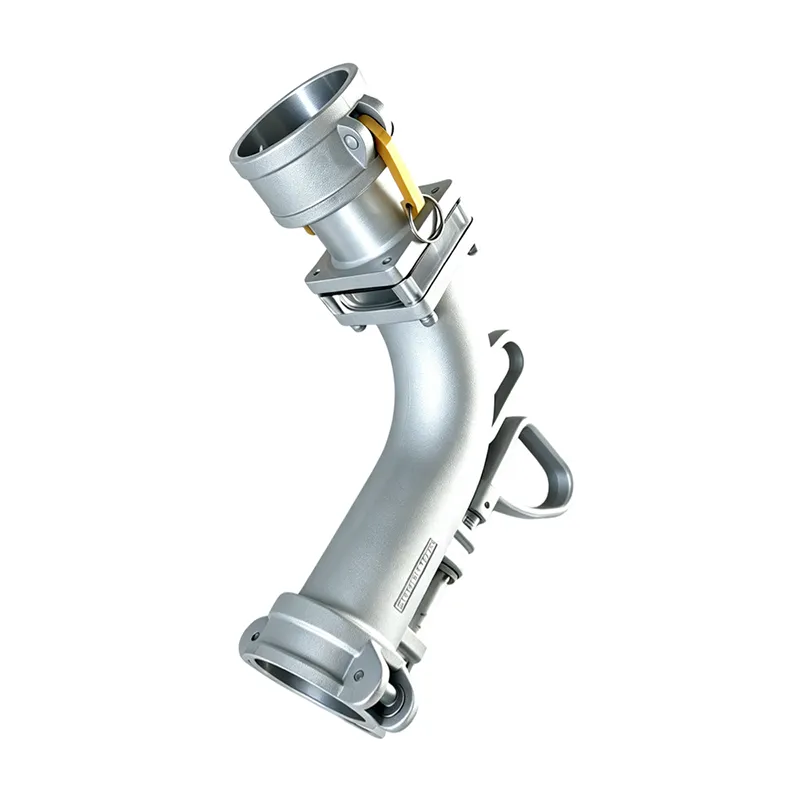

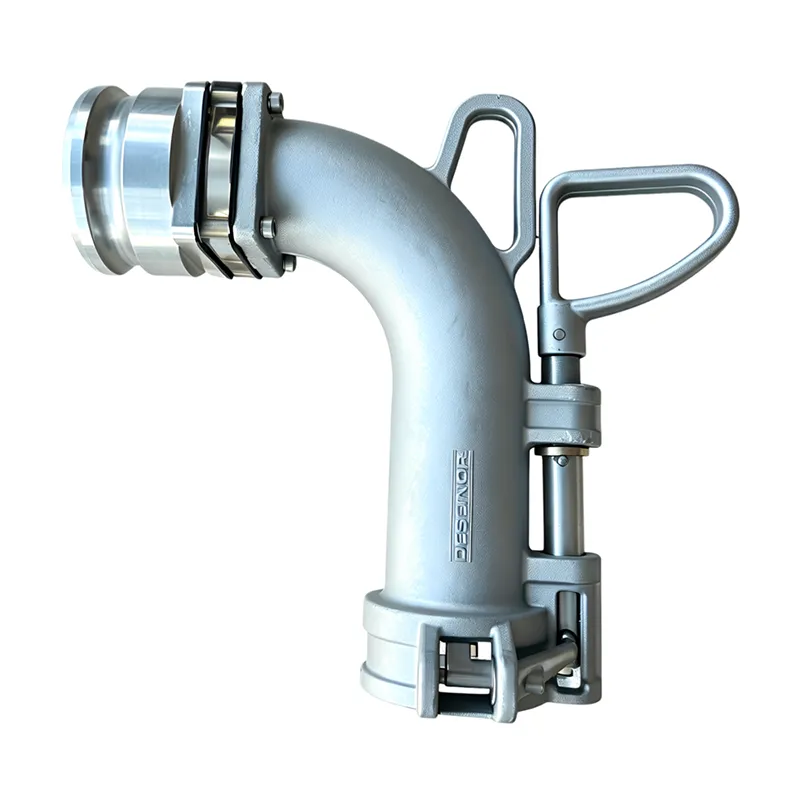

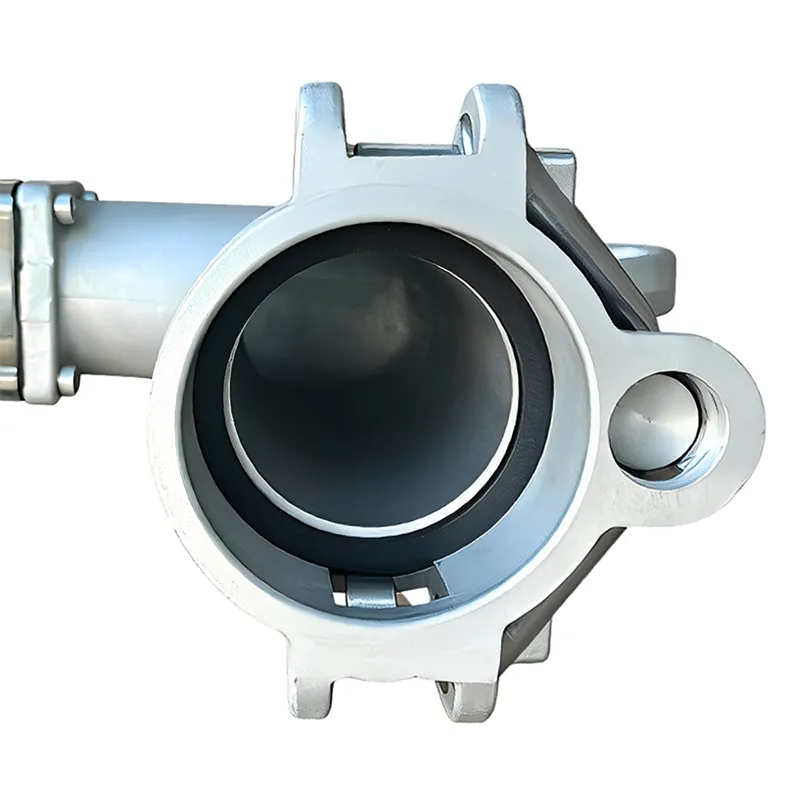

DESEINOR oil discharge elbows in 3-inch and 4-inch type C and E connectors link gas station underground tanks to road tanker hoses for bottom unloading.
DESEINOR oil discharge elbows are available in multiple sizes, with 3-inch and 4-inch type C and type E connectors. This product is used to connect the underground storage tanks of gas stations and the discharge hoses of road tank trucks, serving as a critical connection component for the tank truck bottom unloading system.

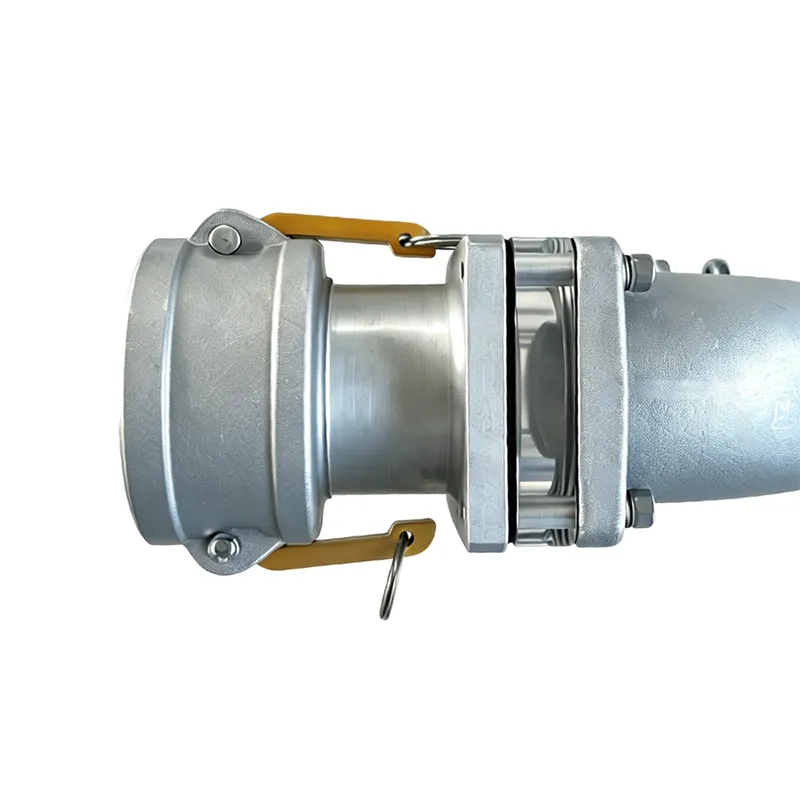

The product body is made of aluminum alloy, fitted with stainless steel accessories. It features a sight window and built-in propeller, allowing operators to visually observe the fuel flow status during operation. Compatible with both bottom loading and top loading tank truck systems, it boasts great versatility and is widely applied in the storage, transportation and unloading of refined oil products.
Product Name | Loading un-loading Elbow | Application | Fuel Servicing equipments |
Model Number | DSS611-80 | temperature range | -40℃~70℃ |
Material | Aluminum Alloy | Size | 3”-3” |
Working Pressure | 10 kpa -200 kPa | Sealing Material | FKM |
Rated Flow | 120 m³/h | Place of Origin | China |
Brand Name | DESEINOR |
|
|
Packing Size | |||
L*W*H(CM) | 46*38*16 | ||
QTY/CTN | 1 PCS/CTN | ||
N.W(KGS) | 4KGS | ||
