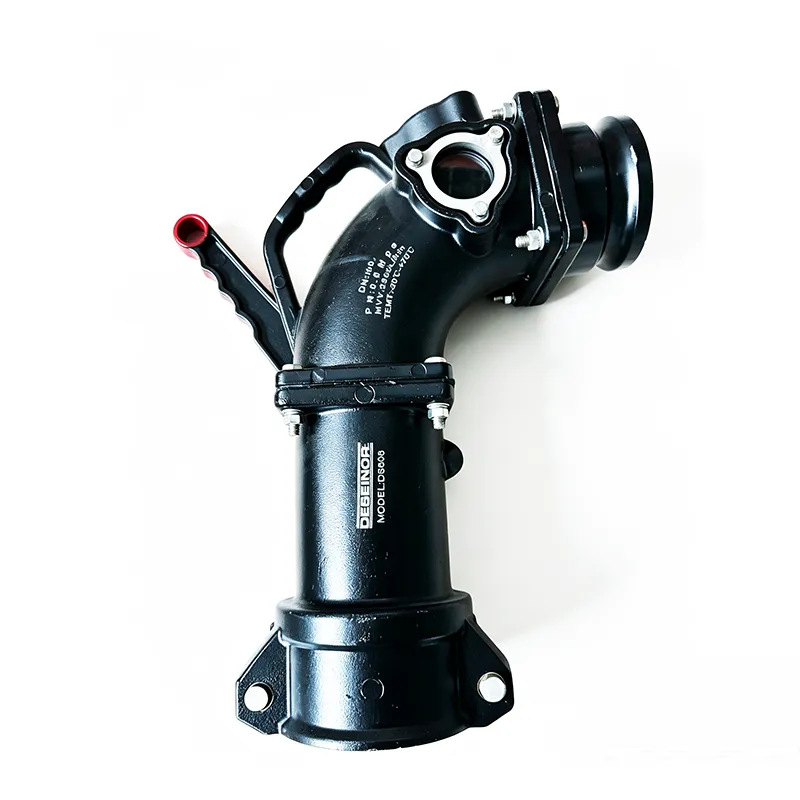

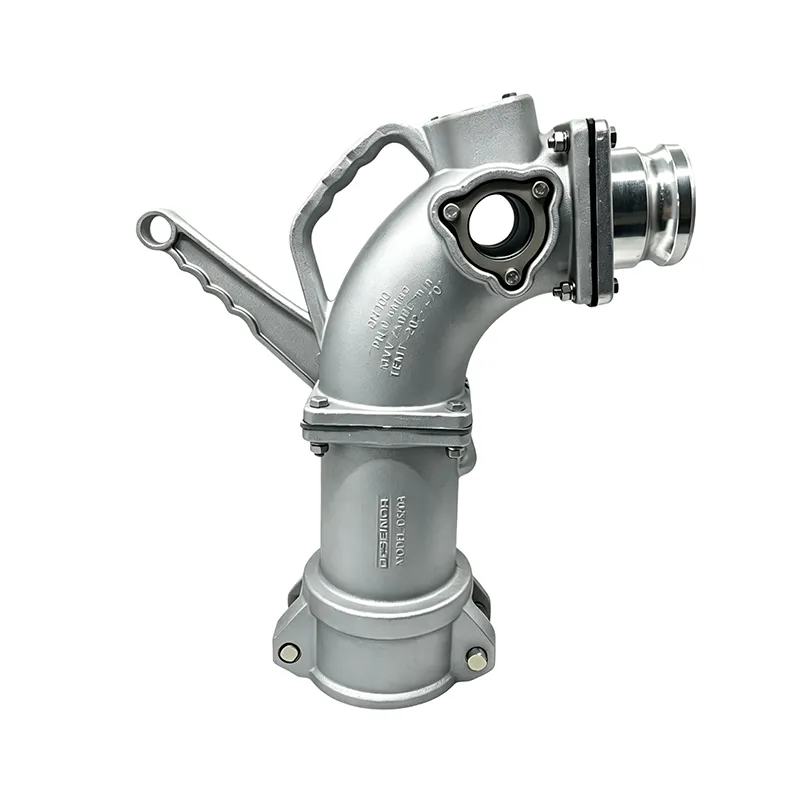

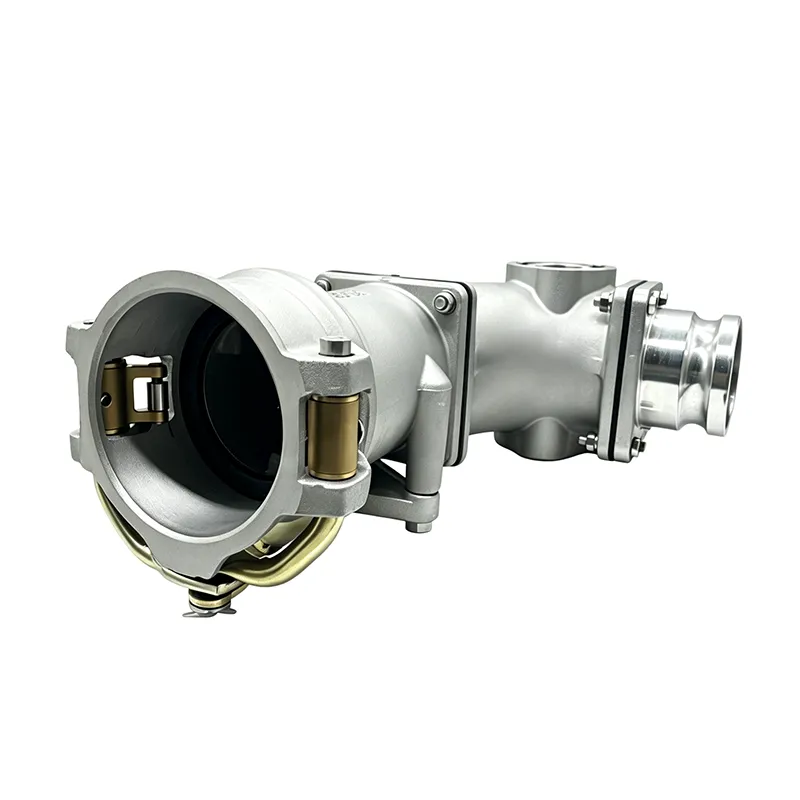

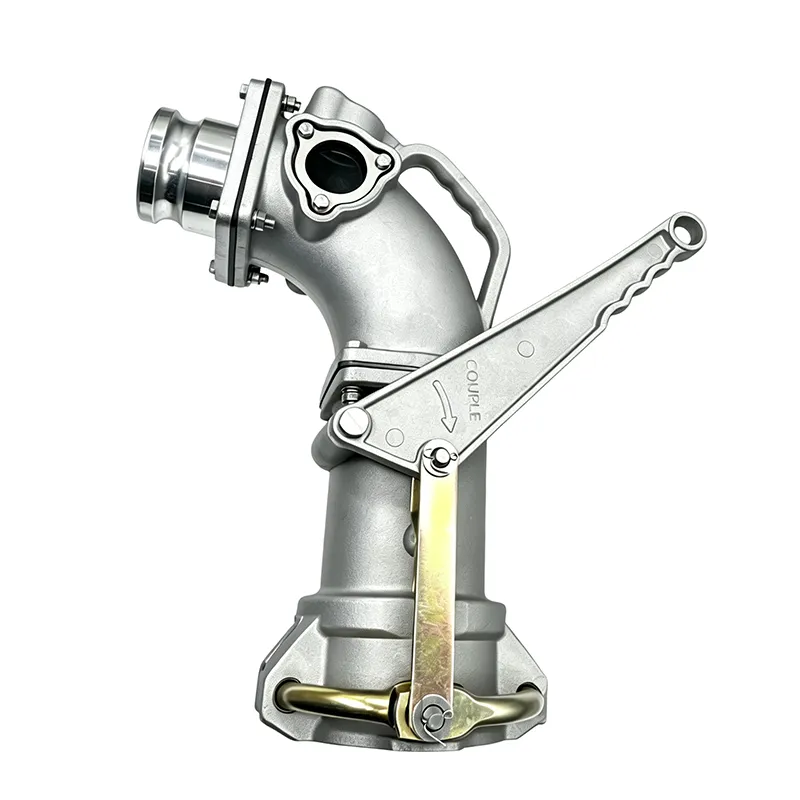

DESEINOR Loading un-loading Elbow features 3-inch and 4-inch Type C and Type E connectors. Made of aluminum alloy with stainless steel accessories, it has a sight window and built-in propeller for visible fuel flow. Suitable for top and bottom loading systems for refined oil tank truck unloading and station pipeline connection.
Product Name | Loading un-loading Elbow | Application | Fuel Servicing equipments |
Model Number | DS608 | temperature range | -40℃~70℃ |
Material | Aluminum Alloy | Size | 4”-3”, 4”-4” |
Working Pressure | 10 kpa -200 kPa | Sealing Material | FKM |
Rated Flow | 120 m³/h | Place of Origin | China |
Brand Name | DESEINOR |
|
|
Packing Size | |||
L*W*H(CM) | 59*45*22 | ||
QTY/CTN | 1 PCS/CTN | ||
N.W(KGS) | 8.2KGS | ||
