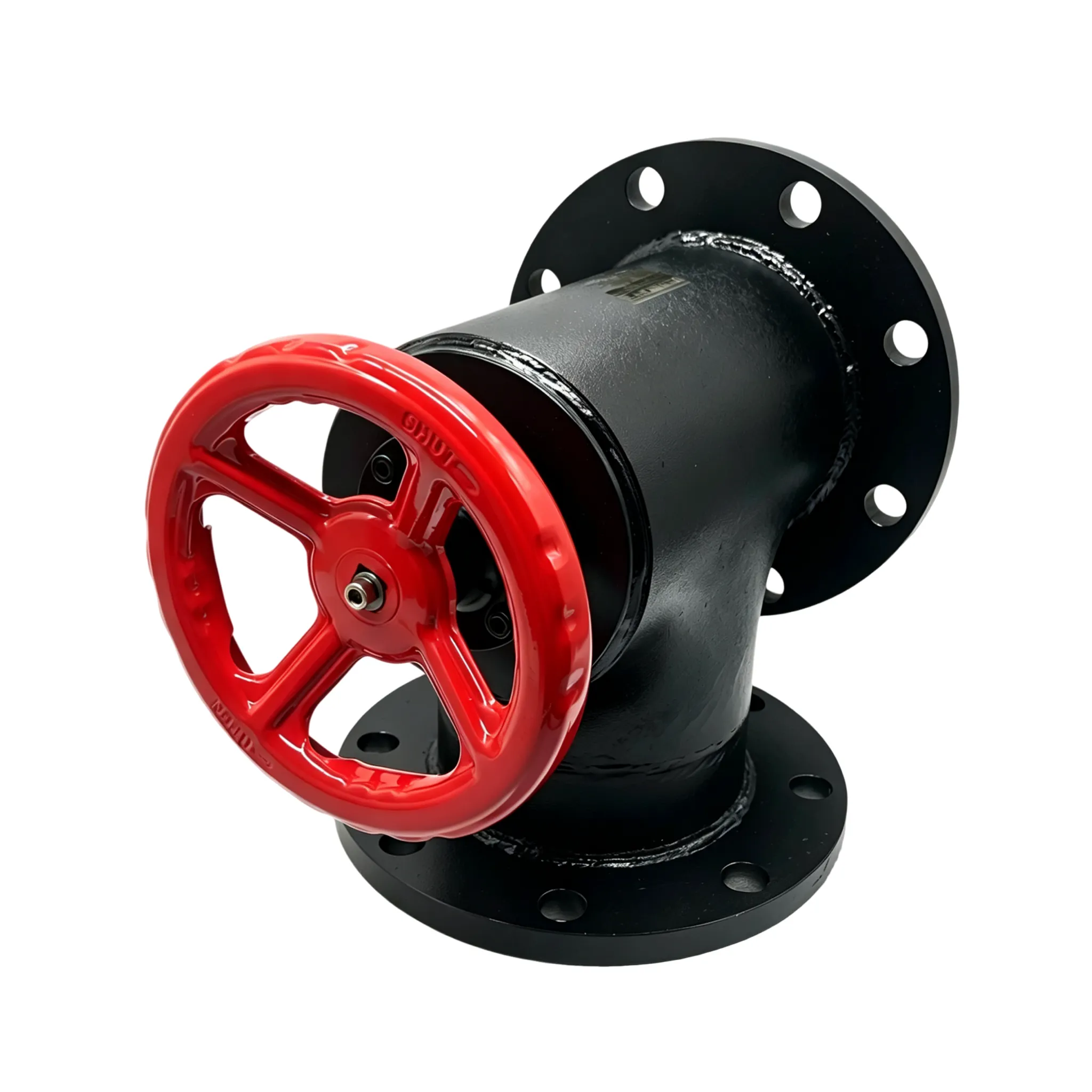

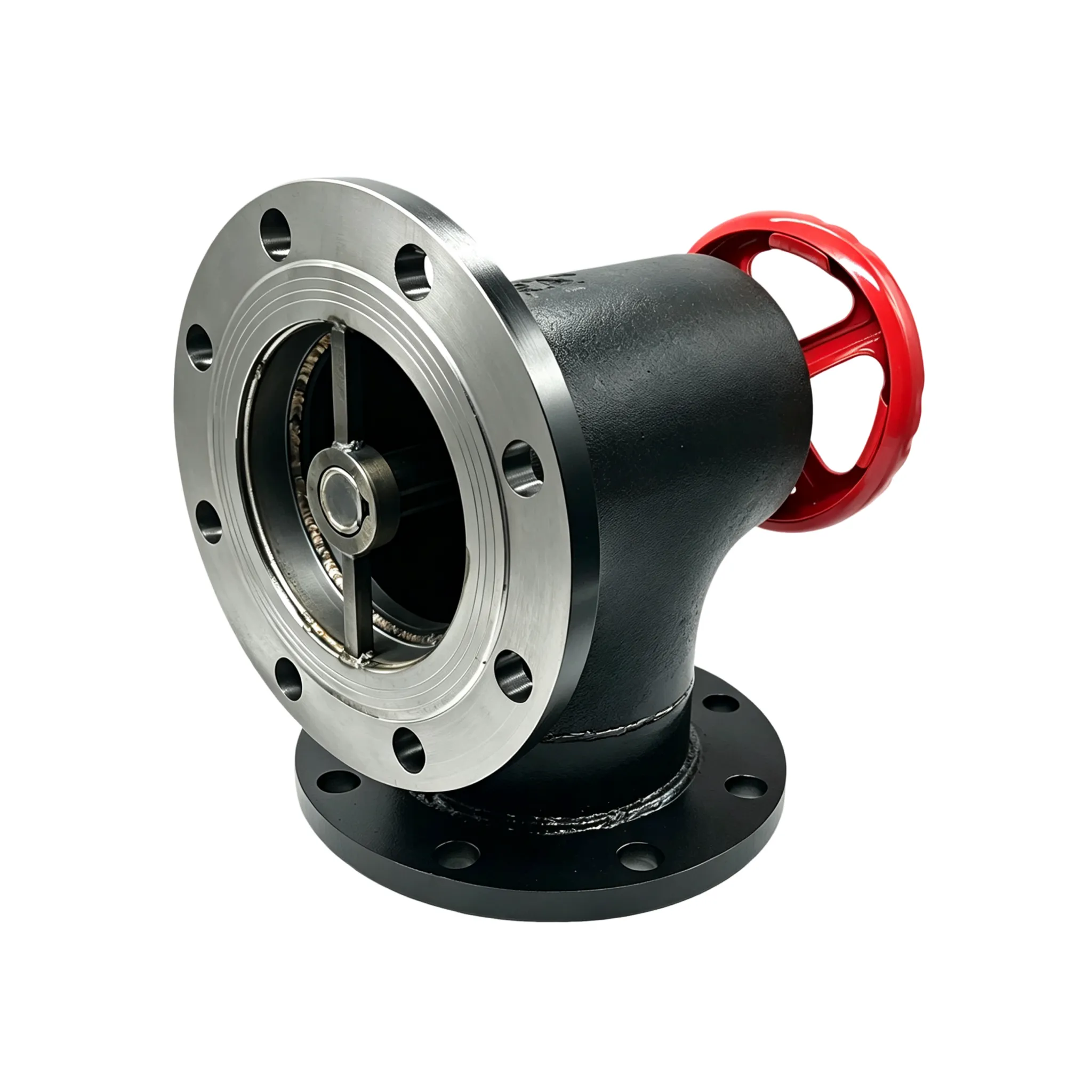

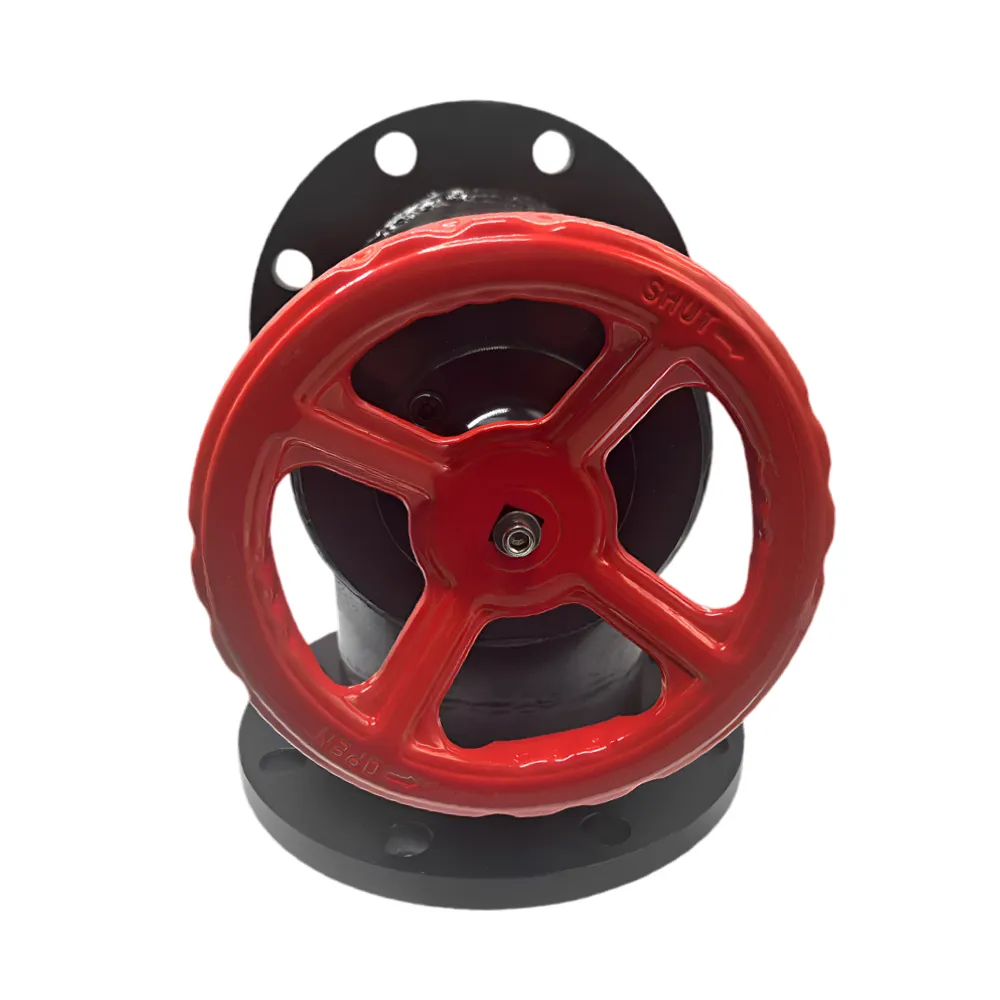

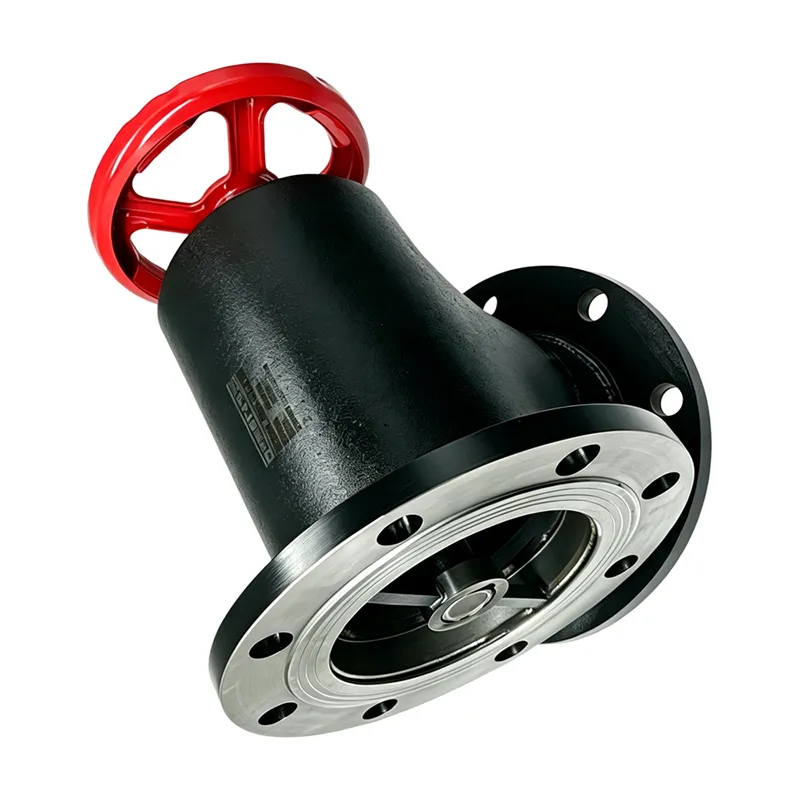

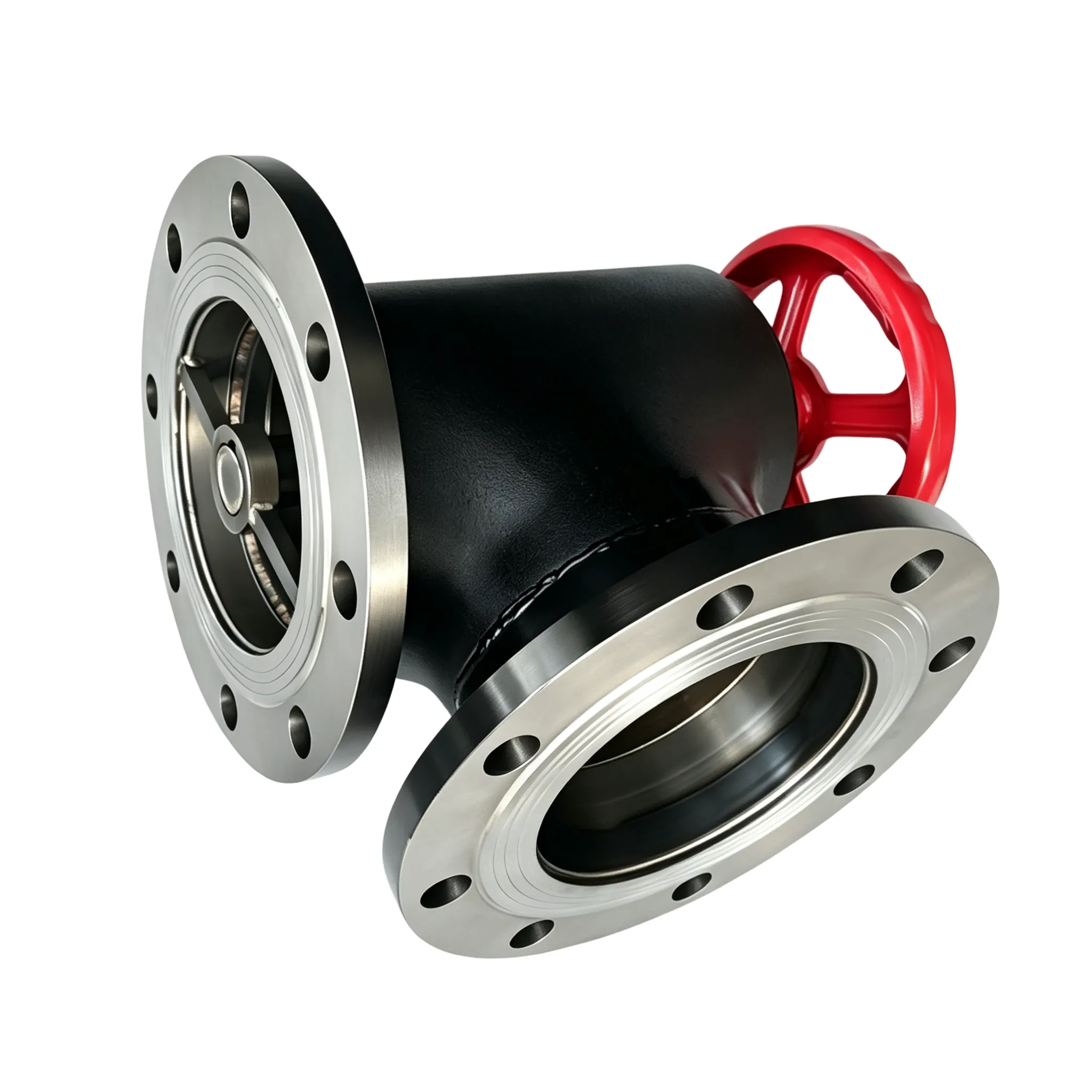

DESEINOR 6-inch cast steel discharge valve for tank trucks and storage tanks, suitable for crude oil & heavy oil. Equipped with manual red handwheel, precision flange, core safety component for crude oil storage and transportation unloading.
DESEINOR 6-inch discharge valve is a special unloading component matched with tank trucks and storage tanks for crude oil handling. Mounted on the tank rear, it fits viscous media including crude oil and heavy oil.
The valve body adopts cast steel with precision machined flange faces, fitted with a red manual handwheel for local open and close control. As an essential safety part, it supports full crude oil storage and transportation systems.
Product Name | Crude Oil Valve | Application | Industrial Coupling |
Model Number | DSSY-YYF150B | temperature range | -40℃~120℃ |
Material | Carbon Steel | Size | 6inch |
Norminal Pressure | 1.6 MPa | Sealing Material | Graphite grade hard seal |
Brand Name | DESEINOR | Connection Type | Flange |
Packing Size | |||
L*W*H(CM) | 29*37*36 | ||
QTY/CTN | 1 PCS/CTN | ||
N.W(KGS) | 29KGS | ||
