Mechanical operator utilizes lever action to open and close emergency valves on tank trucks

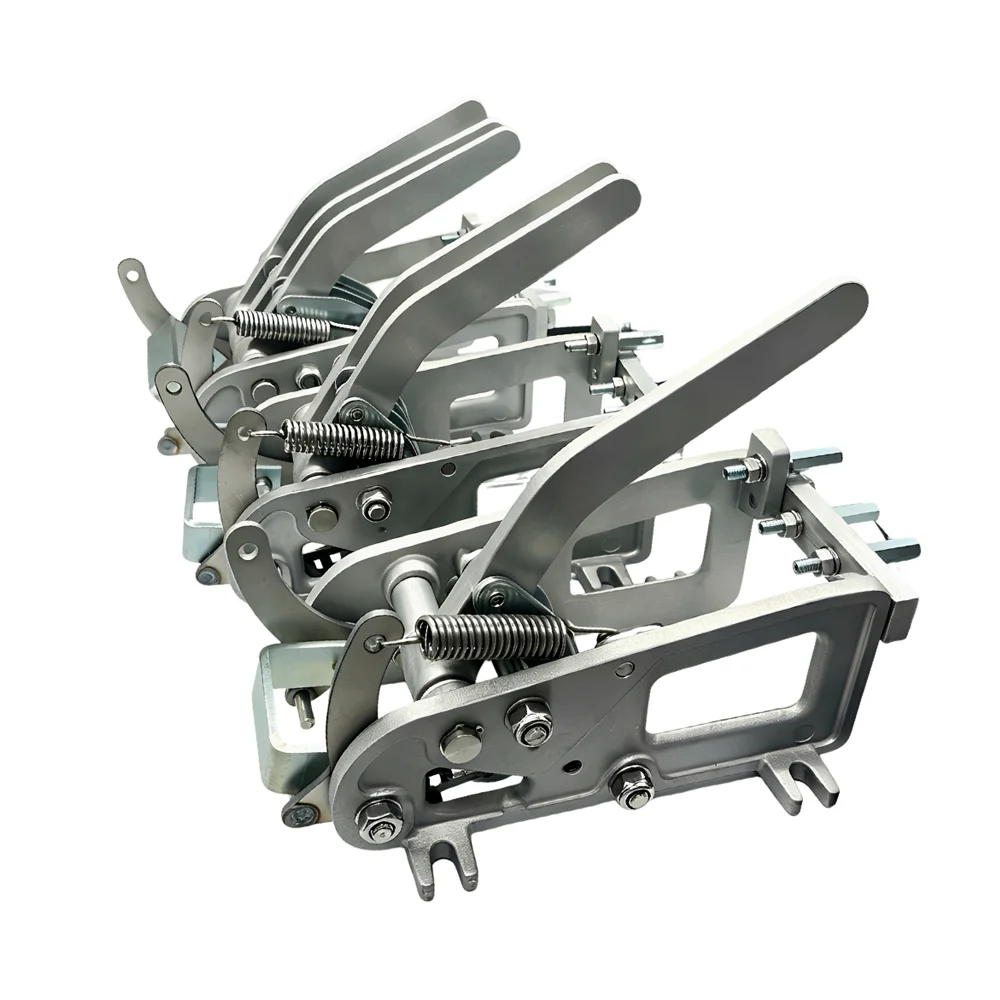

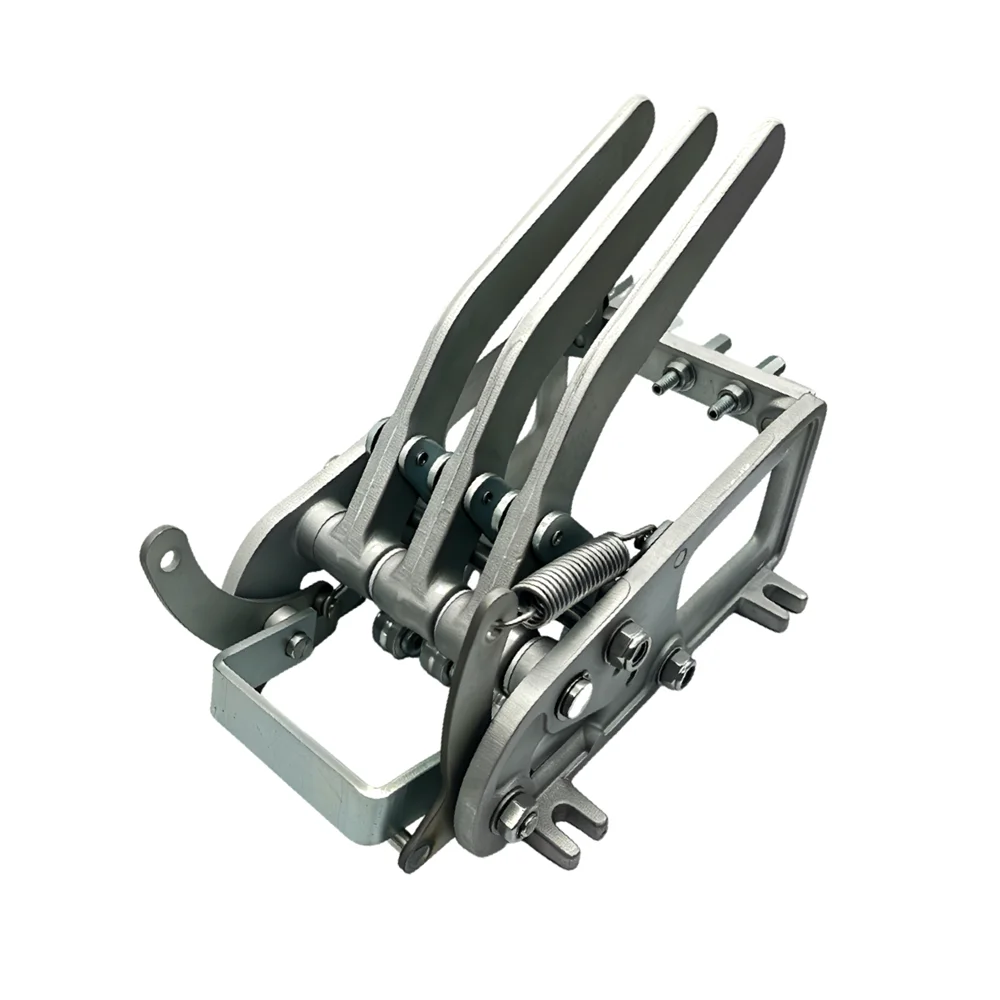

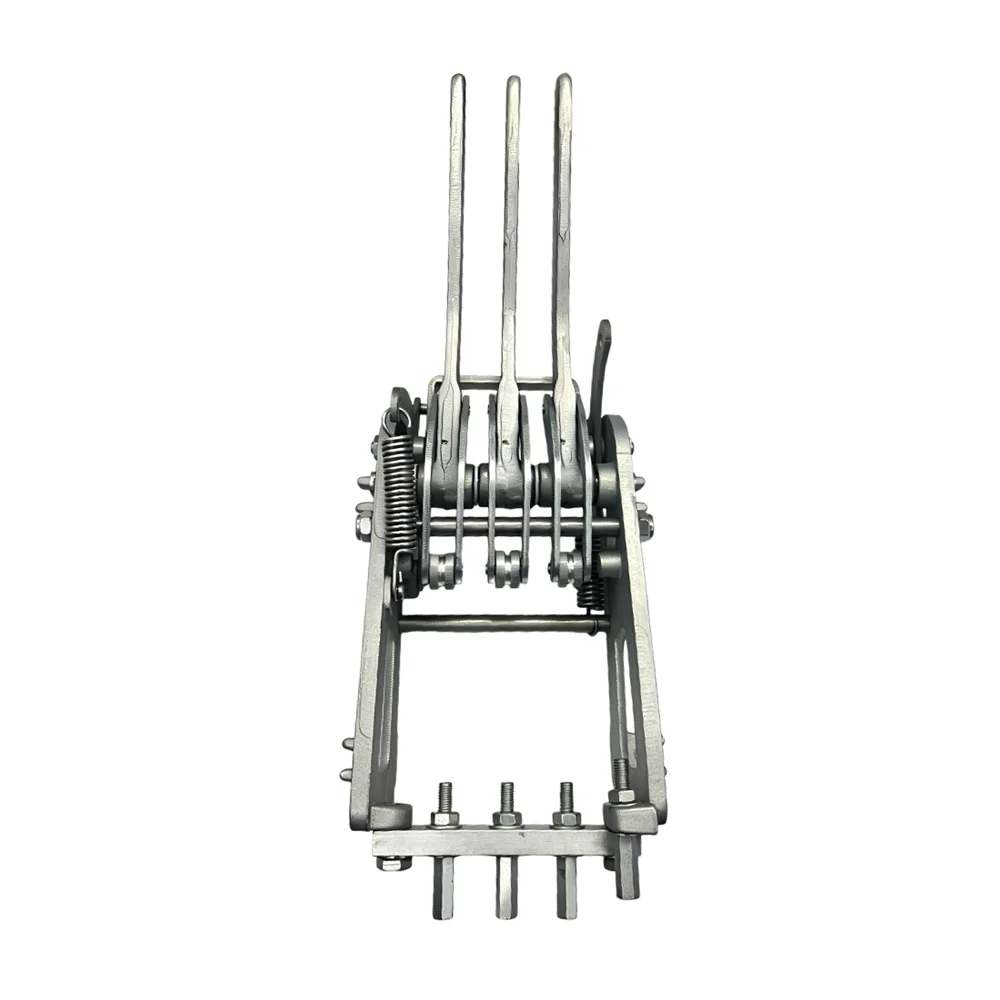

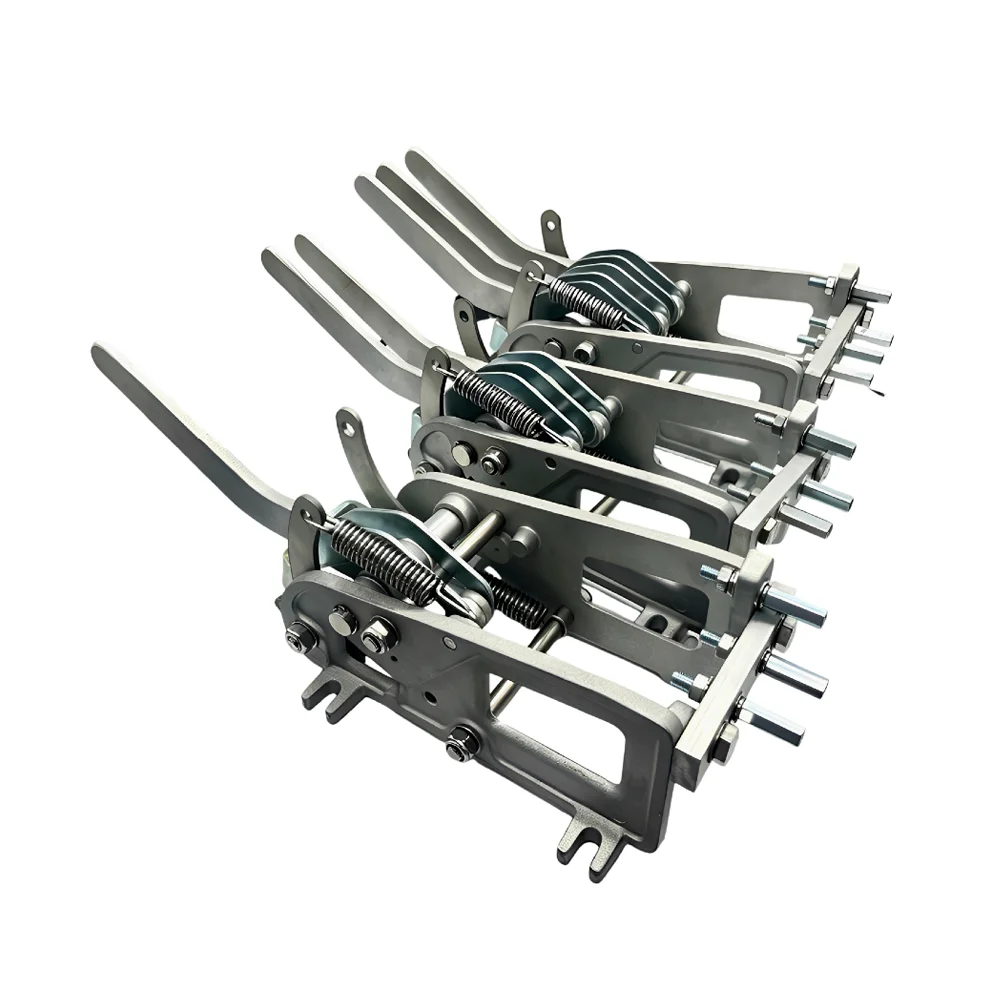

The emergency valve mechanical operator is a manual lever system installed on fuel tankers to open and close emergency shut-off valves (bottom valves) via steel cable linkage. Each lever controls one valve, and the number of levers can be customized according to vehicle configuration and compartment layout.
Our mechanical operator uses a centralized control structure, routed beneath the tanker, with up to six steel cables extending to the shut-off valves of individual compartments. In case of emergency, operators can manually or remotely activate the handle to immediately close the valve and stop fuel flow. The system features stainless steel components and a cast aluminum body to ensure strength, corrosion resistance, and long-term operational safety.
Product Name | Mechanical operation Device | Application | Fuel tanker Accessories |
Model Number | GY671A/2A/3A | Kind | Auto parts |
Material | Steel | Sealing material | PTFE |
Brand Name | DESEINOR | Working Temperature | -40℃~+70℃ |
Shift Size | 75 | High temperature | Automatic Reset |
GY671A Packing Size | |||
L*W*H(CM) | 23*23*17 | ||
QTY/Box | 1PCS/Box | ||
N.W(KGS) | 2.6KGS | ||
Uses a flat-linkage mechanism for compact design and smooth operation
Equipped with a high-temperature fuse for automatic emergency shut-off
Integrated cam system with spring return ensures secure valve closure
Ergonomic bent-handle design allows for quick return via linkage, improving operating efficiency
