Built for bulk fueling at fuel depots, tank trucks, and large diesel equipment, this 2'' fuel nozzle combines automatic shut-off, a hold-open latch, and a 360° swivel for controlled high-flow dispensing.

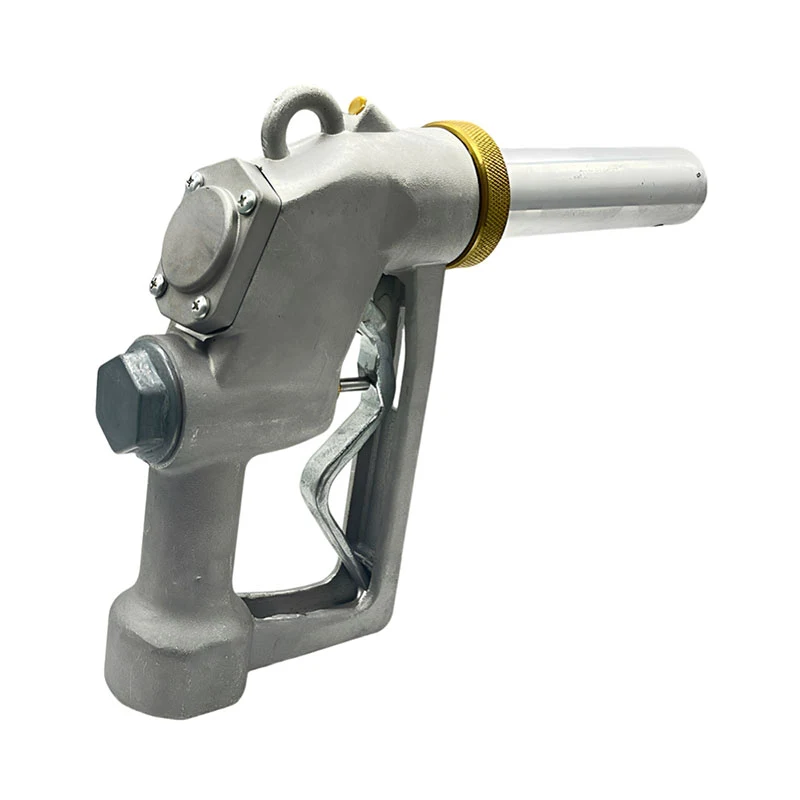

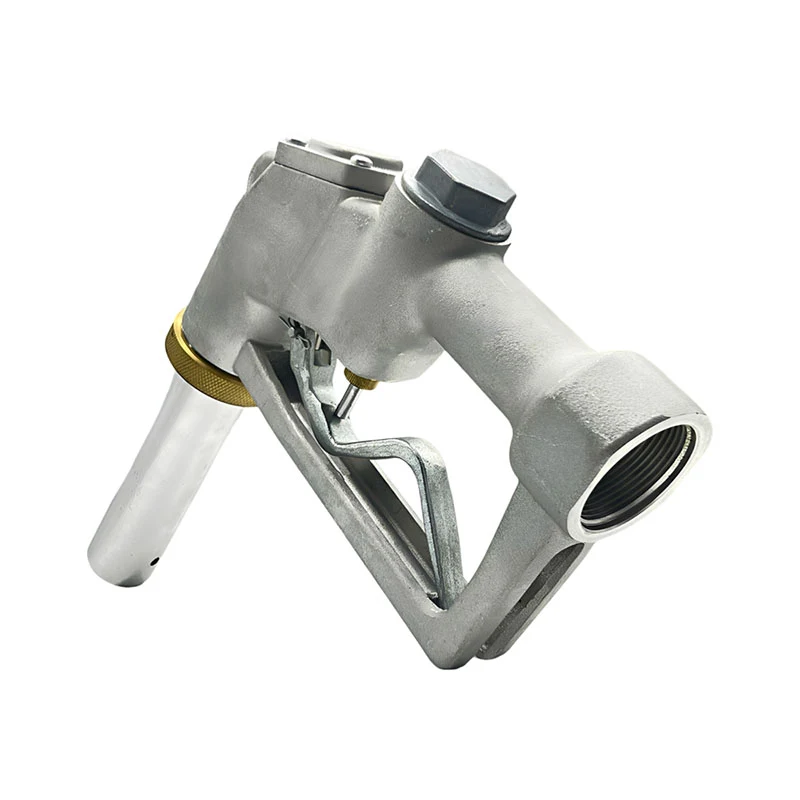

The 2-inch automatic shut-off fuel nozzle is designed for high-flow fuel transfer at fuel depots, on tank trucks, and when refueling large diesel-powered equipment. This fuel nozzle is compatible with diesel, gasoline, and other light fuels and features an automatic stop function when the receiving tank is full, enabling efficient and controlled dispensing.
Product Name | Automatic Fuel Nozzles | Application | Fuel Dispenser Nozzle |
Model Number | GY-200 | Kind | Fuel-servicing Equipment |
Material | Aluminum | Flow Rate | 200-300L/min |
Inlet Specifications | 2inch | Thread type | BSP/NPT |
Brand Name | DESEINOR | Working Temperature | -40℃~+70℃ |
Applicable Medium | Light fuel oils such as diesel and gasoline etc. | Conditions | New |
Original Country | China | After service | Support online |
Packing Size | |||
L*W*H(CM) | 32.5*26.5*6.5 | ||
QTY/CTN | 1PCS/CTN | ||
N.W(KGS) | 2.5KGS | ||
Automatic full-tank shut-off: A sensing port at the tip of the spout activates the internal shut-off mechanism when in contact with the fuel, effectively preventing spills and overfilling. This reduces the need for continuous liquid-level monitoring during filling for easier operation.
Durable, manageable construction: The cast aluminum body offers a good balance between ease of handling and durability. It withstands wear and corrosion in fuel depots, job sites, and tough environments, while the core seals protect against fuel exposure and aging.
Hold-open latch: Once the required flow position is selected, the latch maintains fuel delivery without continuous pressure on the lever, reducing operator effort during large-volume transfer.
360° swivel connection: The standard 2-inch swivel rotates freely through 360° for easier nozzle positioning and handling during use.
