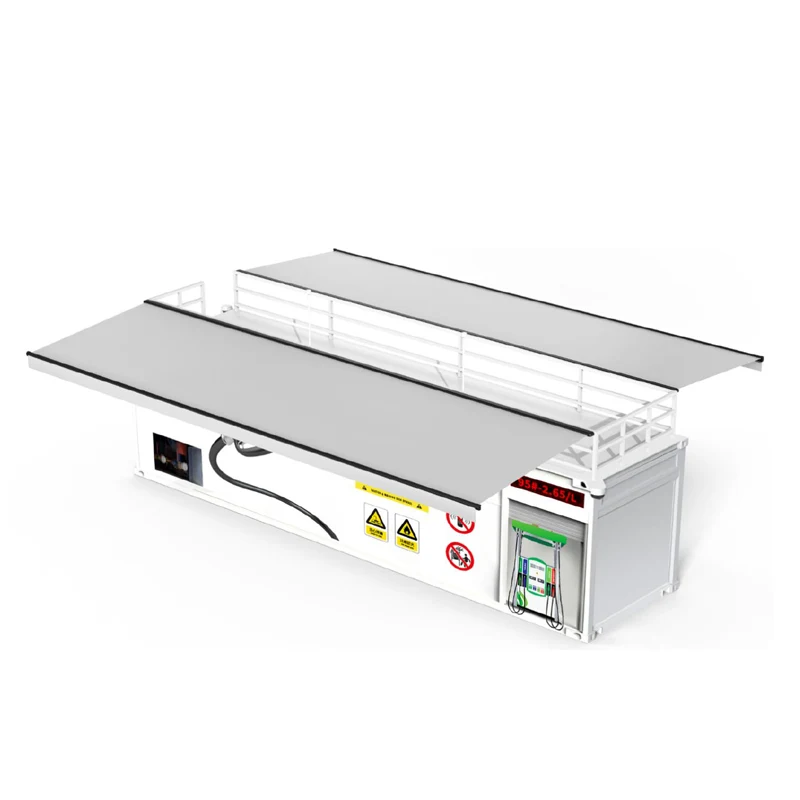

This product uses a single island, 2 refueling machines, and 4 refueling guns. The CPU opens the protocol and can contact the IC card management system. The built-in tank has 2 positions
This product uses a single island, 2 refueling machines, and 4 refueling guns. The CPU opens the protocol and can contact the IC card management system. The built-in tank has 2 positions, which are controlled by valves and can be used in single/double
switching. The tank is actually used. Capacity 62000L.
The product adopts an explosion-proof electric sunshade, which can withstand 8-level wind force. You can choose to open or close it freely. The LED displays the oil name, price, etc., and can be adjusted freely. You can complete the setting by plugging
it into the USB interface.
| Maximum external dimensions (excluding parapet height) | lengths | 5500mm—14000 |
| Width | 2900mm | |
| Height | 3200mm | |
| Rated volume | 5m³ -50m³ | |
| Bare weight | 2600kg—24200kg | |
| Temperature | -20℃~40℃ | |
| Manhole diameter | 580mm | |
| Emergency pressure relief | 21-35kPa | |
| Breathing valve | DN50 -295Pa~2000Pa | |
| Barrier material | IV type | |
| Paint | Epoxy zinc-rich primer + epoxy iron coating + polyurethane top coating | |
| Working voltage | Three-phase five-wire 380V | |
| Maximum power consumption of a single skid | 8Kw or 14Kw | |
