This product uses two islands, 2 refueling machines, and 4 refueling guns. CPUopen protocol, you can contact the IC card management system.

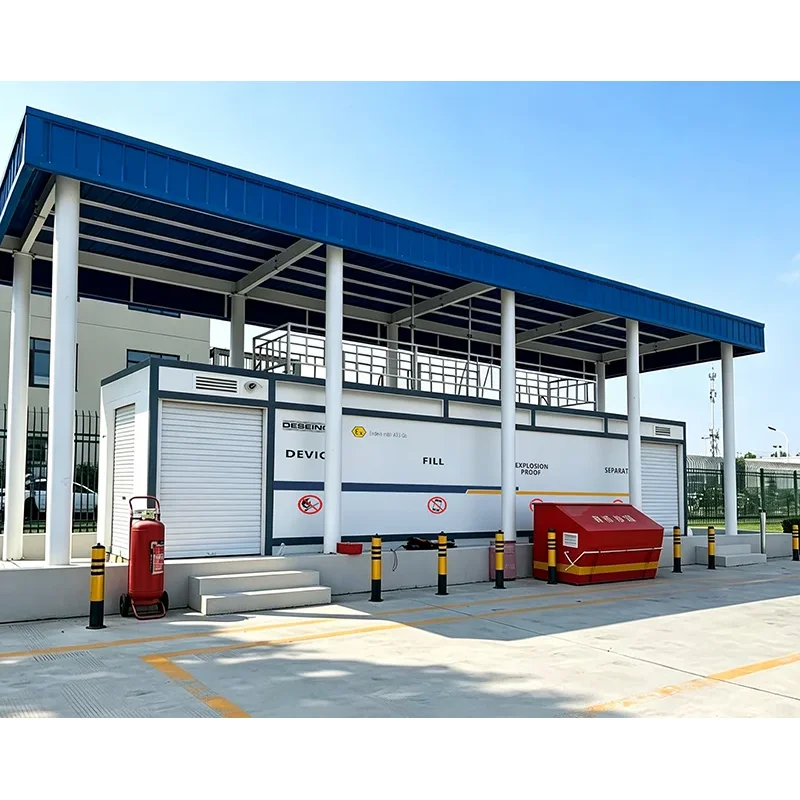

This skid-mounted fuel station is configured with two fuel dispensing islands, two fuel dispensers and four fuel nozzles.
It adopts an open CPU communication protocol, supporting docking with IC card management systems.
A built-in dual-position water tank is fitted with valve control, enabling flexible switching between single-tank and dual-tank working modes.
The effective usable tank capacity is 68,000 L.
It features dual storage compartments and dual oil pumps with a maximum flow rate of 35 m³/h. Standard configurations include liquid level monitoring system, high-liquid-level alert, overflow protection alarm and integrated fire suppression system.
Two manhole covers are installed on the tank top, matched with an all-weather automatic pressure relief device set to 24 kPa relief pressure.
High-temperature resistant cables rated for 70°C working temperature are used throughout the equipment.
| External maximum dimensions (Excluding the height of the guardrail) | Length | 12192mm |
| Width | 2438mm | |
| Height | 2100mm | |
| Rated capacity | 40m³ | |
| Unladen weight | 16700kg | |
| Temperature | -40°C~60°C | |
| Manhole diameter | 580mm | |
| Emergency pressure relief value | 21-35kPa | |
| Breathing valve | DN50 -295Pa~2000Pa | |
| Barrier explosion-proof materials | Type IV | |
| Paint | Epoxy zinc-rich primer + epoxy cloud iron intermediate paint + polyurethane topcoat | |
| Operating voltage | Three-phase five-wire 380V | |
| Maximum power consumption per unit when loaded | 14Kw | |
