YB series self‑priming rotary vane pump with internal by‑pass valve, nodular iron construction. Features adjustable relief valve, high reliability, handles viscous & volatile liquids for LPG and fluid transfer applications.
YB series Self Priming rotary vane pump with internal by‑pass valve.The Pumps Use a rotor with sliding vanes to draw the liquid. The
material of construction is nodular iron with sliding vanes built in a special self lubricating material. Due to its efficiency the pumps can handle viscous and also volatile liquids and require less horse power than other equivalent pumps. The pumps are capable of higher flow‑rates at
lower number of revolutions than other designs.

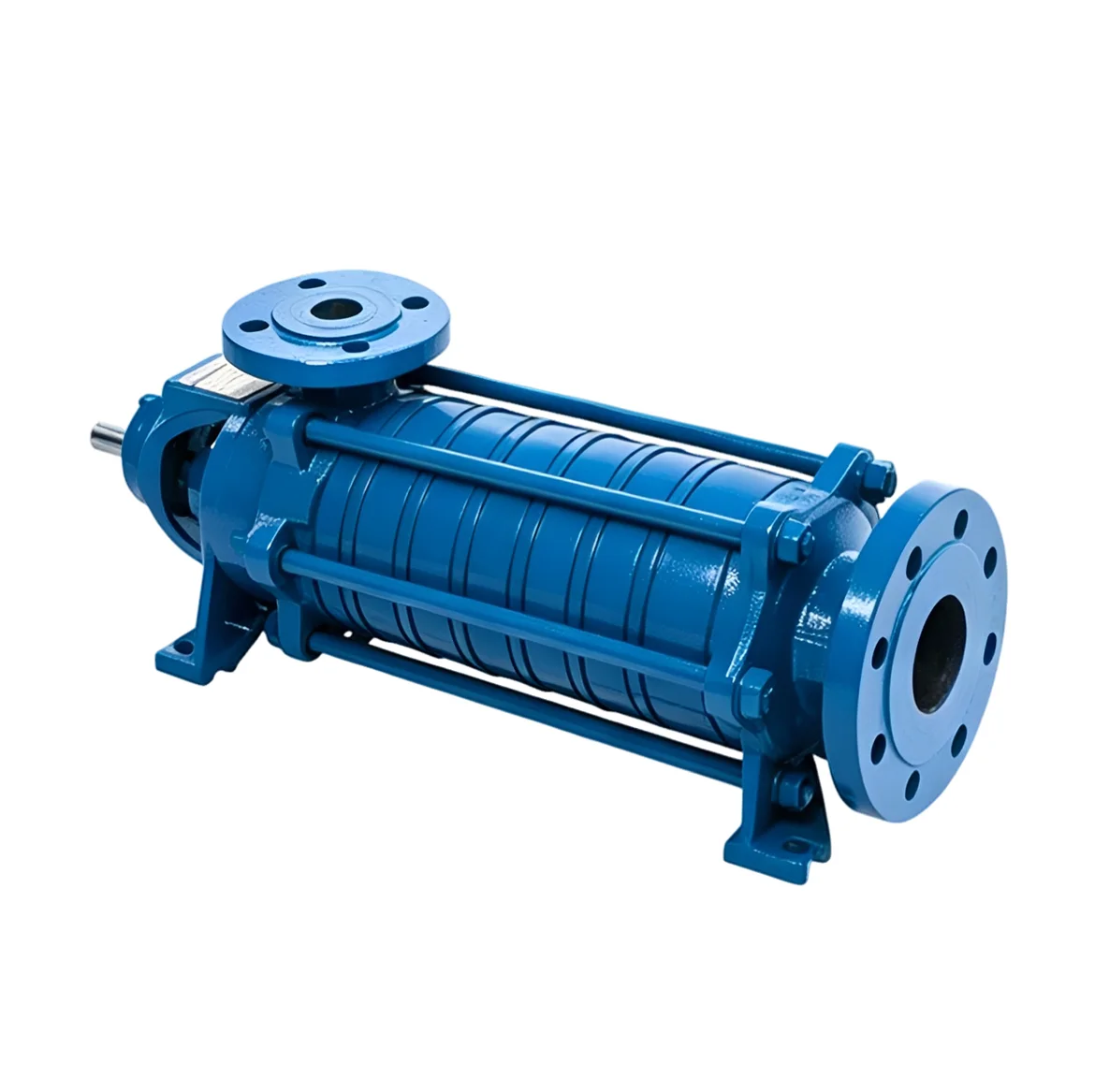

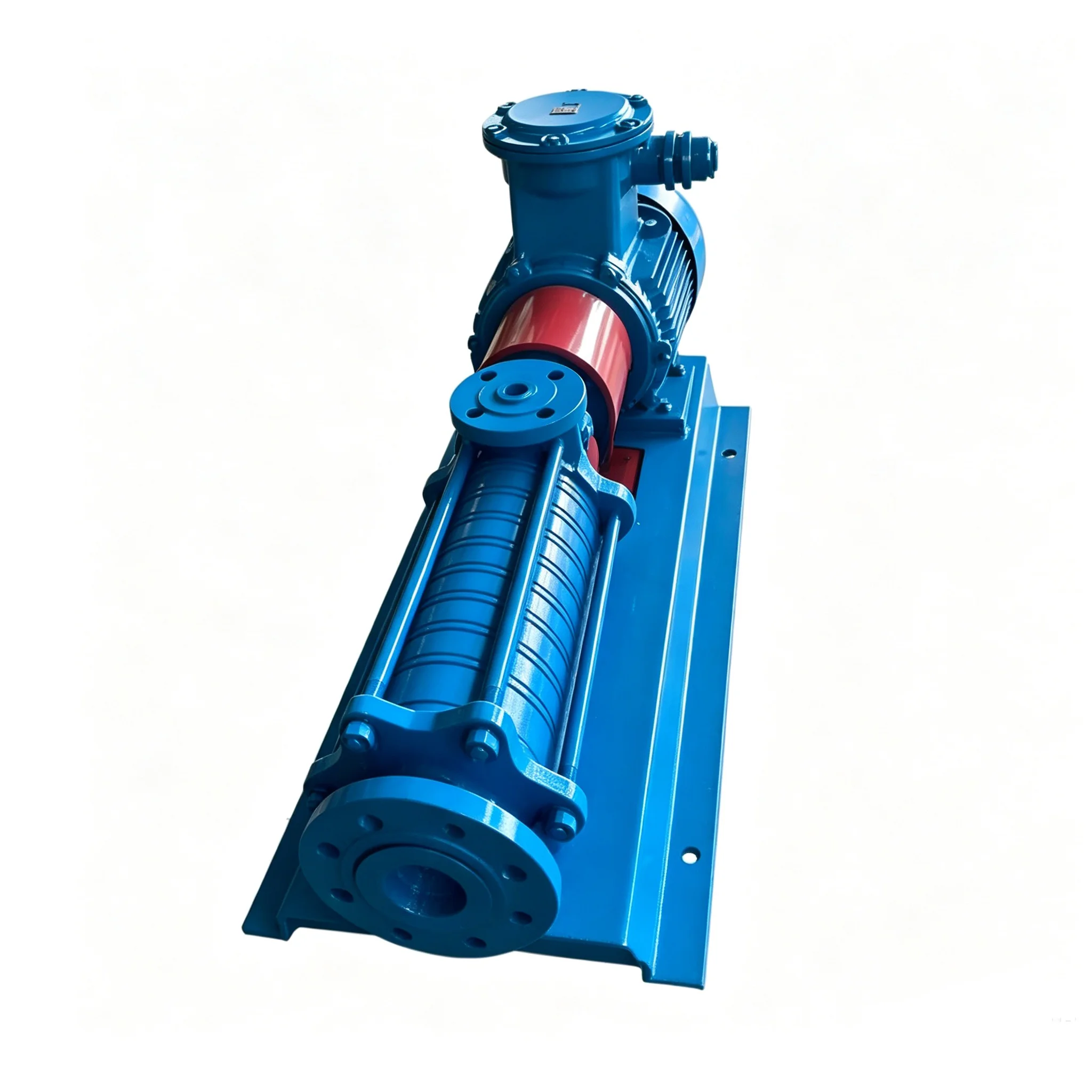

Product Name | LPG Centrifugal Pump kit | Application | Fuel Servicing Equipment |
Model Number | LPGP65/85 | Kind | Fuel Station Accessories |
Material | Nodular cast iron | Self - Priming Lift | ≤6m |
Working Voltage | 380V/50Hz | maximum pressure differential | 1.5 MPa |
Brand Name | DESEINOR | Flow rate | 5.5 m³/h |
Place of Origin | China | Inlet and outlet flange diameters | Inlet DN65- Outlet DN25 |
Working Pressure | 2.5 MPa | Anti-hazard classification | Ex d II BT4 |
LPGP65 Packing Size | |||
L*W*H(CM) | 112*41.5*58 | ||
QTY/CTN | 1SET/CTN | ||
N.W(KGS) | 140KGS | ||
Durable pumps for fast and quiet operation Sliding vane design provides sustained performance and trouble free operation, high reliability
Adjustable relief valve protects pump from excessive pressure. T‑type strainers are available to protect pumping system from damage caused by welding slag and foreign matter in the piping and tanks.
