DESEINOR YB series positive displacement pumps are engineered for flammable volatile media including LPG, dimethyl ether, propane and light fuel oil. This V-belt driven explosion-proof unit features flameproof motor, integrated cast iron base and built-in overflow relief valve. Widely applied in tank truck handling, gas station liquid unloading and mini LPG storage stations for safe medium transfer.
DESEINOR YB series pumps adopt positive displacement conveying structure, specially developed for transporting volatile, flammable and explosive media such as liquefied petroleum gas (LPG), dimethyl ether, propane, butane and light fuel oil.

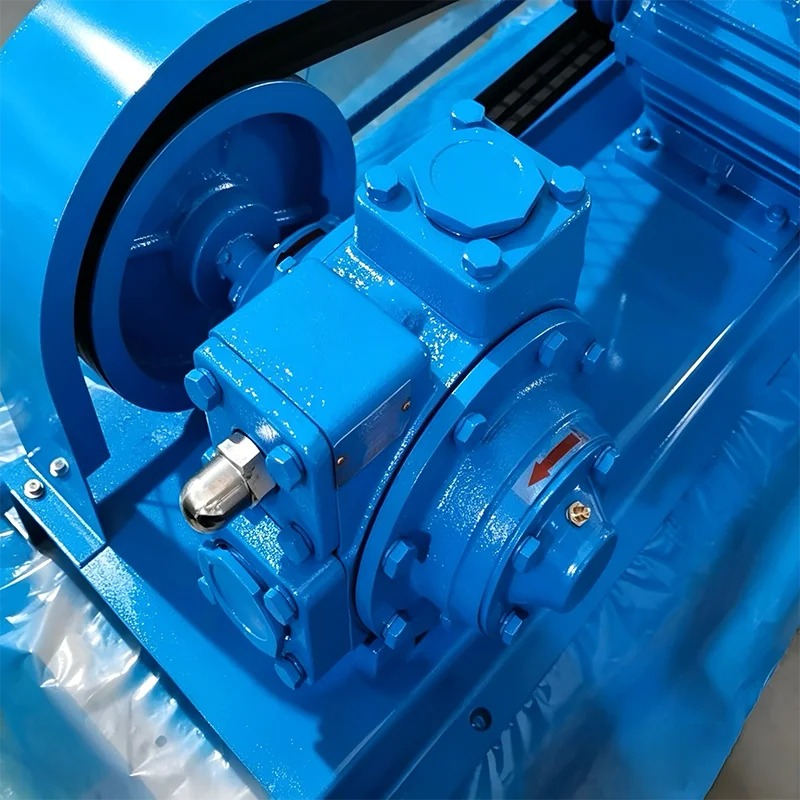

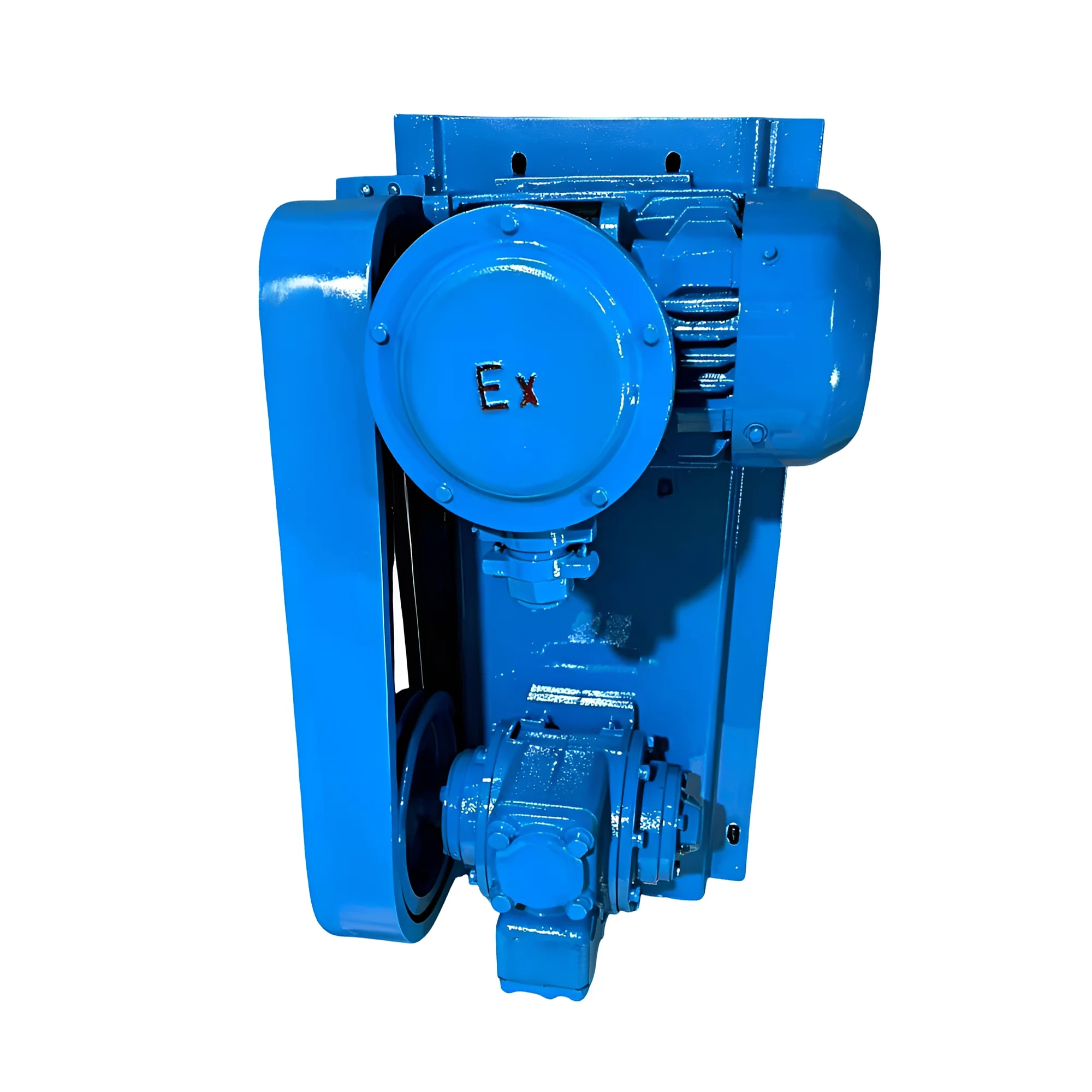

The model shown in the figure is an explosion-proof complete unit with V-belt drive, equipped with standard flameproof explosion-proof motor and integrated cast iron base. An overflow pressure relief valve is built inside the pump body. It is a general transfer pump for tank truck loading and unloading, liquid unloading at gas filling stations, and medium transportation in small LPG storage and distribution stations.
Product Name | YB Vane pump kit | Application | Fuel Servicing Equipment |
Model Number | YB50/65 | Kind | Fuel Station Accessories |
Material | Nodular cast iron | Self - Priming Lift | ≤6m |
Working Voltage | 380V/50Hz | maximum pressure differential | 0.6 MPa |
Brand Name | DESEINOR | Flow rate | 8~60 m³/h |
Place of Origin | China | Inlet and outlet flange diameters | DN40-DN80 |
Working Pressure | 2.5 MPa | Anti-hazard classification | Ex d II BT4 |
Packing Size | |||
L*W*H(CM) | 91*61*69.5 | ||
QTY/CTN | 1SET/CTN | ||
N.W(KGS) | 155KGS | ||
