Mobile Metered Fuel Transfer Assembly

Product Overview

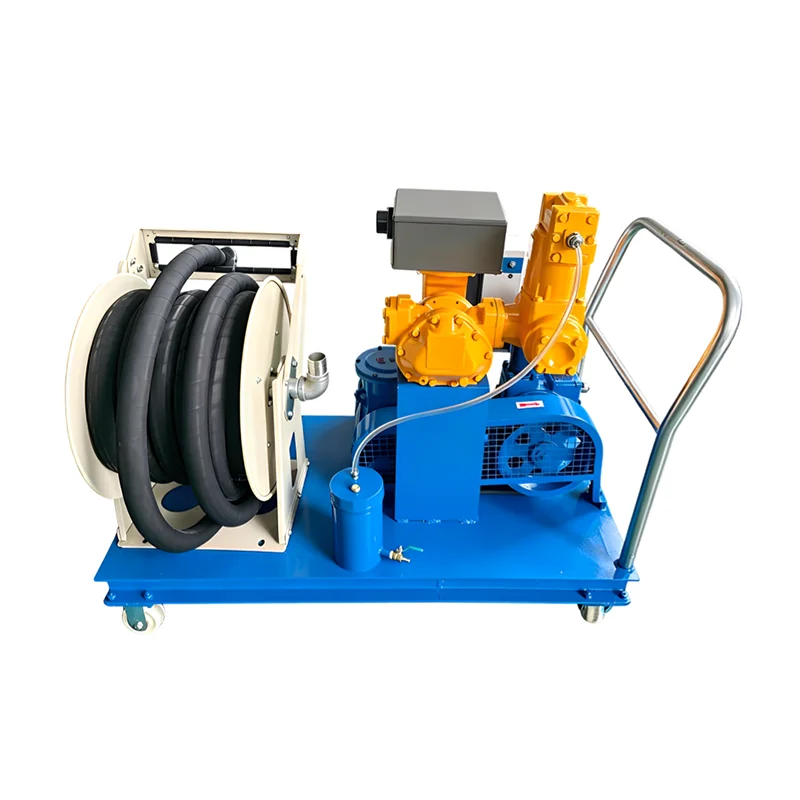

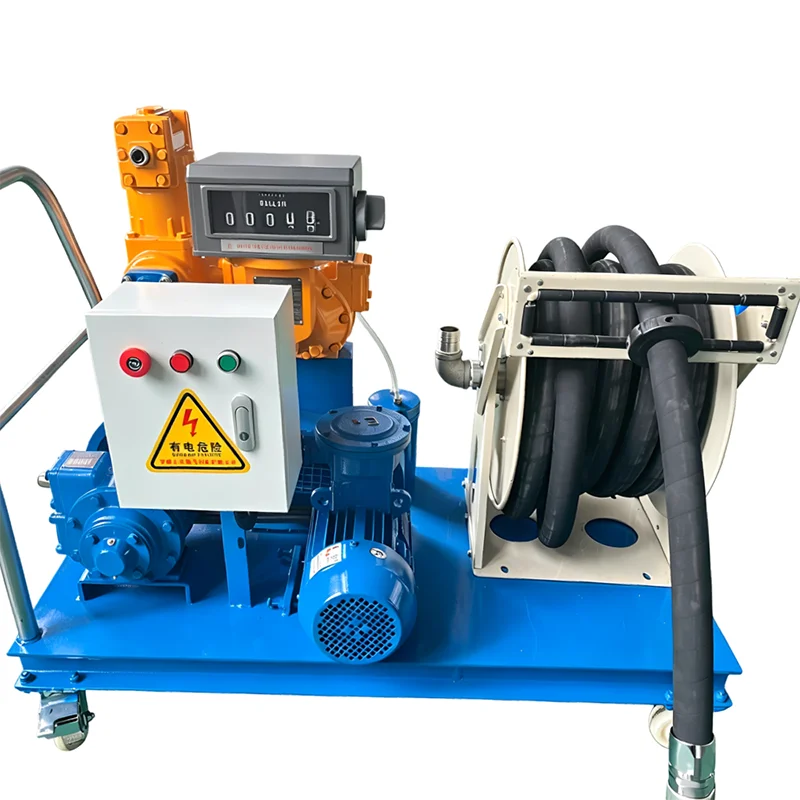

DESEINOR Mobile Metered Fuel Transfer Unit

Product Introduction

Integrated mobile oil conveying & metering system, assembled with explosion-proof motor, self-priming gear pump, positive displacement flow meter, auto hose reel, control cabinet, filter and vapor separator. Designed for metered loading, unloading and transferring of diesel, kerosene and other refined oil. Widely used in construction sites, oil depots, skid-mounted stations and fleet fuel supply.

With casters and push handle for flexible movement. Full explosion-proof structure complies with fuel operation safety standards. LC oval gear flow meter ensures stable accurate measurement with total flow display. Auto-retractable hose reel keeps hose neat. Support customization on flow rate, dimension, power supply; CE certification available.

Technical Parameters

• Type: Mobile Explosion-proof Metered Fuel Transfer Unit (with hose reel)

• Suitable Media: Diesel, kerosene, light oil

• Flow Meter: LC Oval Gear Positive Displacement Meter

• Measurement Accuracy: ±0.2%~±0.5%

• Standard Caliber: DN50 (2") / DN80 (3") optional

• Pump: Self-priming rotary gear pump

• Flow Range: 50~250 L/min

• Motor: Explosion-proof 3-phase motor (2.2kw /3kw optional)

• Control System: Explosion-proof control box, start/stop & emergency stop buttons

• Standard Accessories: Vapor separator, filter, auto hose reel, oil-resistant rubber hose

• Voltage: 380V (220V optional)

• Structure: Mobile trolley with brake casters

• Optional Function: Quantitative fuel control
