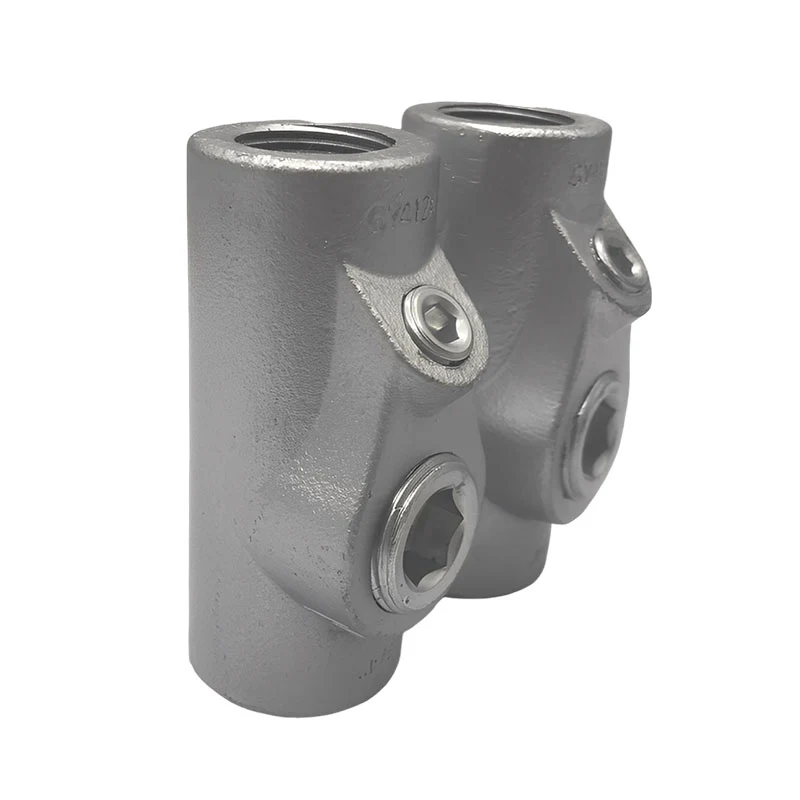

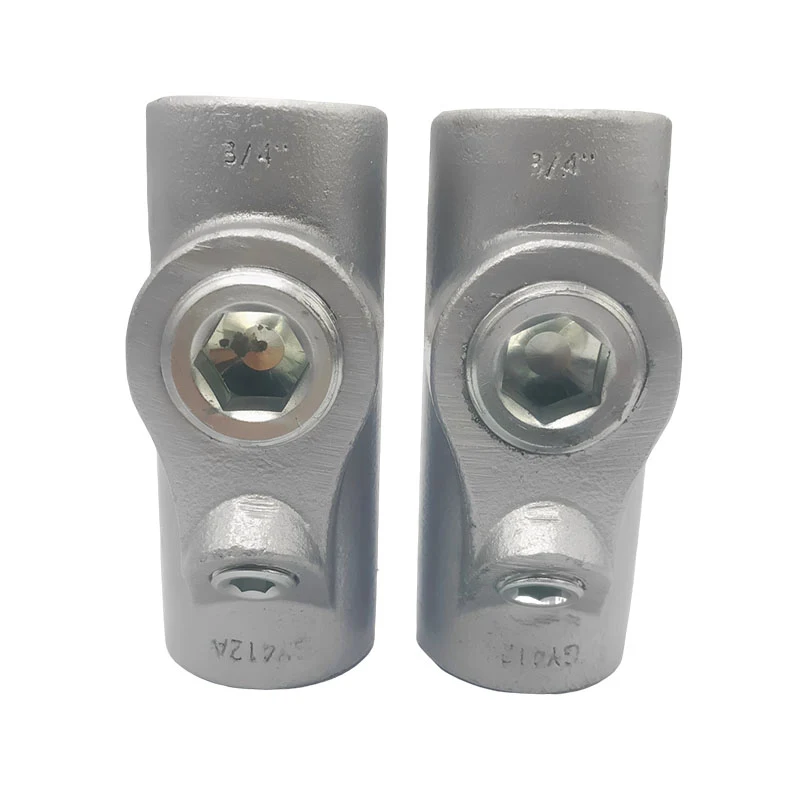

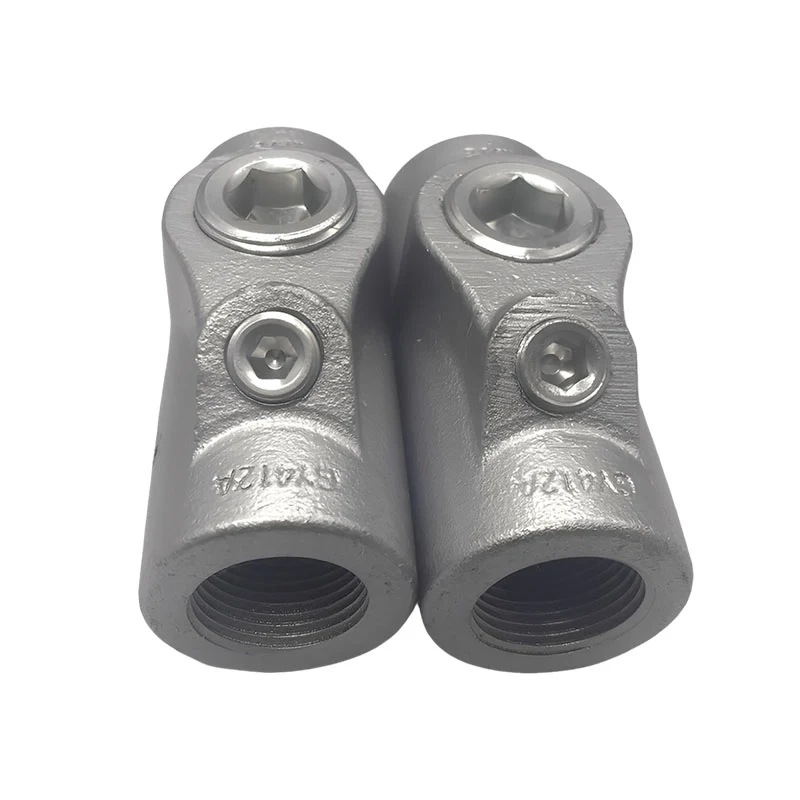

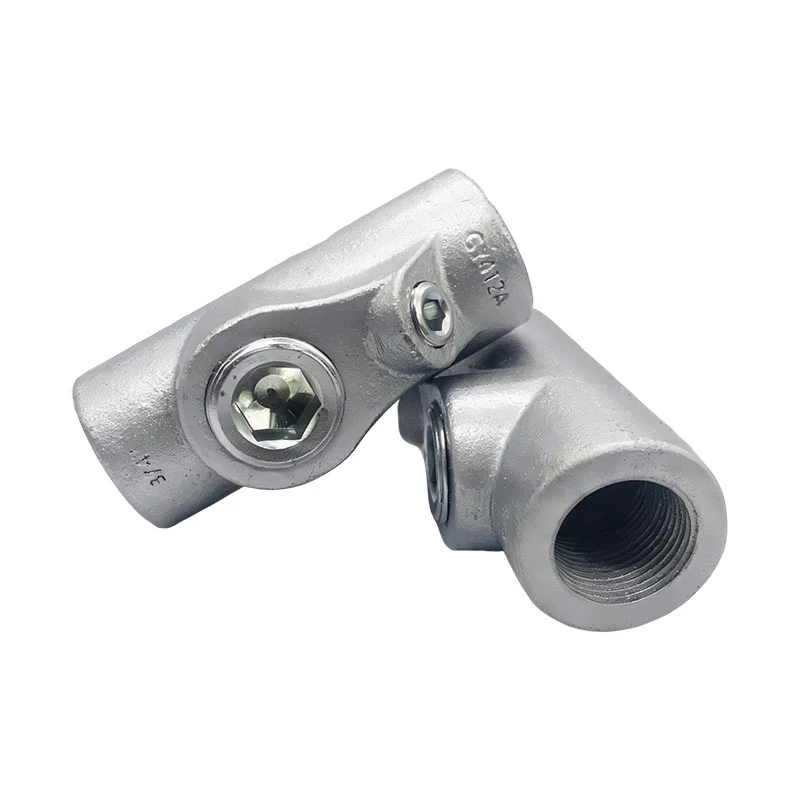

Cast steel explosionproof conduit sealing fittings for RMC and IMC networks; the fitting restricts gas, vapor, and flame migration to limit pressure buildup in hazardous electrical installations.
Engineered for safe containment in hazardous locations, the DESEINOR explosionproof conduit sealing fitting provides a gas-tight seal for threaded Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC) systems. This fitting features versatile installation in both vertical and horizontal conduit runs, maintaining optimal sealing performance when configured at or below the 40% conductor fill threshold.
The fitting restricts the migration of gases and vapors, arrests flame propagation between electrical enclosures, contains internal explosion within the sealed conduit section, and limits dangerous pressure buildup. This robust cast steel construction makes it a reliable isolation solution for hazardous industrial environments containing flammable gases, vapors, metal dust, or other combustible dusts.
Product Name | Fuel dispenser sealing joint | Application | Fuel Dispenser Accessaries |
Model Number | GY412A | Kind | Fuel Station Accessaries |
Material | Cast Steel | Surface Treatment | Polishing |
Nominal Size | 1.5” | Working Temperature | -40℃~+70℃ |
Brand Name | DESEINOR | Catheter direction | Horizontal/Vertical |
Place of Origin | China | Installation Method | Thread |
Thread Type | NPT/BSP | relevant standard |
CSA C22.2 No 30 |
Packing Size | |||
L*W*H(CM) | 5.2*4*9.5 | ||
QTY/CTN | 1PCS/Box | ||
N.W(KGS) | 0.5KGS | ||
