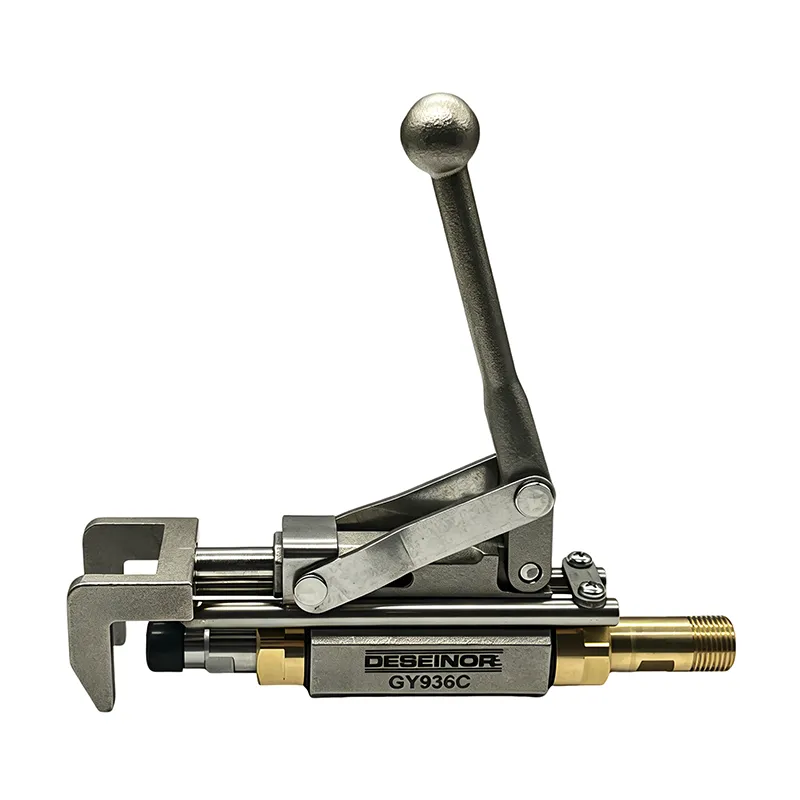

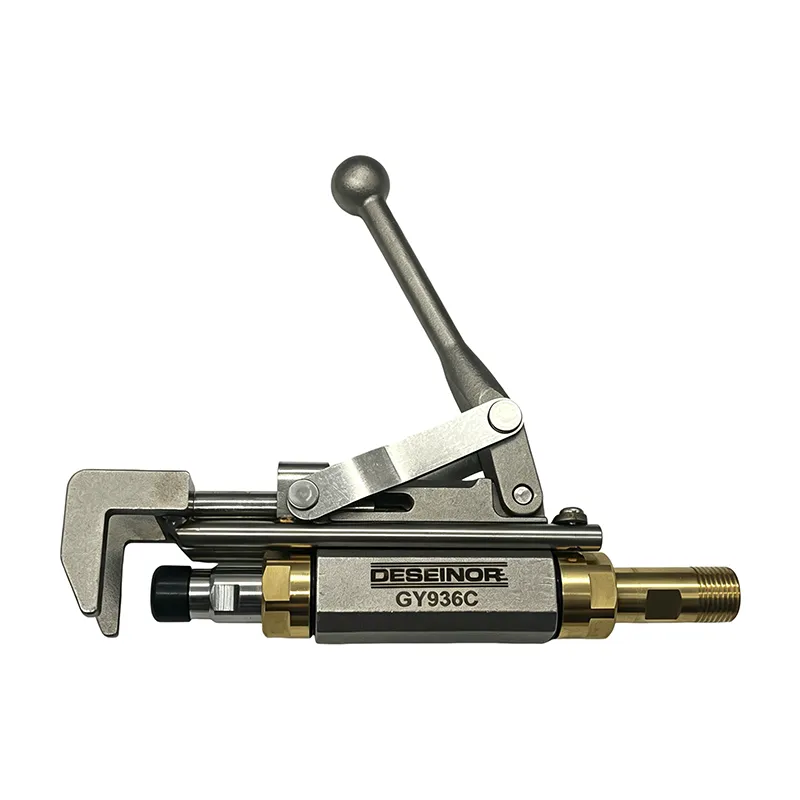

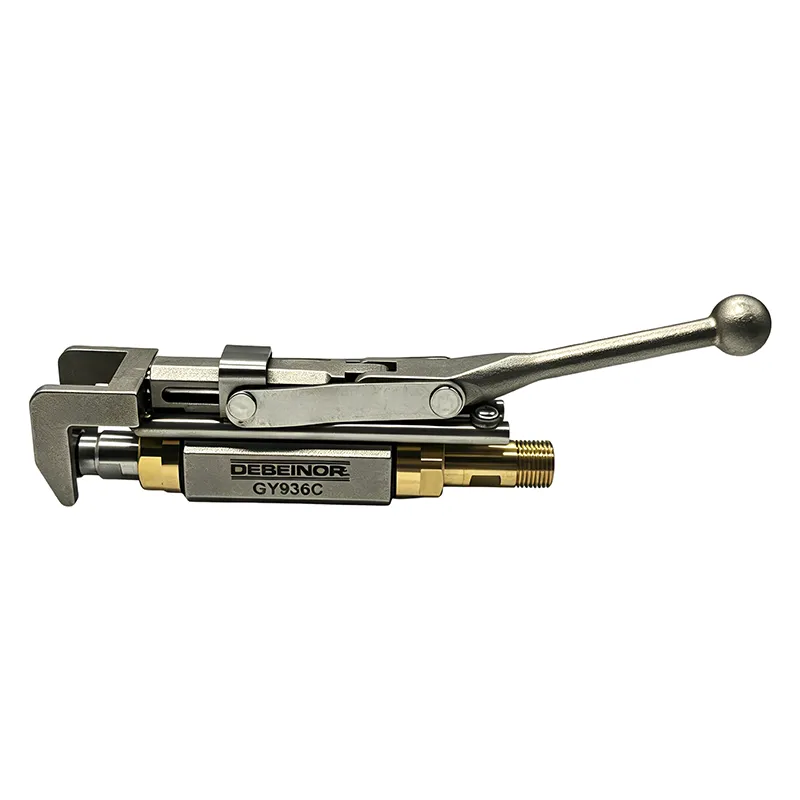

DESEINOR GY936C Manual Clamping Filling Nozzle offers quick sealing for gaseous media with stainless steel body, brass connectors and lever clamping design.
DESEINOR GY936C Manual Clamping Filling Nozzle is specially designed for gaseous media and features quick sealing filling, widely compatible with various gas assemblies.
The product adopts a stainless steel body with brass connectors and a mechanical lever clamping structure. Quick clamping and sealing is realized via the manual handle with no additional air supply required. Equipped with precision internal sealing components, it delivers excellent pressure resistance and effectively prevents medium leakage during filling.
Boasting a robust overall structure, simple operation and fast assembly & disassembly, it fits filling ports of corresponding specifications and serves as a reliable supporting component for gas filling operations such as light hydrocarbons.
Product Name | Stainless Steel Filling Nozzles | Application | Gas filling Nozzle |
Model Number | GY936C | Kind | Fuel-servicing Equipment |
Material | Stainless Steel | Norminal Pressure | 1.6MPa |
Inlet Specifications | 3/4inch | Thread type | BSP/NPT |
Imported vacuum degree | ≥54kPa | Outlet Pressure | ≤0.3MPa |
Brand Name | DESEINOR | Measuring Accuracy | ±0.3% |
Original Country | China | explosive-proof grade | Ex dmⅡBT4 |
Packing Size | |||
L*W*H(CM) | 30*5*6 | ||
QTY/CTN | 1PCS/CTN | ||
N.W(KGS) | 1.8KGS | ||
