DESEINOR offers barrier explosion-proof skid-mounted fueling stations with 20 years manufacturing experience, customizable 5000L-75000L tanks, CE & UL certified, supporting IoT, IC card & vapor recovery, ideal for mines, logistics parks and construction sites.
DESEINOR complies with UL142 manufacturing standards and has complete design solutions. We have delivered multiple projects of mobile fuel stations and container‑type fuel stations for customers worldwide.
This product uses double islands, 4 refueling machines, and 8 refueling guns. CPU open protocol, you can contact the IC card management system. The built-in water tank has 2 positions, controlled by a valve, and can be switched between single/double use. The tanks are actually used. Capacity 20000L.
Stainless steel guardrails, solar LED lighting，Developed a new function, the automatic discharge valve, which can directly discharge the liquid after cleaning the tank, and added a visual flange to observe the flow direction of the liquid at any time
Equipped with dual fire extinguishers, smoke alarm system, explosion-proof lighting，The operating system is explosion-proof to close and open, set parameters, and the tank is made of 8MM standard Q235 material, in line with UL certification standards. Dual machines, 4 fuel nozzles, 50-75L per minute refueling options are available，Equipped with a 10-meter reel and retractor to facilitate remote refueling
Explosion-proof liquid level system, expandable APP port development, liquid high and low level display and alarm light flashing, liquid level synchronization when refueling, data recording, network connection to the device, dual bins and dual displays, English, Arabic and other languages can be set.
Product Name | 20000L mobile fuel station | Application | Fuel Station |
Model Number | 20000L | Kind | Fuel-servicing Equipment |
Material | Q235 | Emergency pressure relief | 21-35kPa |
Surface Treatment | Epoxy zinc-rich primer + epoxy mica intermediate coat + polyurethane topcoat | temperature range | -40℃~+70℃ |
Brand Name | DESEINOR | Max Power | 8Kw or 14Kw |
Working Voltage | 220V/380V | Conditions | New |
Relevant standard | UL142 tank standard design and manufacturing | Installation Method | Parallel Placement |
Packing Size | |||
L*W*H(CM) | 650*290*320 | ||
QTY/CTN | 1 | ||
N.W(KGS) | 9500KGS | ||
We boast 20 years of professional manufacturing experience in skid-mounted fueling stations, with all products fully customizable to match clients’ unique demands.
Our sales team will conduct in-depth communication with you covering fuel station demands, site terrain and actual application scenarios. Our senior design engineers will then tailor exclusive mobile fuel station solutions for your project.
We have delivered R&D and customized design services for massive global clients and enterprise groups. IoT connection, IC card management and other smart control functions can be integrated as per your operational needs. Kindly share your detailed requirements, and we will provide one-stop customized solutions for you.

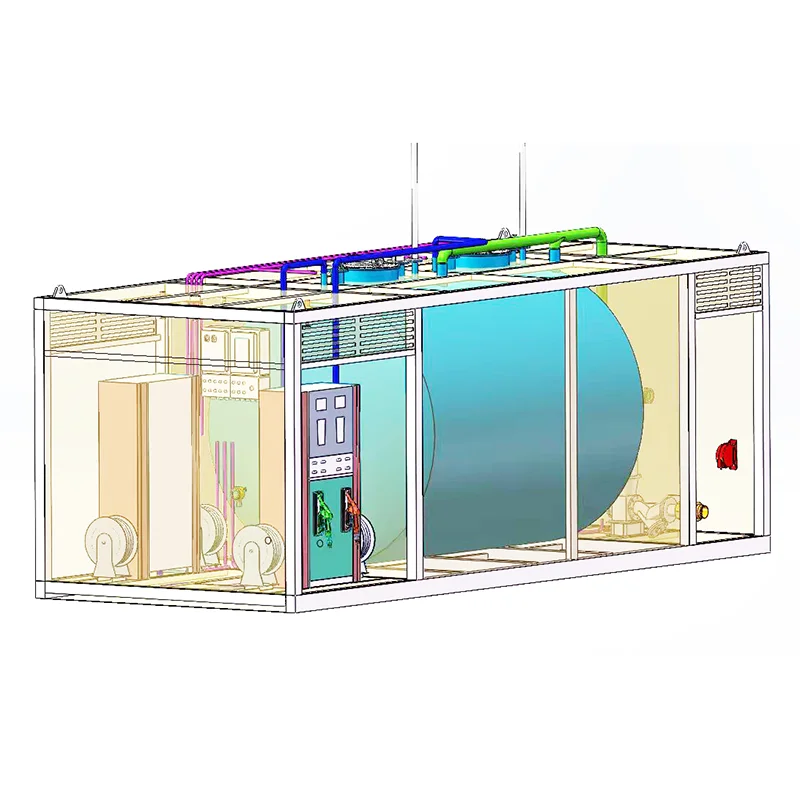

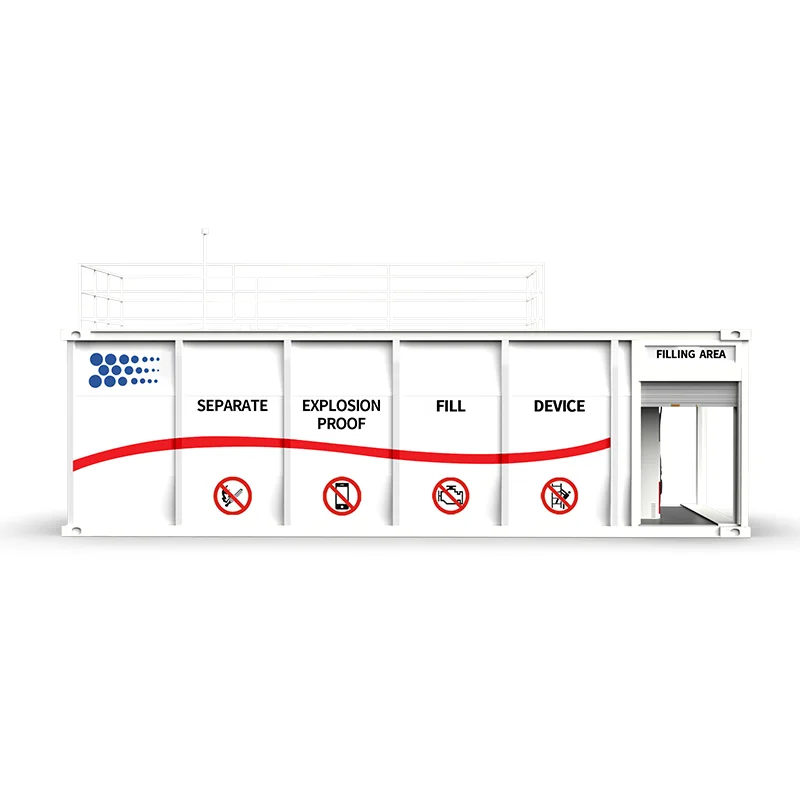

DESEINOR barrier explosion-proof skid-mounted fueling station integrates storage tank, fuel dispenser, vapor recovery device, automatic fire suppression and complete explosion-proof system. It passes national explosion-proof certification, with customizable tank capacity ranging from 5000L to 75000L. Standard-flow and high-flow refueling modes are both available. Featuring plug-and-play installation and simple operation, it is widely applied to internal fuel supply of factories, logistics parks, mines, construction sites and ports.
✅ Multi-Layer Explosion-Proof Safety Protection Filled with aluminum alloy explosion-proof medium inside the tank and adopting barrier explosion-proof tech, explosion-proof grade Exdeia mbII AT3 Gb. It owns UL & CE certificates and complies with GB/T27924‑2011. Equipped with automatic dry powder fire suppression, leak-proof, overflow-proof, anti-static and lightning-proof structures, it eliminates explosion hazards caused by open fire, collision or lightning strike.
✅ Multi-Nozzle Independent Control, Anti-Misfueling Design Independent display screens real-time monitor pressure, liquid level, fuel quantity, unit price and total cost. Separate start-stop buttons and emergency stop protection; single nozzle fault will not shut down the whole equipment. Color-coded red/green/orange nozzles identify gasoline, diesel and special fuels; separate tank compartments support mixed oil storage.
✅ Eco-Friendly High-Efficiency Vapor Recovery System Top-mounted vapor recovery unit paired with explosion-proof breathing valve reduces over 90% fuel vapor emission to meet environmental standards. Sealed leak-proof base avoids oil pollution. Optional 120L/min high-flow nozzles support rapid fleet refueling.
✅ Integrated Skid Structure, Easy Installation & Transfer Fully pre-assembled in factory. Only hardened ground and power supply are needed on site without complex civil construction. The whole skid can be lifted and relocated for repeated use on mines and construction sites. Modular design ensures easy maintenance and stable 24h unattended operation.
✅ Diversified Intelligent Customization Customizable tank volume, flow rate and nozzle quantity. Optional IC card payment, license plate recognition, remote monitoring, self-service refueling and liquid level detection. Carbon steel/stainless steel tank optional; solar power & foam fire suppression systems available.
🔹 Free customized solution design based on site condition, fuel consumption and oil types 🔹 Full compliance technical guidance for filing, inspection and equipment commissioning 🔹 Complete after-sales service: 2-year whole machine warranty, lifelong maintenance, on-site installation, debugging and staff training 🔹 Fast supply of original spare parts: fuel nozzles, flow meters, explosion-proof components
DESEINOR explosion-proof skid-mounted fueling station focuses on safety and personalized customization, supplying compliant, high-efficiency internal refueling solutions for global enterprises.
