DESEINOR sealing fittings connect RMC & IMC conduit, install vertical/horizontal with 40% wire fill rate. Seal gas vapor leakage, block flame spread, contain explosions for flammable gas, powder & dust hazardous electrical areas.
DESEINOR sealing fittings are used to connect RMC (Rigid Metal Conduit) and IMC (Intermediate Metal Conduit). They can be installed vertically or horizontally. The filling rate is 40%, and the filling amount of wires in the fitting should not exceed this value to ensure the sealing effect.
These fittings can seal the wires inside the conduits, minimizing the leakage of gases and vapors, preventing flames from spreading from one electrical device to another, confining explosions within the sealed conduits, and preventing pressure accumulation in the conduit system. They are suitable for hazardous locations where flammable gases, vapors, metal powders, or dust are present.

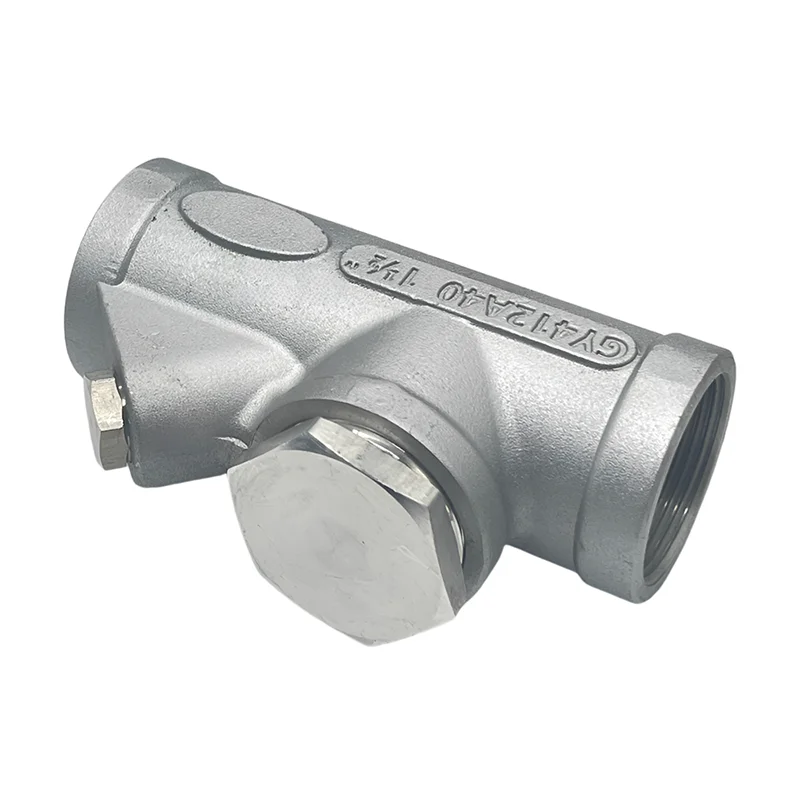

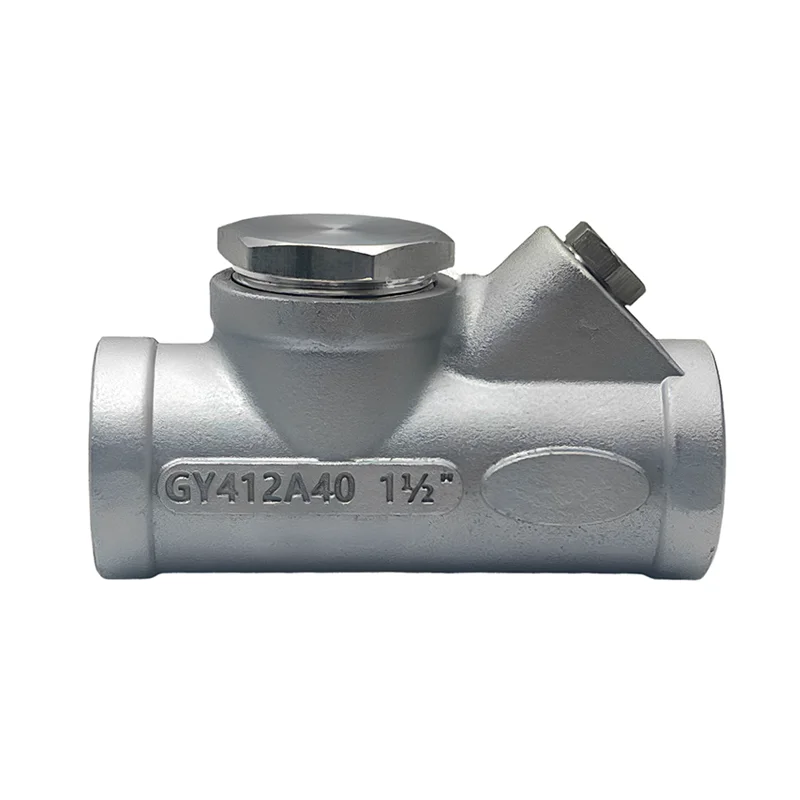

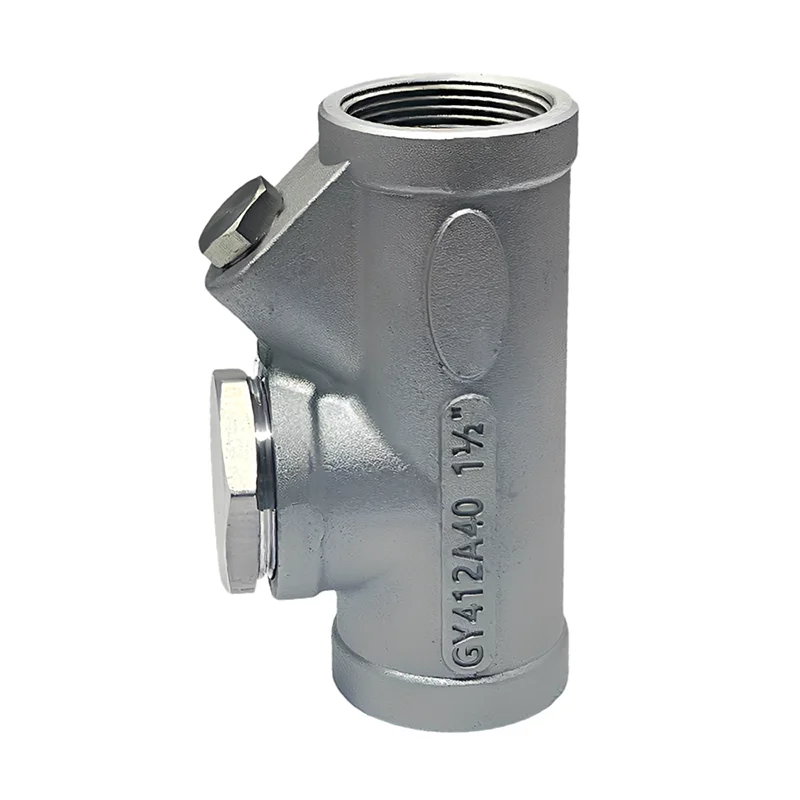

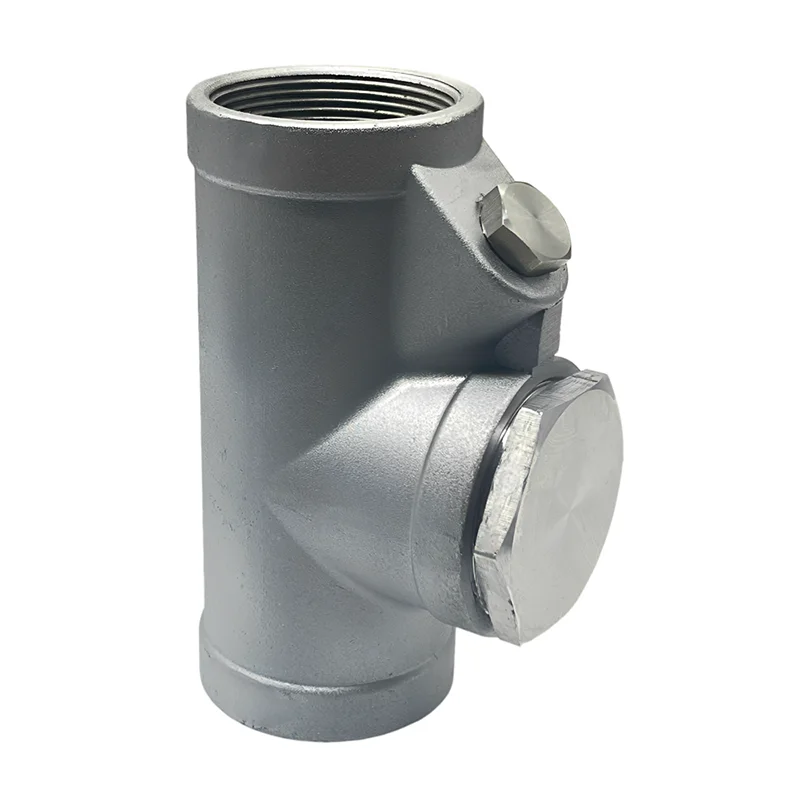

Product Name | GY412A40 Fuel dispenser sealing joint | Application | Fuel Dispenser Accessaries |
Model Number | GY412A40 | Kind | Fuel Station Accessaries |
Material | Cast Steel | Surface Treatment | Polishing |
Nominal Size | 1.5” | Working Temperature | -40℃~+70℃ |
Brand Name | DESEINOR | Catheter direction | Horizontal/Vertical |
Place of Origin | China | Installation Method | Thread |
Thread Type | NPT/BSP | relevant standard | CSA C22.2 No 30 |
Packing Size | |||
L*W*H(CM) | 15*6*9 | ||
QTY/CTN | 1PCS/Box | ||
N.W(KGS) | 0.65KGS | ||
