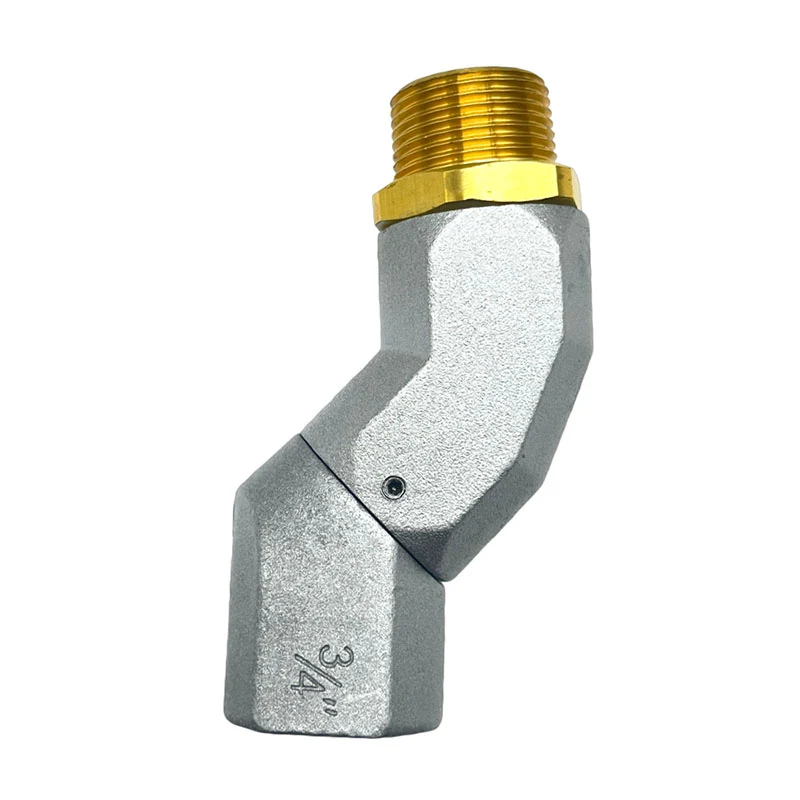

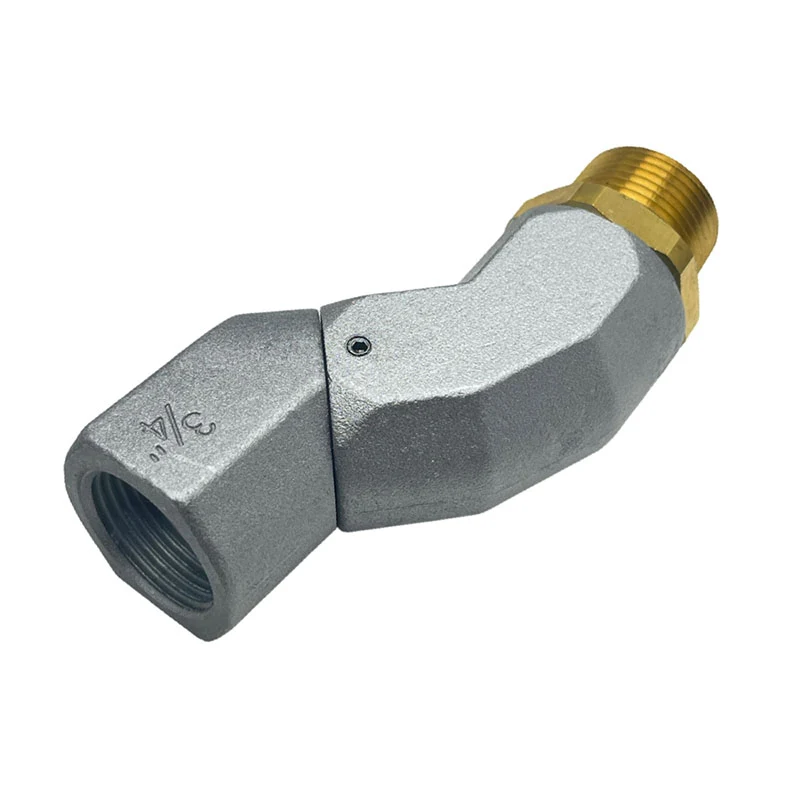

DESEINOR fuel hose swivels connect dispensing nozzles to fuel hoses and fuel dispensers to hose assemblies, helping maintain a secure, leak-resistant connection during fuel transfer.
DESEINOR fuel hose swivels connect dispensing nozzles to fuel hoses and fuel dispensers to hose assemblies, helping maintain a secure, leak-resistant connection during fuel transfer. They are suited to service stations, tank trucks, and mobile fueling systems handling gasoline, diesel, methanol, and other hydrocarbon fuels.
Precision-machined alloy bodies with chrome- or zinc-plated surfaces provide corrosion resistance, impact resistance, and electrical conductivity for static dissipation. The fuel hose swivels also integrate seals and a mechanical locking structure to help prevent leakage and loosening under high-pressure and during repeated connection and removal.
Product Name | Fuel dispenser hose swivel | Application | Fuel Dispenser Accessaries |
Model Number | GY-411A | Kind | coupling |
Material | Zinc and brass | Thread Type | BSP/NPT |
Nominal Diameter | 3/4” and 1” | Rotatable angle | 360° |
Brand Name | DESEINOR | Resistance | ≤10Ω |
Sealing Grade | IP65 | Installation Method | Thread |
Temperature | -30℃-80℃ | Applicable Media | Diesel, gasoline, kerosene, methanol, etc. |
3/4 inch Packing Size | |||
L*W*H(CM) | 5*6*12.5 | ||
QTY/CTN | 1PCS/Box | ||
N.W(KGS) | 0.4KGS | ||
