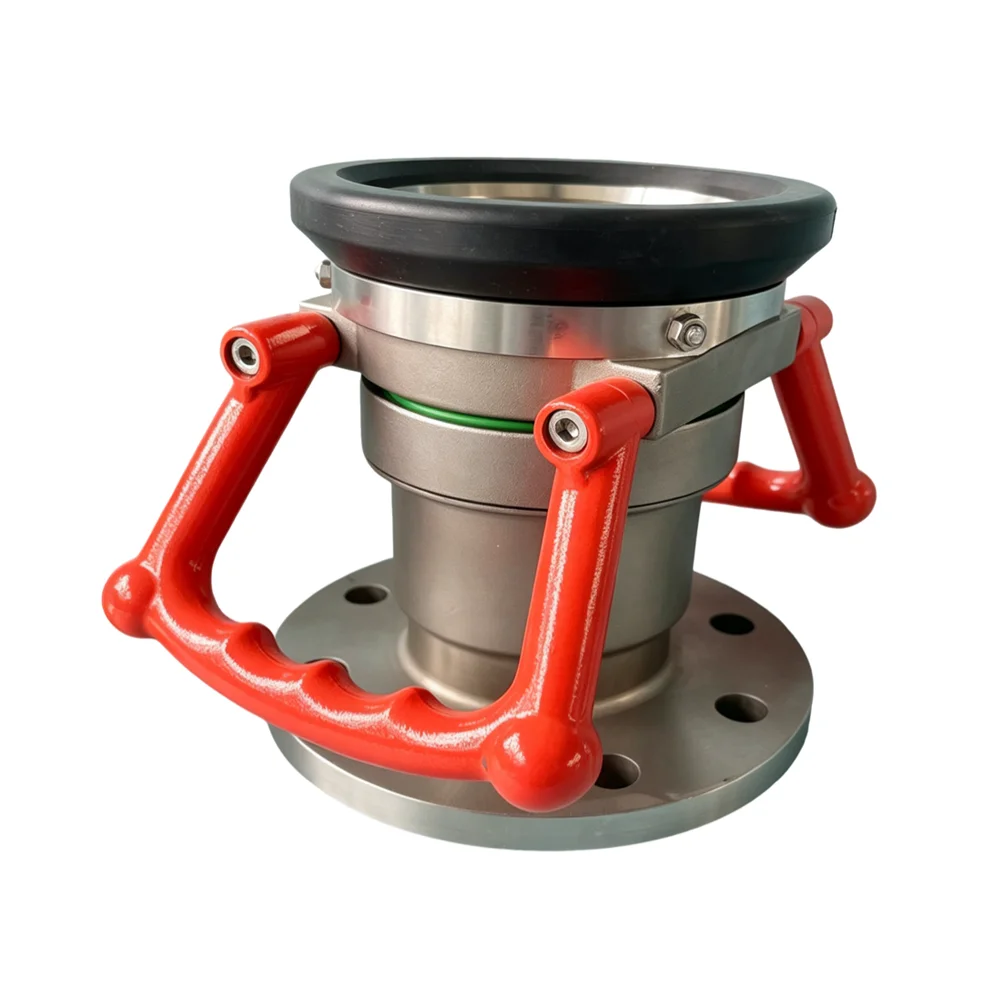

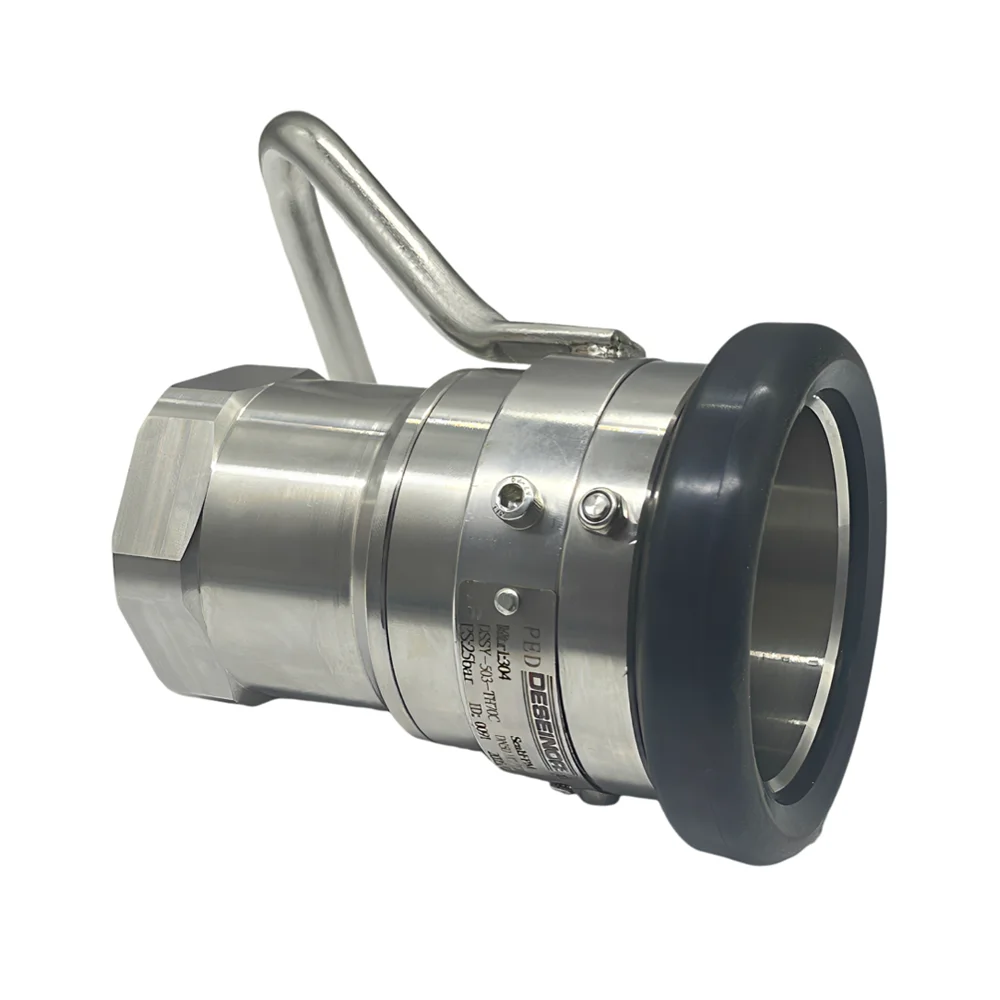

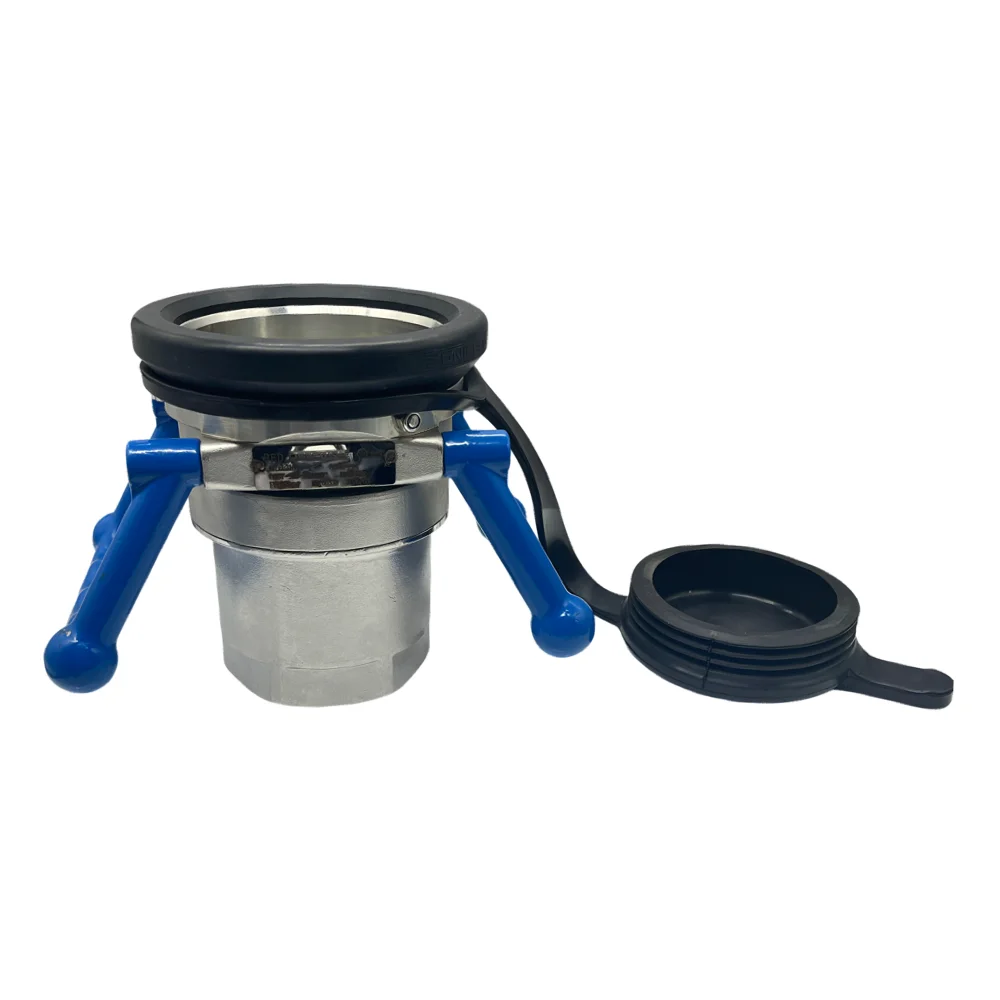

DESEINOR dry disconnect couplings achieve double-side auto sealing with zero leakage for chemical, petroleum & LPG filling systems. 2–8 inch, 316 stainless steel body, multi-type seals to cut medium loss & pollution.
Body: Standard 316 stainless steel (ASTM A351 CF8M 316 stainless steel for partial models) with excellent corrosion resistance. Custom materials including aluminum alloy, brass, Hastelloy, titanium alloy, PVDF and PEEK are available for special working conditions.
Seals: Optional PTFE, Viton FKM, NBR, EPDM and FFKM to fit various conveyed media and temperature ranges.
Product Name | Dry Joint | Application | Fuel Tanker Accessaries | |||
Model Number | DSSY-503 TH16 | Kind | Fluid Safety Components | |||
Material | Stainless Steel 316L | Nominal pressure | 1.6MPa | |||
Nominal Size | 2”/3”/4” | Working Temperature | -40℃~+200℃ | |||
Brand Name | DESEINOR | Sealing material | Perfluoroether/polytetrafluoroethylene | |||
Place of Origin | China | Max emergency flow | Maximum emergency flow | |||
Packing | Carton Box | Installation method | Flange connection/Thread | |||
4”Packing Size | ||||||

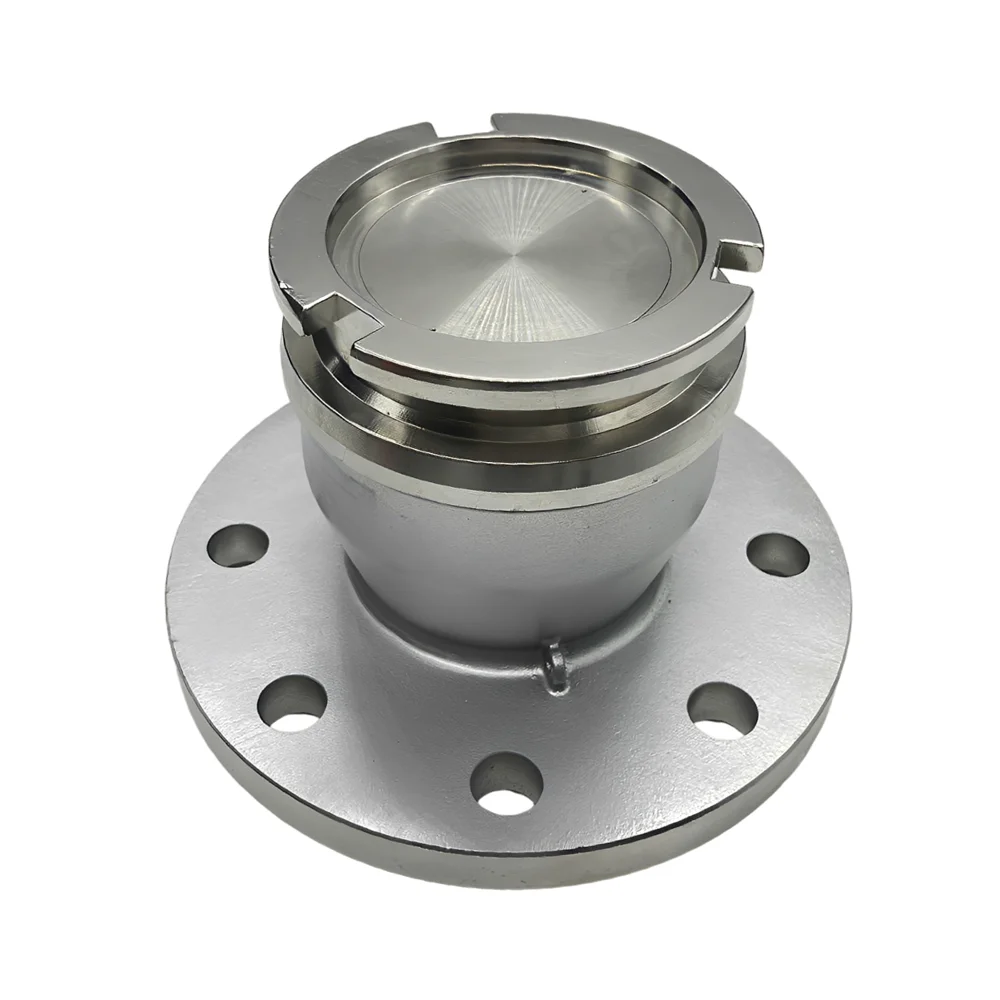

Female | Male | |||||
L*W*H(CM) | 23*26.5*27CM | L*W*H(CM) | 16.5**16.5*16CM | |||
QTY/CTN | 1PCS/Box | QTY/CTN | 1PCS/Box | |||
N.W(KGS) | 18.3KGS | N.W(KGS) | 5.9KGS | |||
Body materials: The standard body is built with 316 stainless steel, with selected models made from ASTM A351 CF8M cast 316 stainless steel. Customization options of aluminum alloy, brass, Hastelloy, titanium alloy, PVDF, and PEEK versions are available for special operating conditions.
Various seal options: Available sealing materials include PTFE, FKM, NBR, EPDM, and FFKM to suit different media and temperature requirements.
Tested vacuum performance: Selected configurations have been tested at vacuum levels up to 711 mmHg in any orientation, demonstrating leak-proof performance.
Long operating life: The dry disconnect couplers are designed for more than 500,000 opening and closing cycles.
Connection options: Threaded and flanged versions are available. Thread options include BSP and NPT in male or female configurations, while flange options can be supplied to ANSI, EN, TW, TTMA, and JIS standards for hose assemblies and tank equipment.
Safe, simple operation: Most configurations use a single-handle mechanism that combines locking, sealing, and disconnection. Additionally, the coupler is equipped with a mechanical interlock to prevent accidental opening during operation.
