DESEINOR dry disconnect couplings are professional hose connection components. Both sides can achieve automatic sealing when the hose end is disconnected from the fixed pipeline.
DESEINOR dry disconnect couplings are professional hose connection components. Both sides can achieve automatic sealing when the hose end is disconnected from the fixed pipeline. They are suitable for working conditions requiring quick connection and disconnection with zero leakage on fluid and gas pipelines, minimizing medium loss and avoiding contamination risks. Widely used in loading systems of chemical, petroleum, LPG and other industries.
The product greatly improves operation efficiency, effectively prevents medium spillage and contamination, and reduces environmental impact.
Product Name | Rotary Dry Coupling | Application | Industrial Connectors |
Model Number | DSSY-502-XZ70 | Kind | Connectors |
Material | Aluminum Alloy | Sealing Material | FKM |
Nominal Diameter | 2inch | Installation Method | Flange/Thread |
Brand Name | DESEINOR | Temperature range | -40℃~+70℃ |
Working pressure | 1.6MPa | After service | Online |
Packing Size | |||
L*W*H(CM) | 15*6.5*6.5 | ||
QTY/CTN | 1PCS/CTN | ||
N.W(KGS) | 0.6KGS | ||

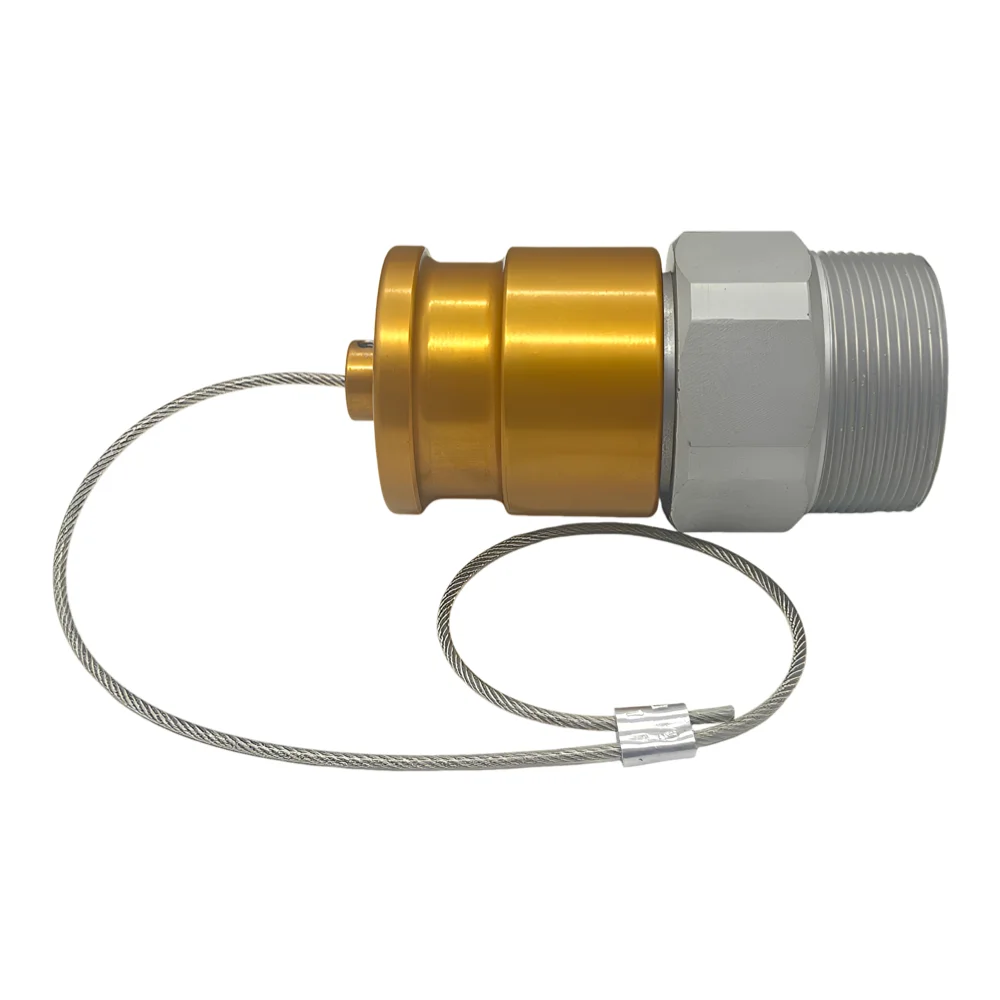

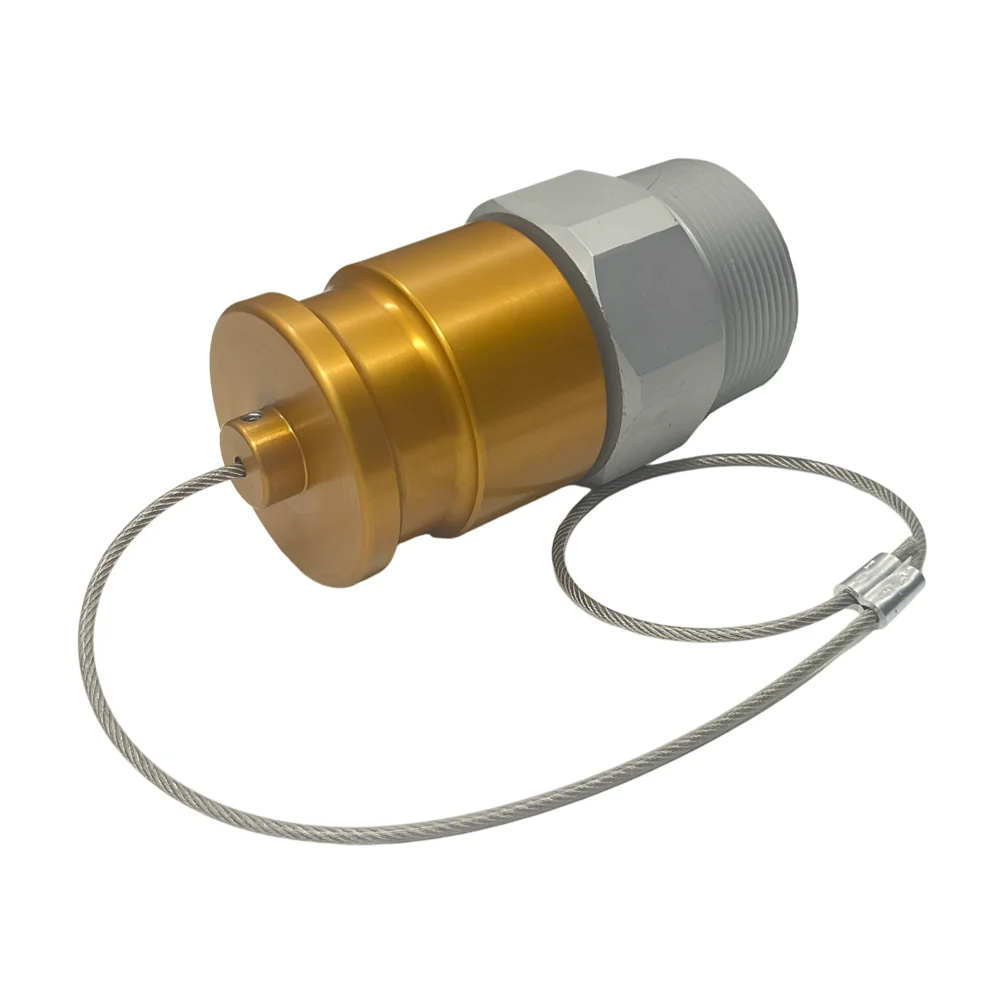

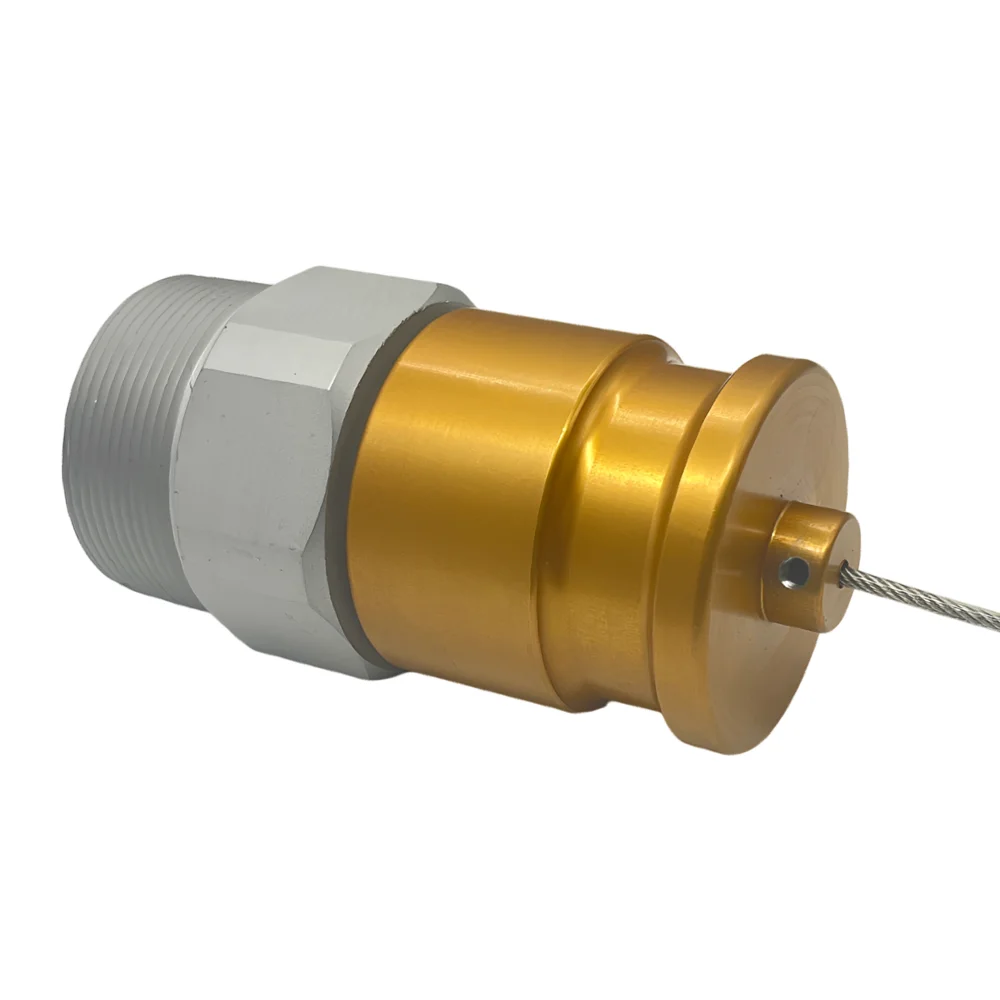

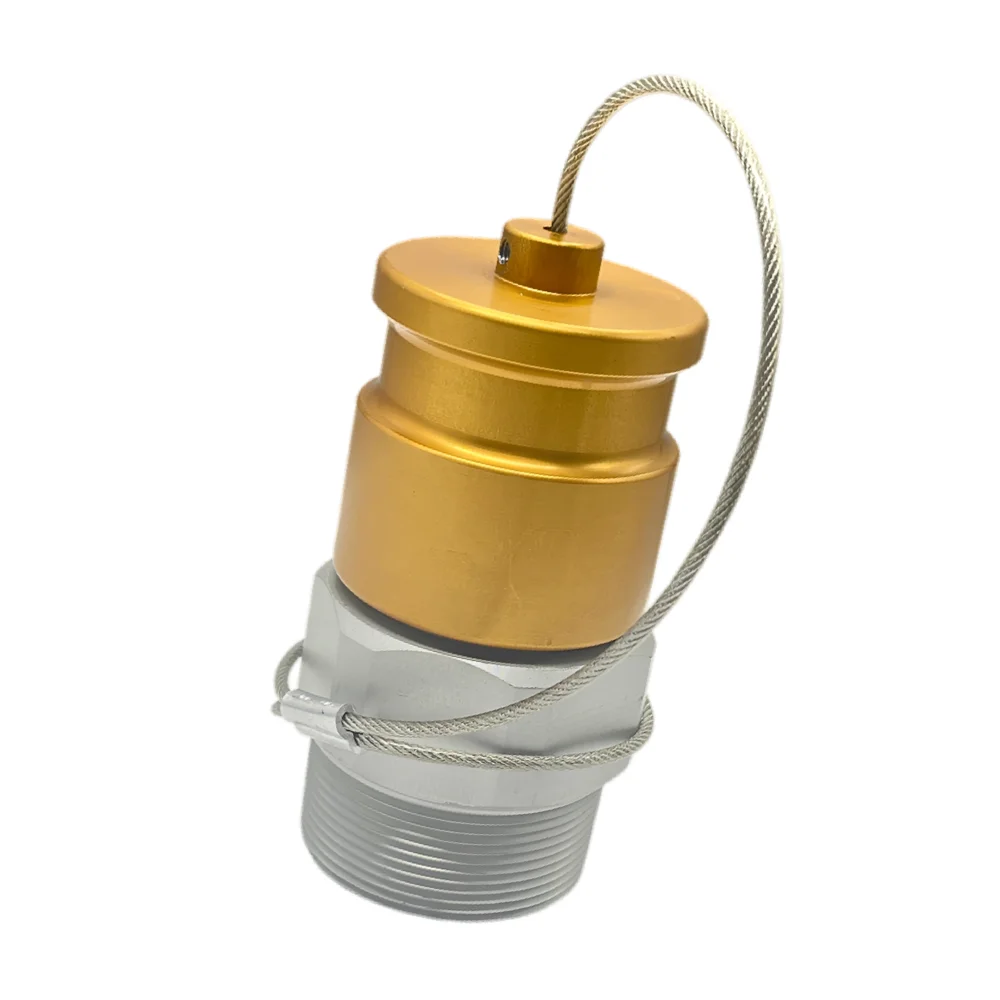

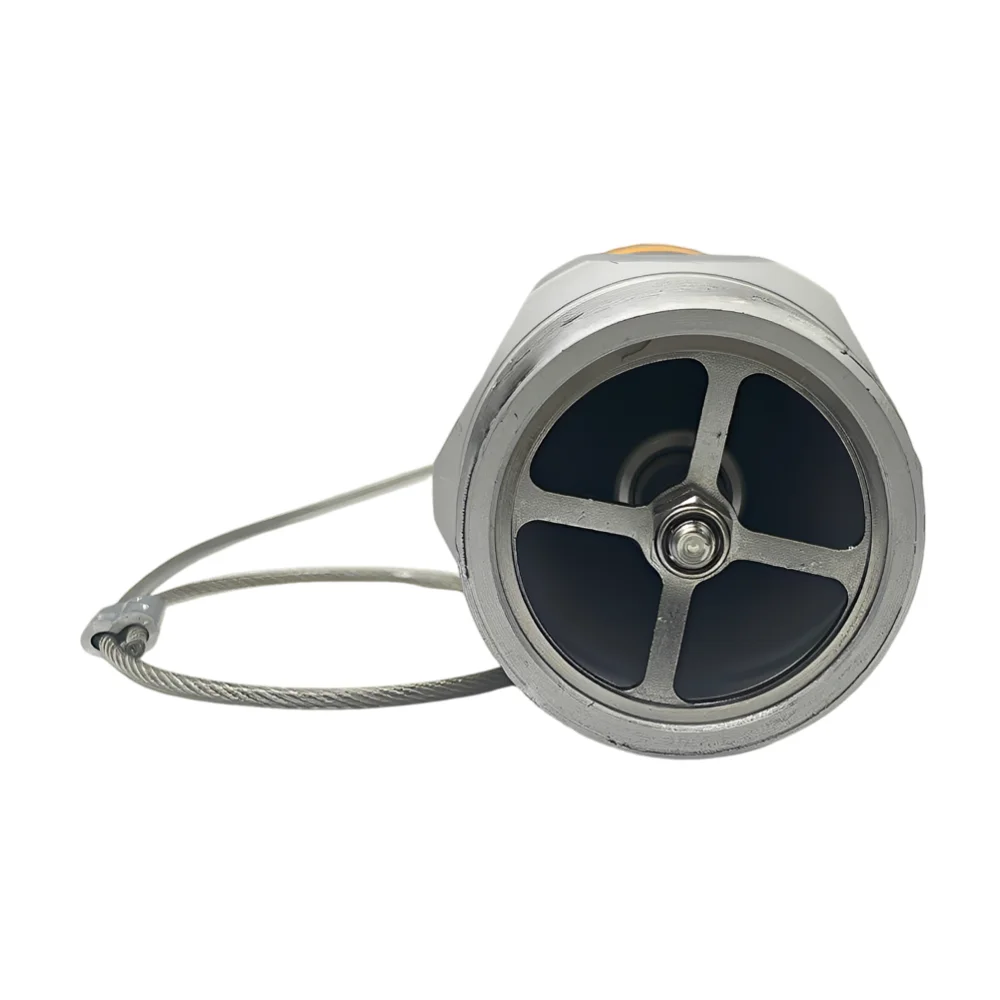

2 Inch Rotary Dry Coupling
