DESEINOR dry disconnect couplings with double-side auto zero-leak sealing for chemical, petroleum & LPG filling systems. 2–8 inch 316 stainless steel, high pressure resistance, mechanical interlock anti-misoperation design.

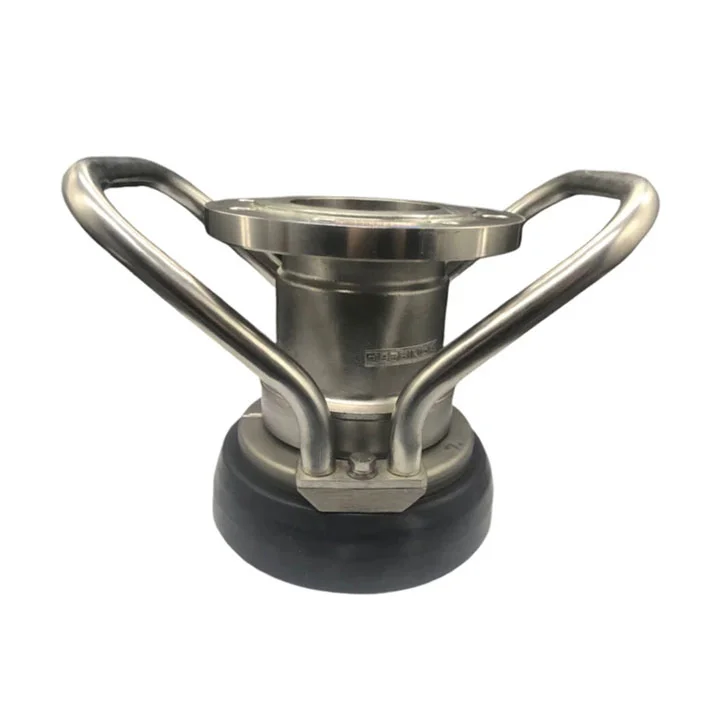

DESEINOR Dry Disconnect Coupling
Body: Standard 316 stainless steel (ASTM A351 CF8M 316 stainless steel for partial models) with outstanding corrosion resistance. Custom materials including aluminum alloy, brass, Hastelloy, titanium alloy, PVDF and PEEK are available for special service conditions.
Seals: Optional PTFE, Viton FKM, NBR, EPDM, FFKM to match diverse conveyed media and temperature ranges.
Working Pressure: Standard max working pressure 10–25 bar. 1" model withstands up to 210 psi (~14.3 bar), 100 psi (~6.9 bar version optional; overall safety factor reaches 5:1.
Operating Temperature: -7℃ to +110℃ with PTFE seals; some FKM seals resist high temperature up to 149℃.
Vacuum Performance: Tested units hold 711 mmHg vacuum without leakage in any installation position.
Flow Rate: Rated flow by size:
1" (DN25): 250 L/min, 2" (DN50): 900 L/min, 3" (DN80): 2800 L/min,
4" (DN100): 7000 L/min, 6" (DN150): 14000 L/min, 8" (DN200): 23000 L/min. Actual flow depends on configurations.
Service Life: Premium units support over 500,000 open-close cycles for long service life.
Connection Types: Thread and flange connections. Thread options: BSP, NPT (female & male); flanges comply with ANSI, EN, TW, TTMA, JIS standards for hose assemblies and tank equipment mounting.
Operation Features: Single-handle operation integrates locking, sealing and disconnecting. Built-in mechanical interlock prevents accidental opening to ensure operation safety.
Product Name | Dry Joint | Application | Fuel Tanker Accessaries | |||
Model Number | DSSY-503-LPG | Kind | Fluid Safety Components | |||
Material | Stainless Steel 316L | Nominal pressure | 1.6MPa | |||
Nominal Size | 2”/3”/4” | Working Temperature | -40℃~+200℃ | |||
Brand Name | DESEINOR | Sealing material | Perfluoroether/polytetrafluoroethylene | |||
Place of Origin | China | Max emergency flow | Maximum emergency flow | |||
Packing | Carton Box | Installation method | Flange connection/Thread | |||
2”Packing Size | ||||||
Female | Male | |||||
L*W*H(CM) | 24.5*2.5*15.5CM | L*W*H(CM) | 10**10*11CM | |||
QTY/CTN | 1PCS/Box | QTY/CTN | 1PCS/Box | |||
N.W(KGS) | 4.9KGS | N.W(KGS) | 1.9KGS | |||
Body materials: The standard body is built with 316 stainless steel, with selected models made from ASTM A351 CF8M cast 316 stainless steel. Customization options of aluminum alloy, brass, Hastelloy, titanium alloy, PVDF, and PEEK versions are available for special operating conditions.
Configurable seal materials: Available sealing materials include PTFE, FKM, NBR, EPDM, and FFKM to suit different media and temperature requirements.
Vacuum Performance: Selected configurations have been tested at vacuum levels up to 711 mmHg in any orientation, demonstrating leak-proof performance.
Long operating life: The dry disconnect couplers are designed for more than 500,000 opening and closing cycles.
Connection options: Threaded and flanged versions are available. Thread options include BSP and NPT in male or female configurations, while flange options can be supplied to ANSI, EN, TW, TTMA, and JIS standards for hose assemblies and tank equipment.
Safe, simple operation: Most configurations use a single-handle mechanism that combines locking, sealing, and disconnection. Additionally, the coupler is equipped with a mechanical interlock to prevent accidental opening during operation.
