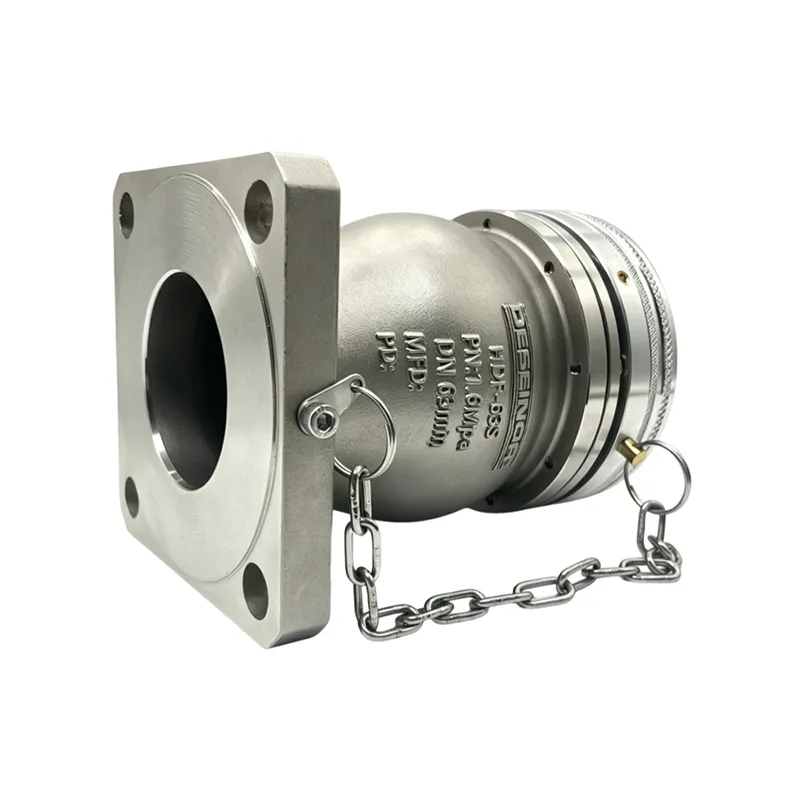

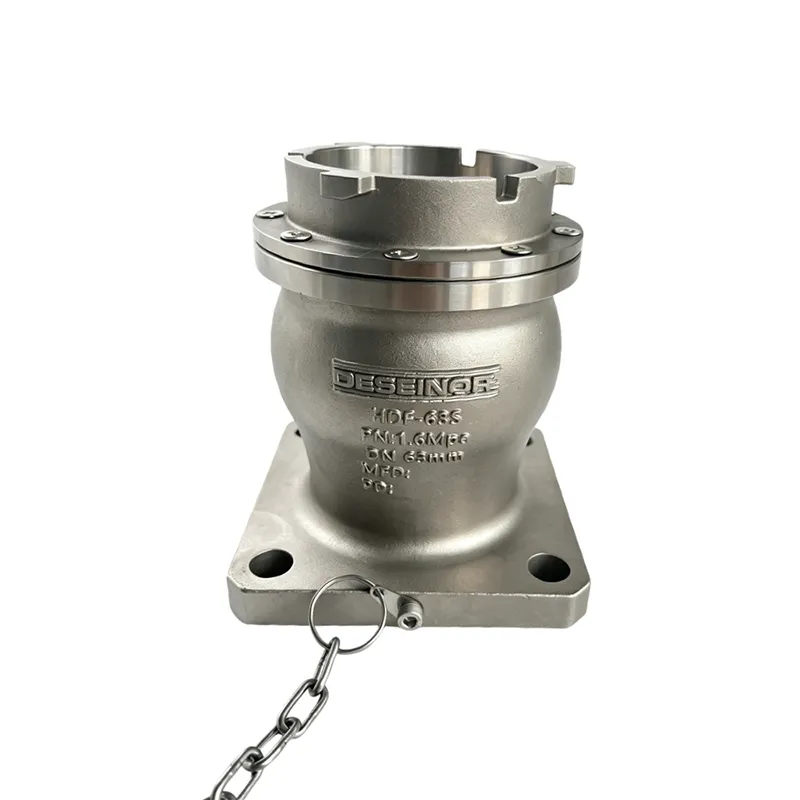

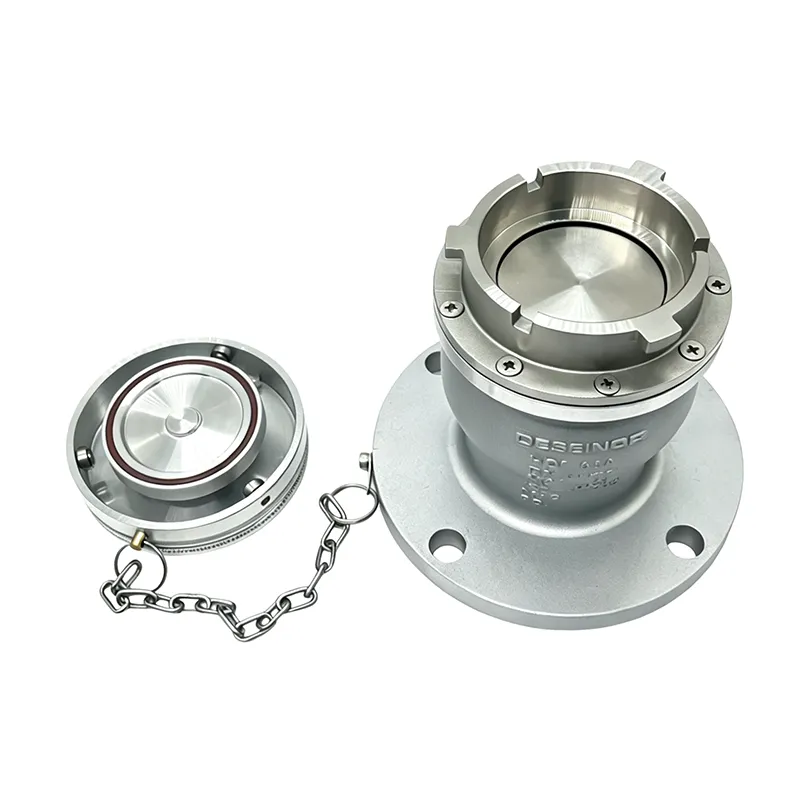

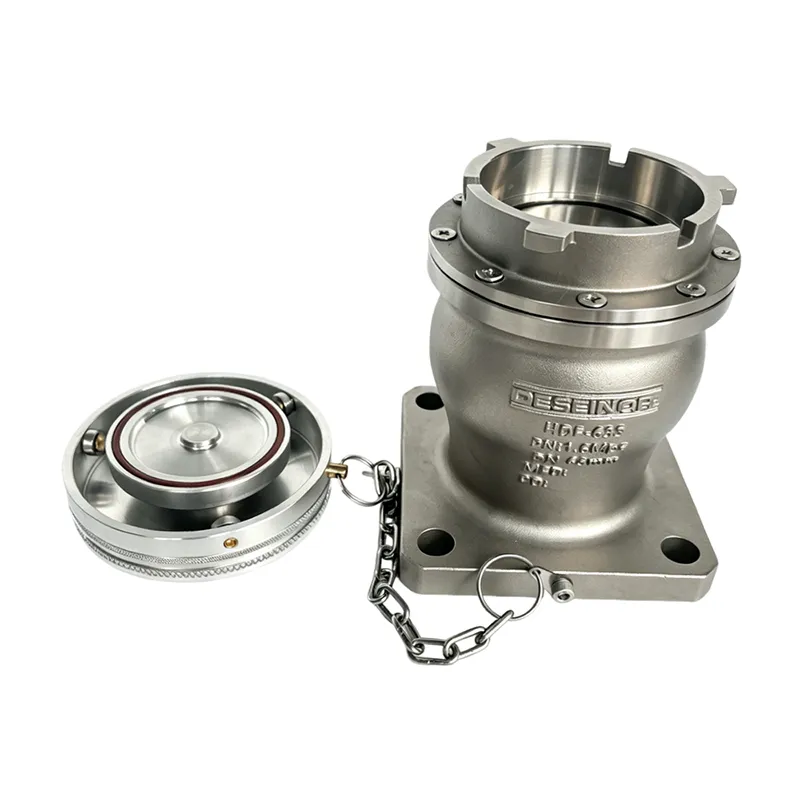

DESEINOR aviation dry disconnect coupling features a stainless steel body, dry-break zero-leak design, flange or bolted mounting, quick bayonet and ADR-compliant safety.
Product Name | Aircraft Dry Coupling | Application | Industrial Coupling |
Model Number | HDF-63S | temperature range | -40℃~200℃ |
Material | Stainless Steel | Size | DN80 |
Working Pressure | 1.6 MPa | Sealing Material | PTFE |
Brand Name | DESEINOR | Place of Origin | China |
Packing Size | |||
L*W*H(CM) | 17*17*16 | ||
QTY/CTN | 1 PCS/CTN | ||
N.W(KGS) | 4.1KGS | ||

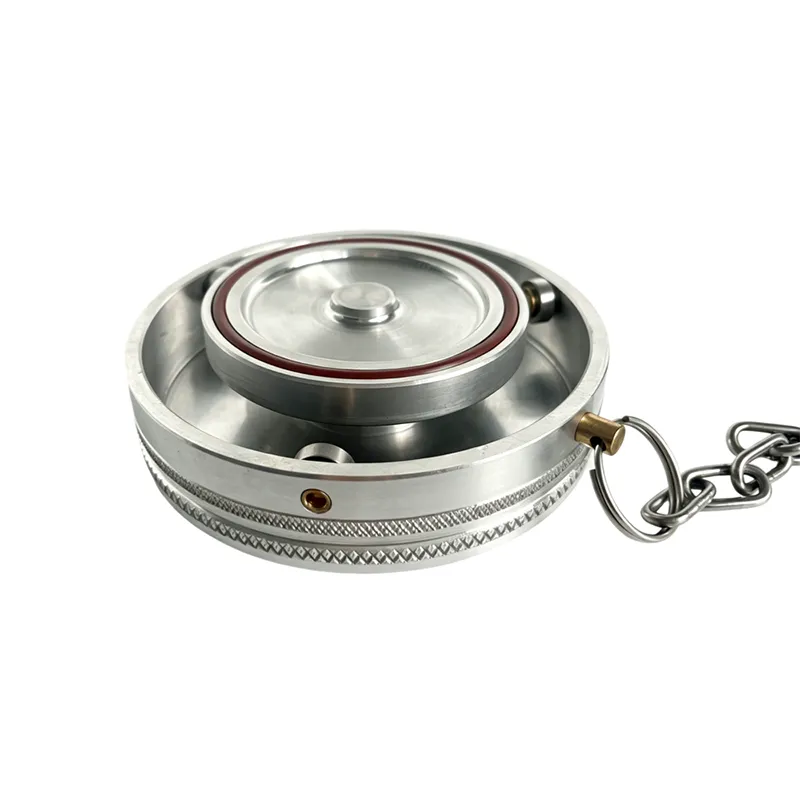

The flange end of the product can be welded or bolted directly to the tank body. The other end features a dry quick bayonet structure, fitted with a chain-attached dust protection cap. It enables fast connection during loading and unloading operations and automatic sealing the moment it is disconnected. Widely applicable for gasoline, diesel, kerosene and various liquid chemical media, it is a standard safety fluid fitting for European and German standard tank trucks.
