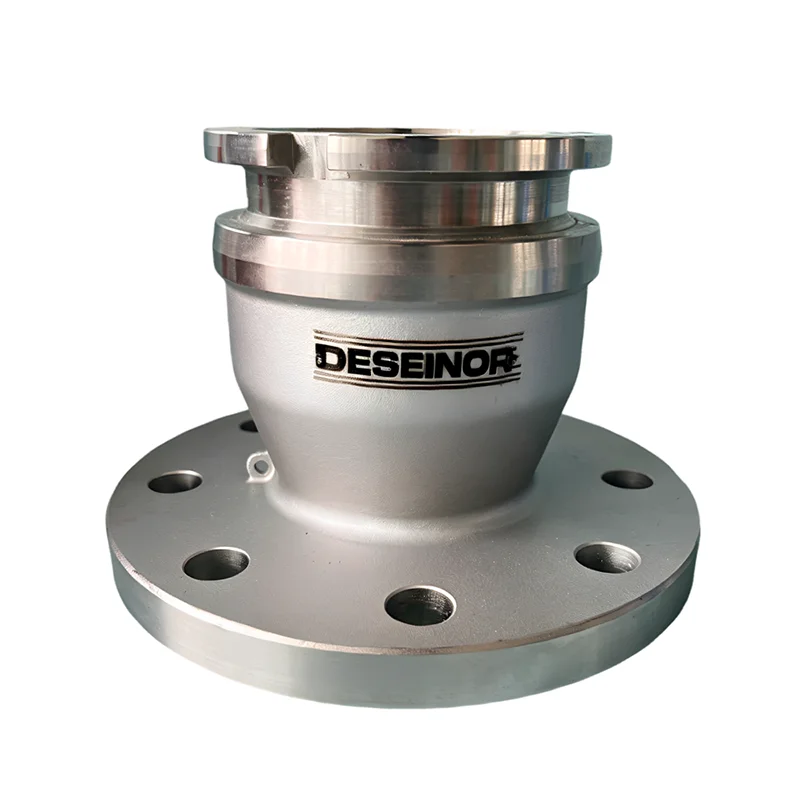

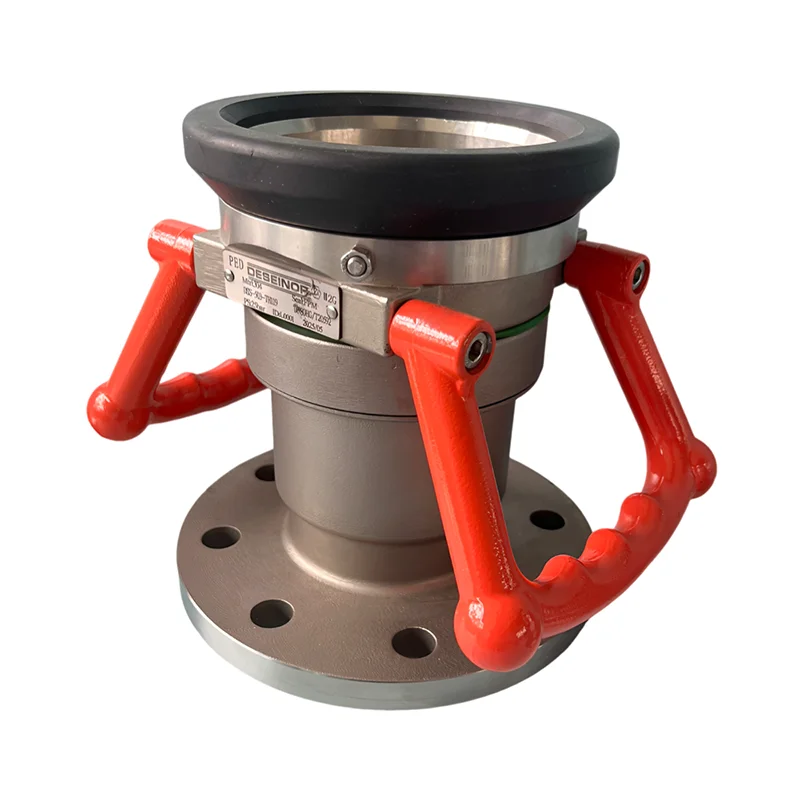

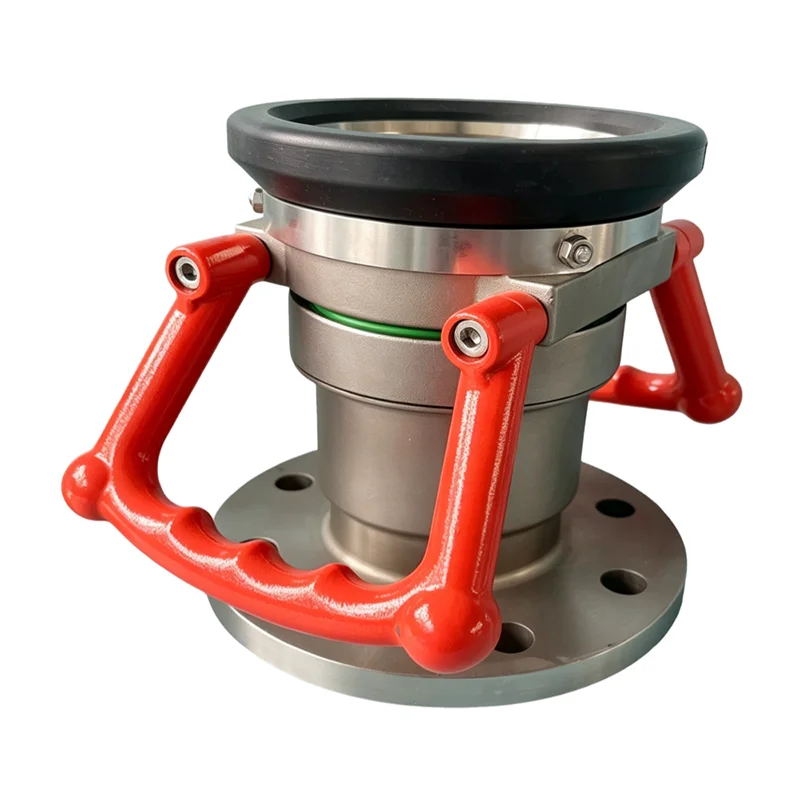

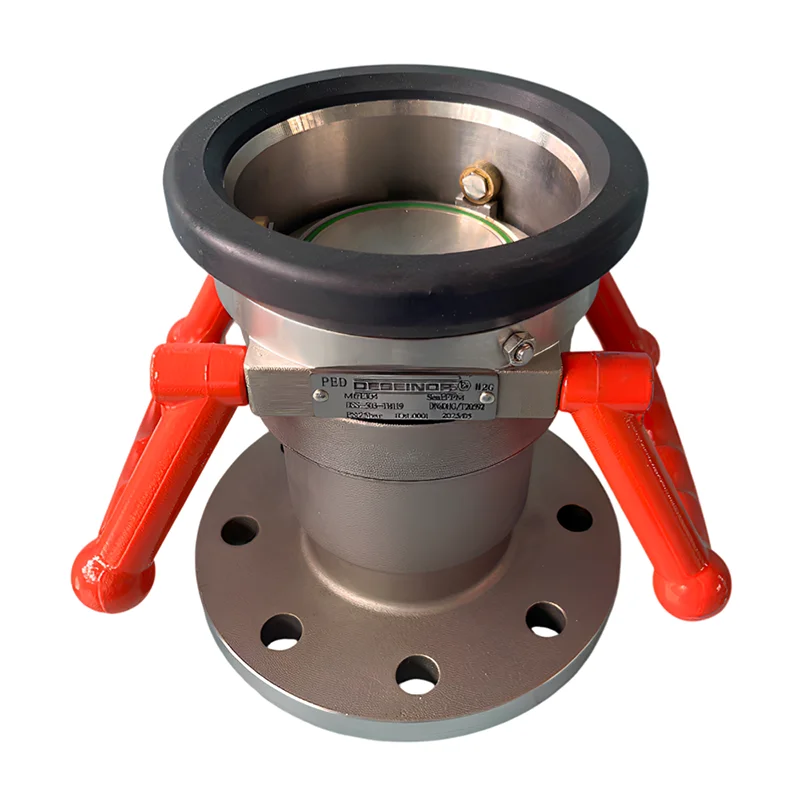

DSSY-503-TH119C/E Dry Joint Dry Disconnect Coupling

Product Overview

DSSY-503-TH119C/E dry joint dry disconnect coupling is a professional hose connector featuring automatic double-sided sealing during disconnection between hoses and fixed pipeline ends. It supports fast leak-free connection and disconnection for liquid & gas pipelines, greatly reducing medium waste and contamination hazards, widely used in chemical, petroleum, LPG filling systems. It upgrades work efficiency and lessens environmental pollution by avoiding liquid spillage.

Technical Parameters

1. Dimension Specifications Standard sizes: 2", 2.5", 3", 4", 6", 8", fit various pipeline systems.

2. Construction Materials

• Main Body: Standard ASTM A351 CF8M 316 stainless steel with anti-corrosion performance; optional aluminum alloy, brass, Hastelloy, titanium, PVDF, PEEK for special working conditions

• Seal Materials: PTFE, FKM/Viton, NBR, EPDM, FFKM for diverse media and temperature ranges

3. Performance Indicators

• Working Pressure: 10–25 bar with 5x safety factor; 1" model up to 210 psi

• Working Temperature: PTFE seal -7℃~110℃, FKM seal up to 149℃

• Vacuum Resistance: 20 in Hg full-position leak-free

• Flow Capacity: DN25(250L/min) to DN200(23000L/min)

• Service Lifespan: Over 500,000 connect-disconnect cycles

4. Connection & Operation

• Connection Types: BSP/NPT internal & external thread; ANSI/EN/TW/TTMA/JIS standard flanges

• Operation Design: Single-handle control with mechanical interlock to avoid accidental separation
