DSSY-503-TH70C/E Dry Joint

Product Overview

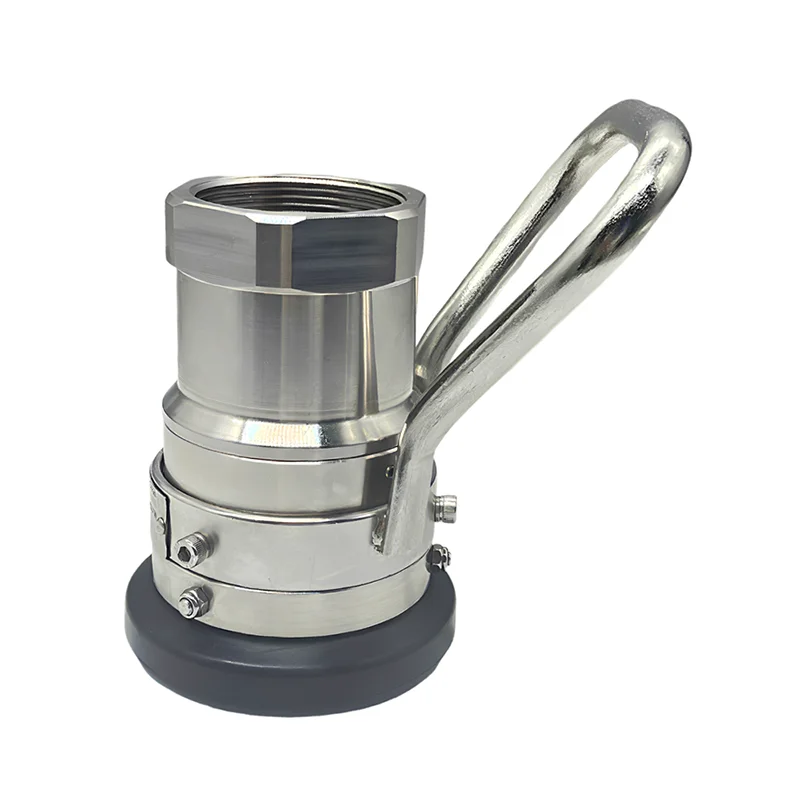

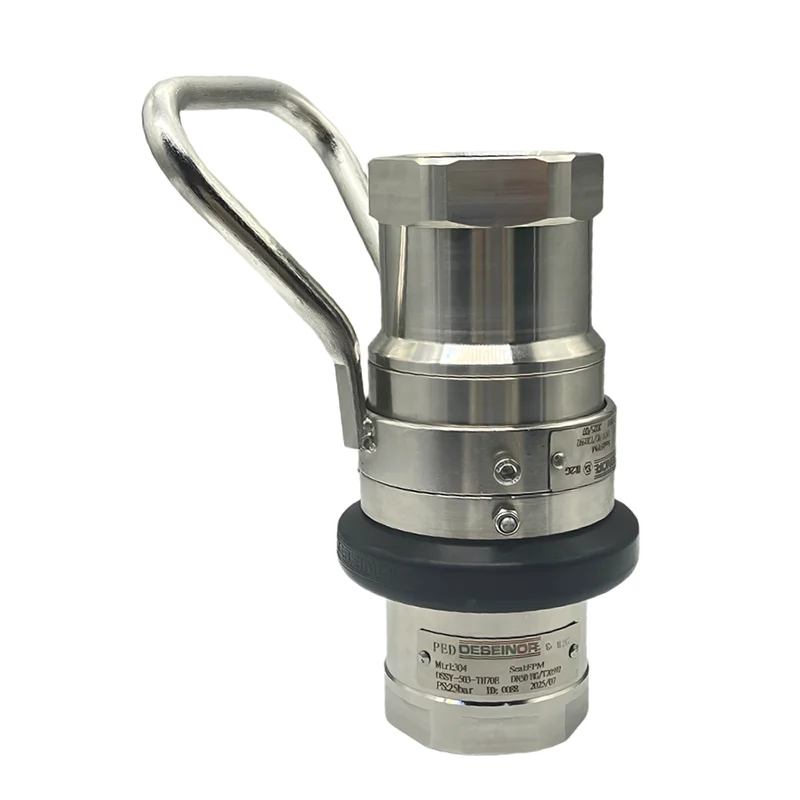

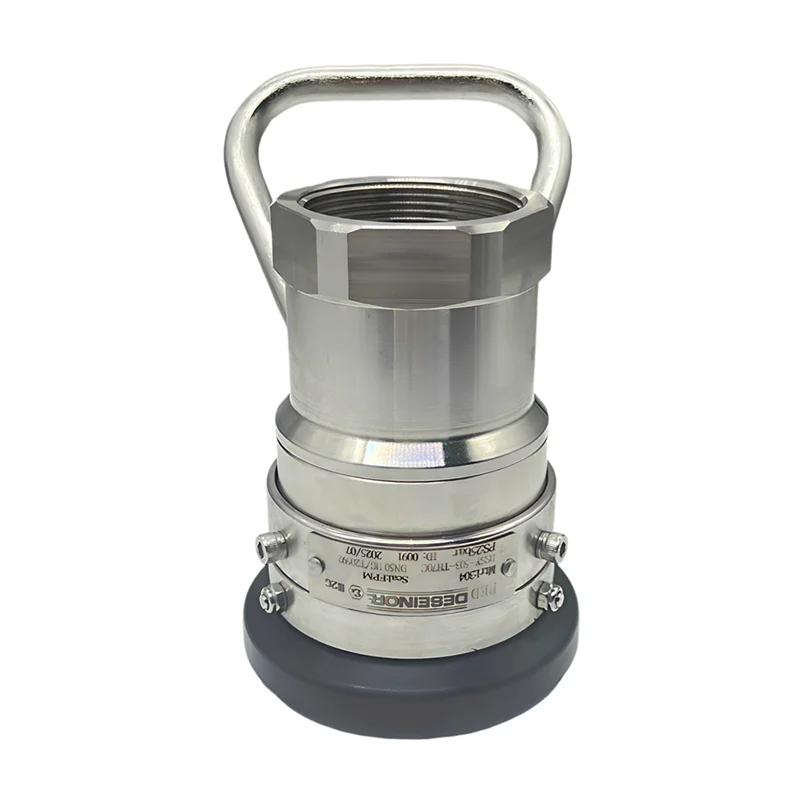

DESEINOR Dry Disconnect Coupling

Product Overview

DESEINOR Dry Disconnect Coupling is a professional hose connector with automatic double-sided sealing when disconnected between hoses and fixed pipelines. It enables fast leak-free connection & disconnection for liquid and gas pipelines, drastically cutting fluid waste and pollution risks, widely used in chemical, petroleum, LPG filling systems. Boost operation efficiency and lower environmental hazards by avoiding spills and medium contamination.

Technical Parameters

1. Dimension Specifications Sizes available: 2", 2.5", 3", 4", 6", 8", compatible with diverse pipeline systems.

2. Material

• Main Body: Standard 316 stainless steel (ASTM A351 CF8M); optional aluminum alloy, brass, Hastelloy, titanium, PVDF, PEEK for special conditions

• Seal Material: PTFE, FKM/Viton, NBR, EPDM, FFKM, matching various fluids & temperatures

3. Performance Parameters

• Working Pressure: 10–25 bar, 5x safety factor; 1" model up to 210 psi

• Working Temperature: -7℃~+110℃ (PTFE); FKM up to 149℃

• Vacuum Resistance: 20 in Hg full-position leak-free

• Flow Rate: DN25:250L/min; DN50:900L/min; DN80:2800L/min; DN100:7000L/min; DN150:14000L/min; DN200:23000L/min

• Service Life: Over 500,000 connect-disconnect cycles

4. Connection & Operation

• Connection: BSP/NPT thread (FNPT/MNPT), ANSI/EN/TW/TTMA/JIS flanges

• Operation: Single-handle control with mechanical interlock to avoid accidental separation
