DESEINOR aircraft dry coupling has an aluminum alloy body, dry-break design, flange or bolted mounting, quick bayonet, dust cap and ADR-compliant safety.
Aircraft Dry Coupling is a safety fitting specially designed for aviation fluid loading and unloading. Brand: DESEINOR. It features an aluminum alloy body and dry-break structure, with almost no medium leakage upon disconnection, effectively preventing spills of oil and chemical liquids and complying with ADR dangerous goods transport regulations.

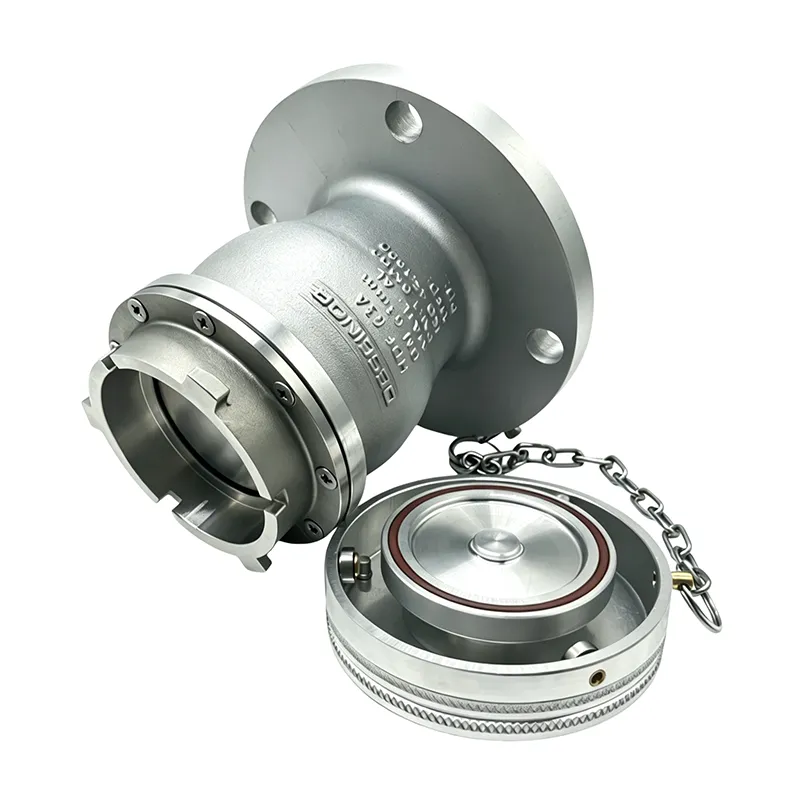

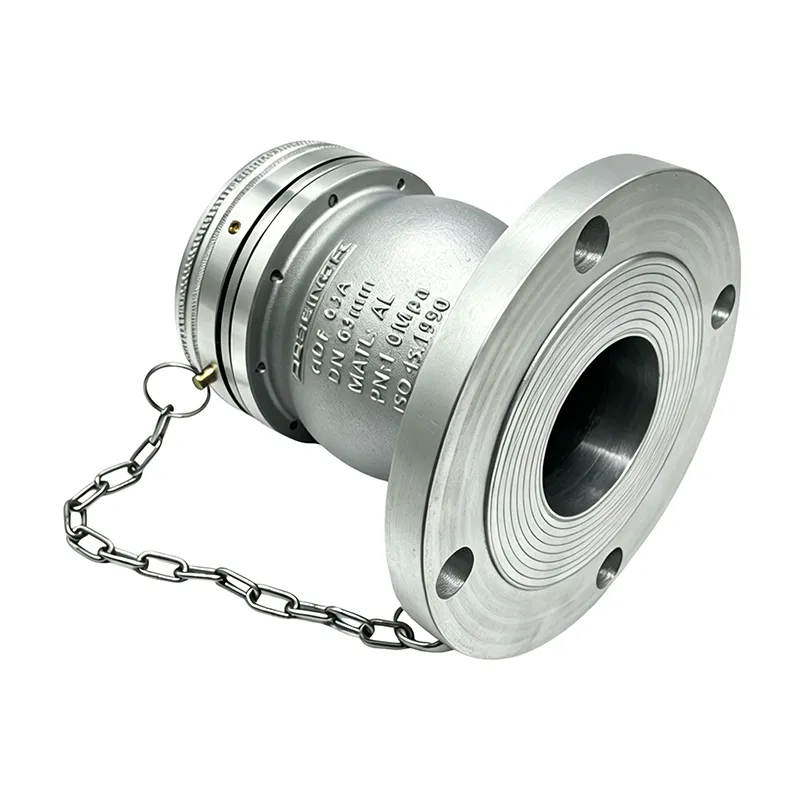

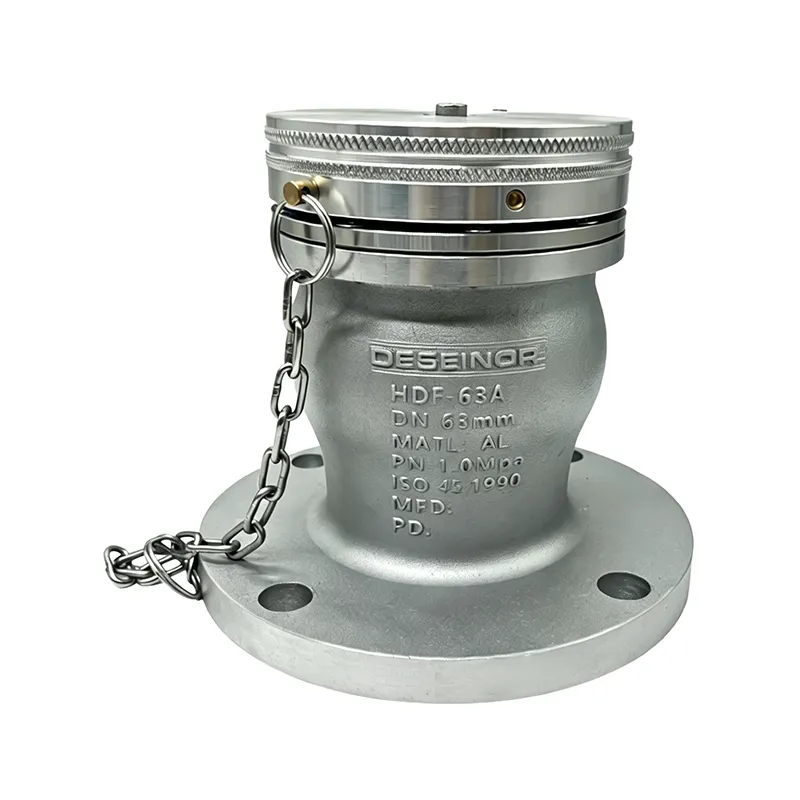

The flange end can be welded or bolted directly to the tank body, while the other end adopts a dry quick-connect bayonet, equipped with a chain-attached dust protection cap. It enables rapid connection during loading/unloading operations and automatic sealing upon disconnection. Widely used for transferring gasoline, diesel, kerosene and various liquid chemical media, it is a standard safety fluid fitting for European/German standard tank trucks.
Core Advantages:
Dry-break spill-free design to eliminate liquid splashing and vapor emission
Quick clamp locking for high loading & unloading efficiency
Integrally cast flange for stable installation

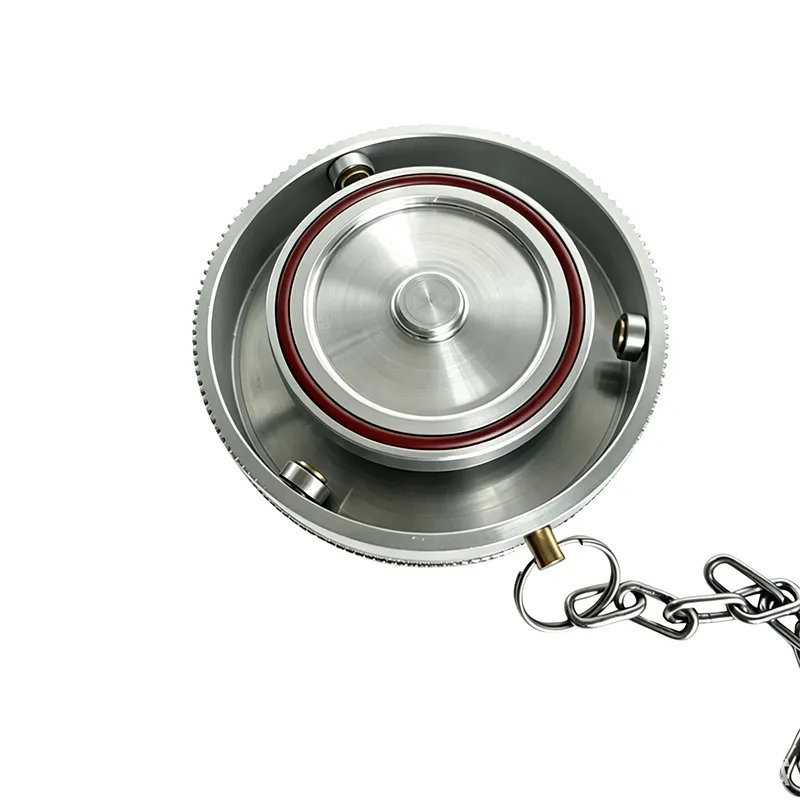

Built-in dust protection cap to avoid impurities entering the pipeline
Oil and chemical resistant seals compatible with multiple media
Meets safety requirements for dangerous goods tank trucks
Product Name | Aircraft Dry Coupling | Application | Industrial Coupling |
Model Number | HDF-63A | temperature range | -40℃~70℃ |
Material | Aluminum Alloy | Size | DN80 |
Working Pressure | 1.6 MPa | Sealing Material | FFKM |
Brand Name | DESEINOR | Place of Origin | China |
Packing Size | |||
L*W*H(CM) | 17*17*16 | ||
QTY/CTN | 1 PCS/CTN | ||
N.W(KGS) | 2.8KGS | ||
